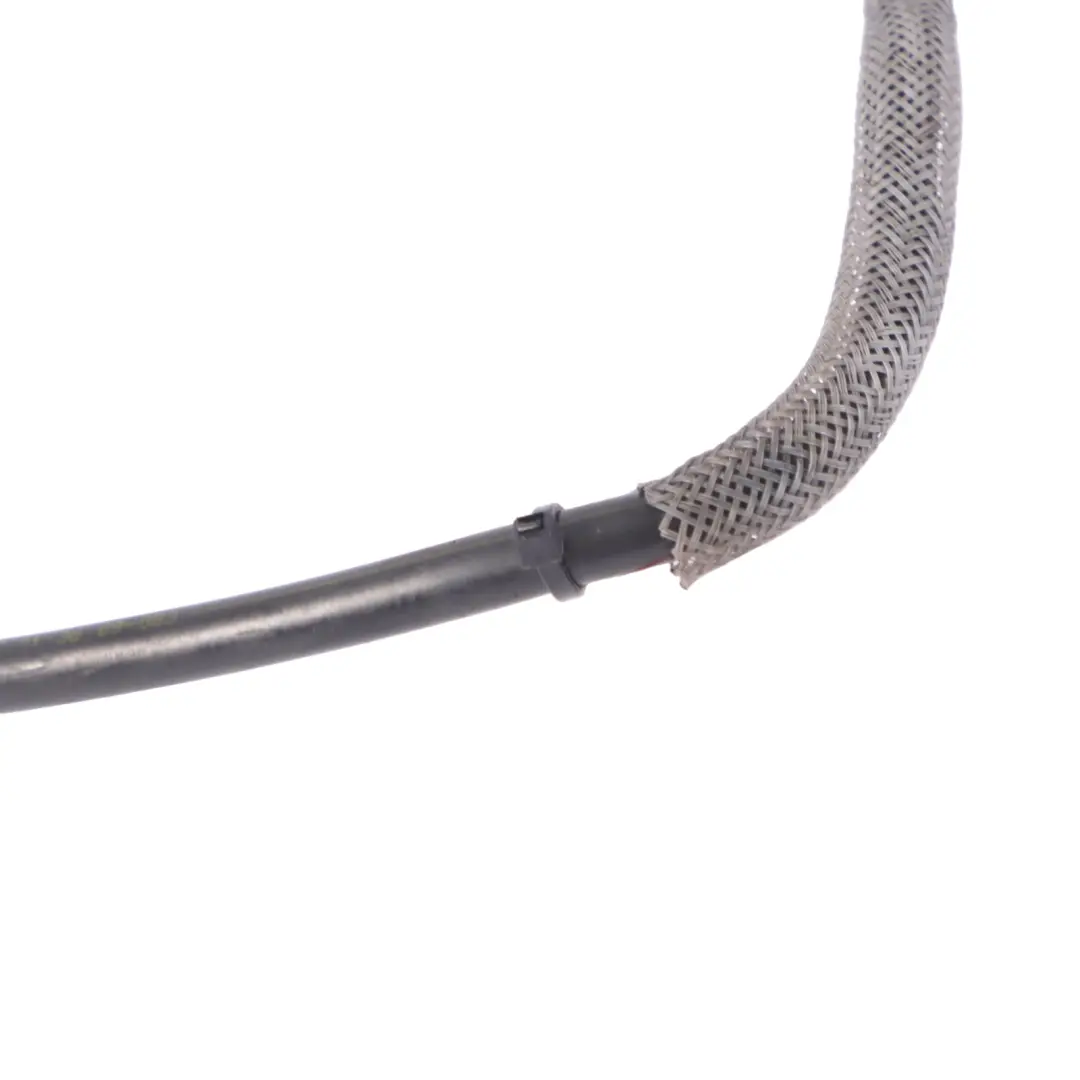

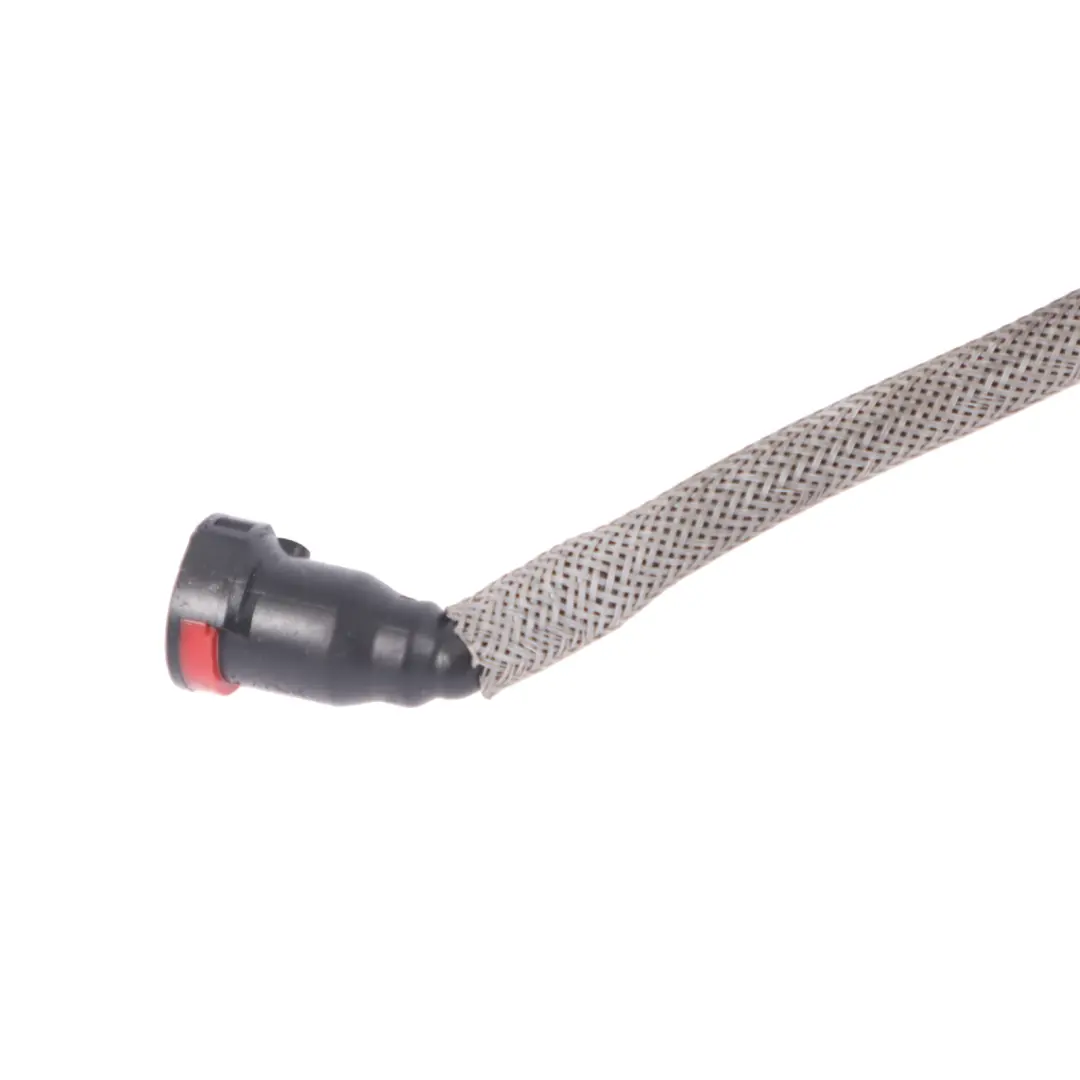

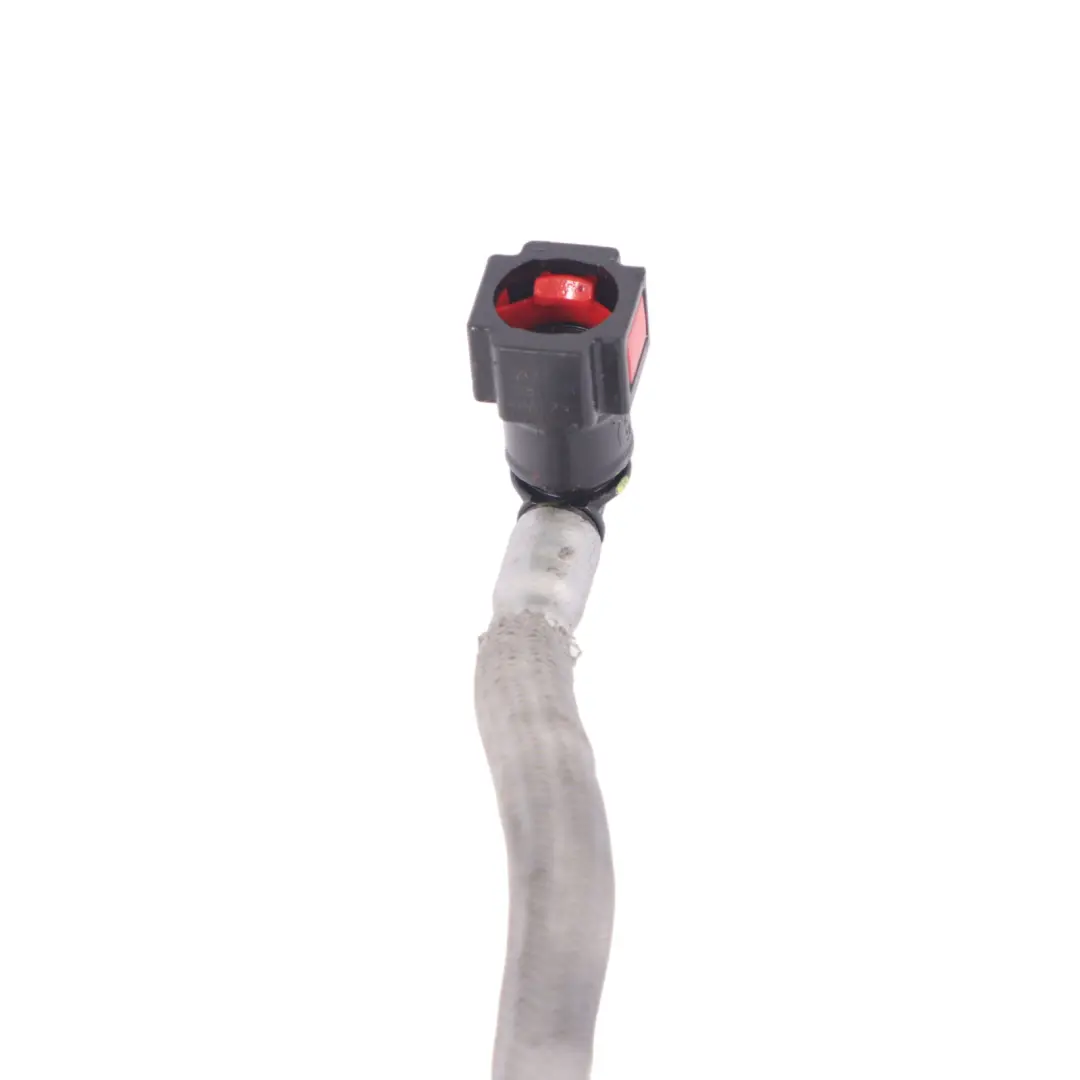

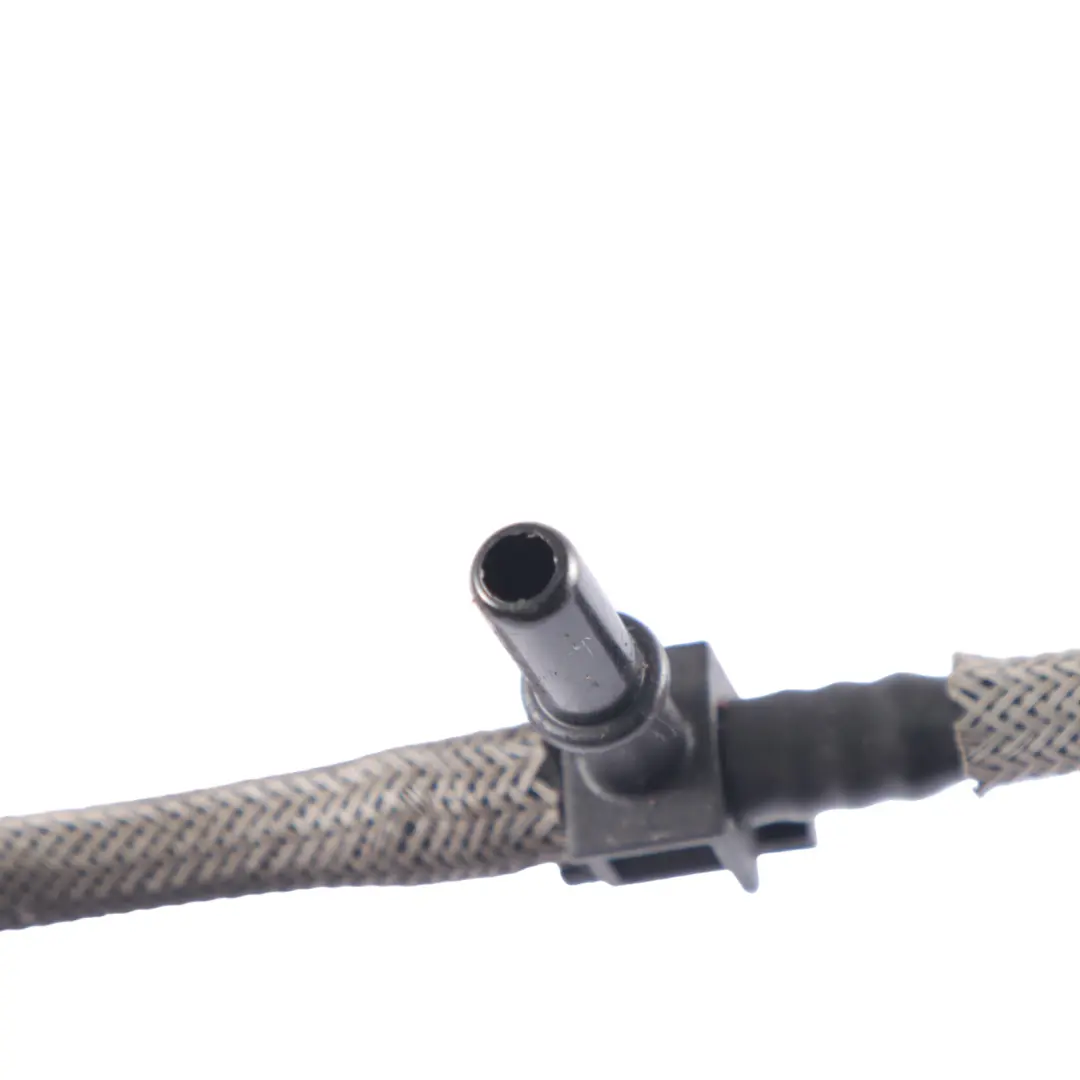

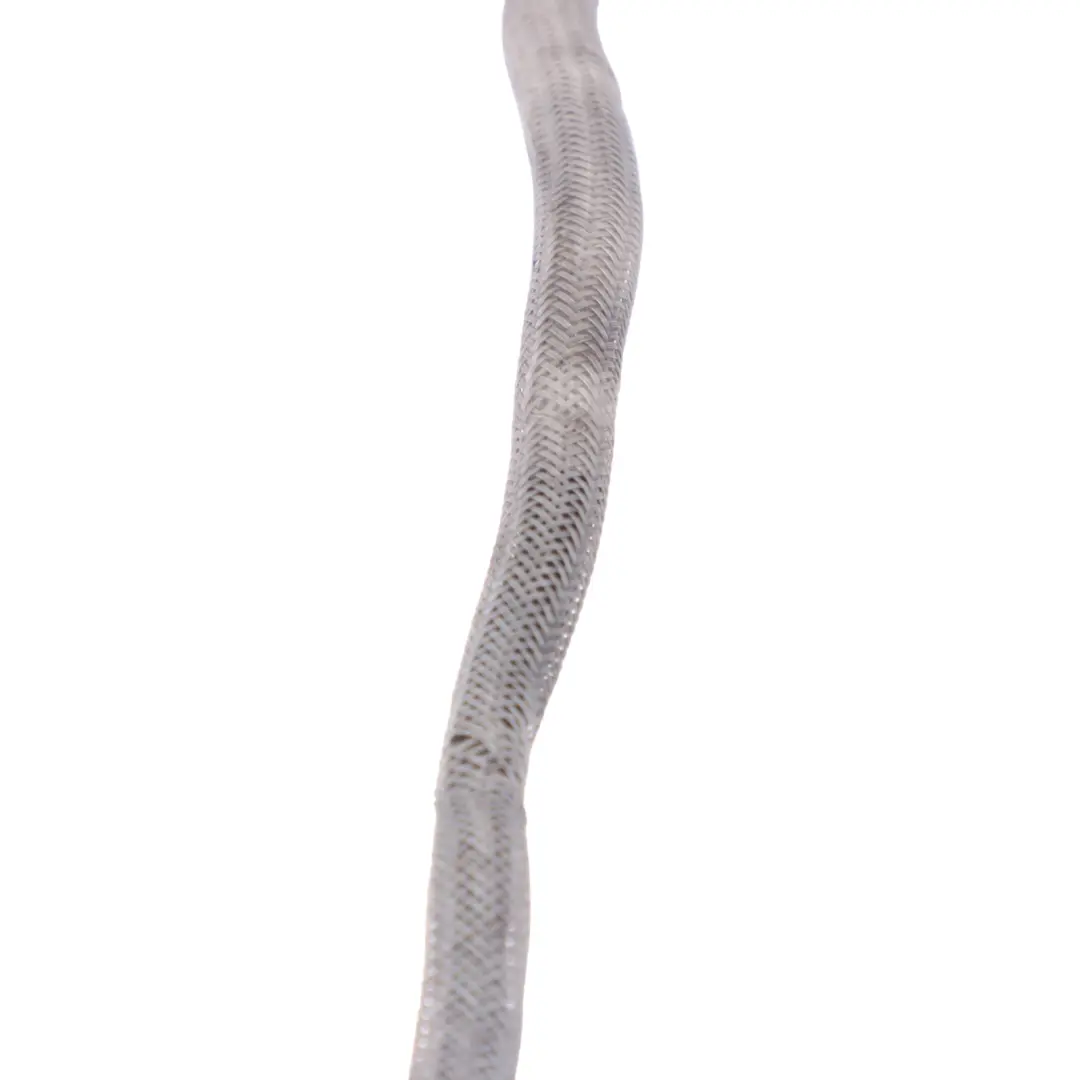

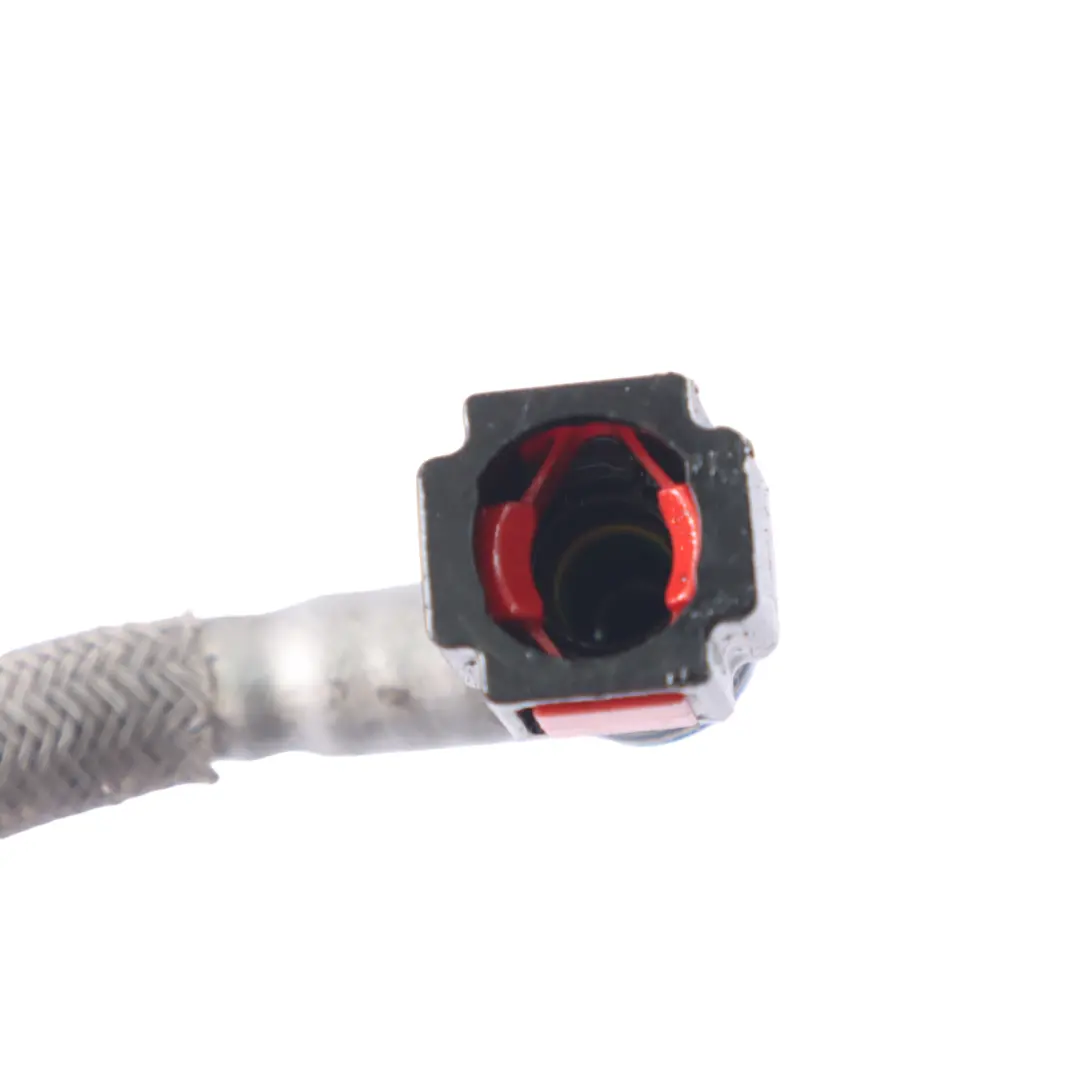

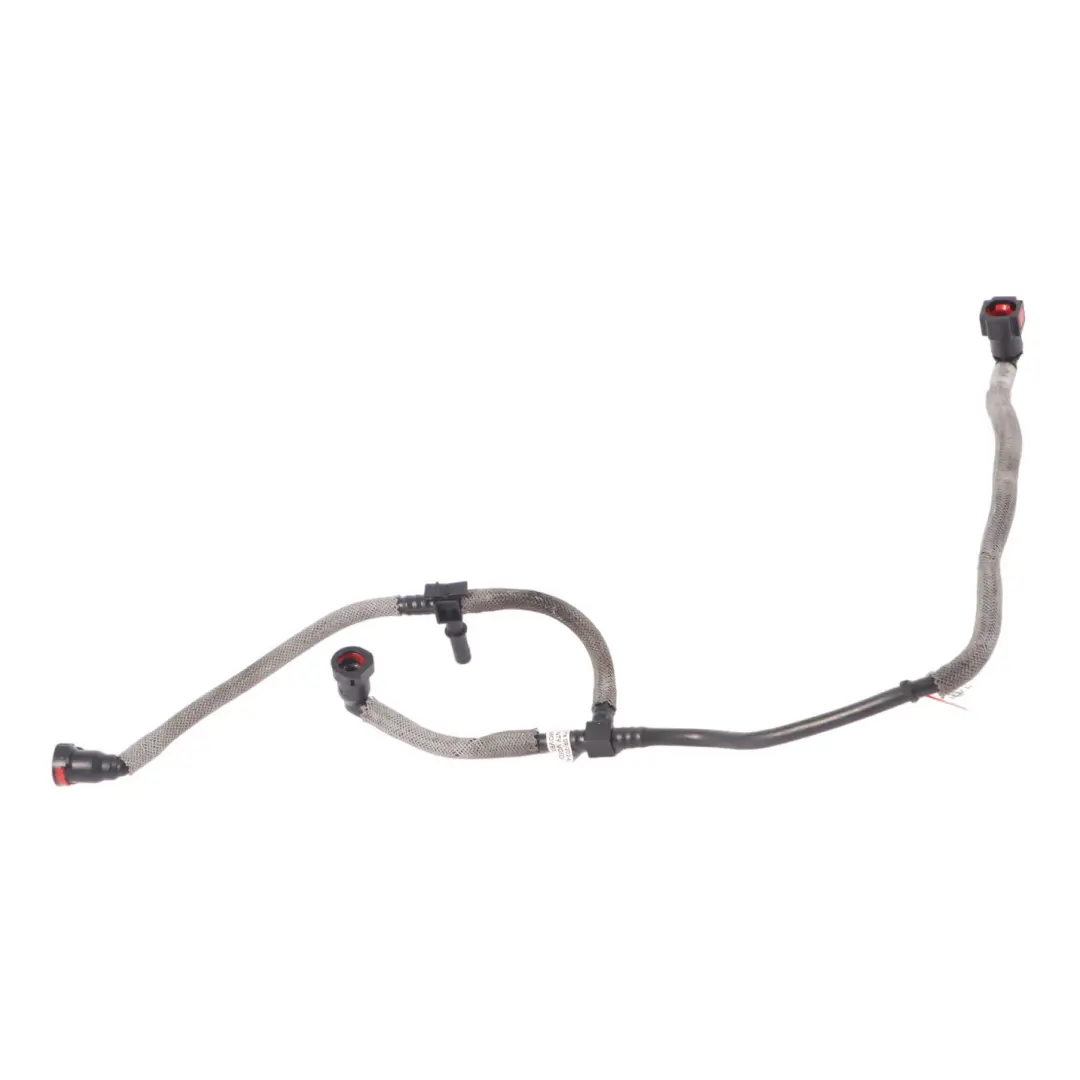

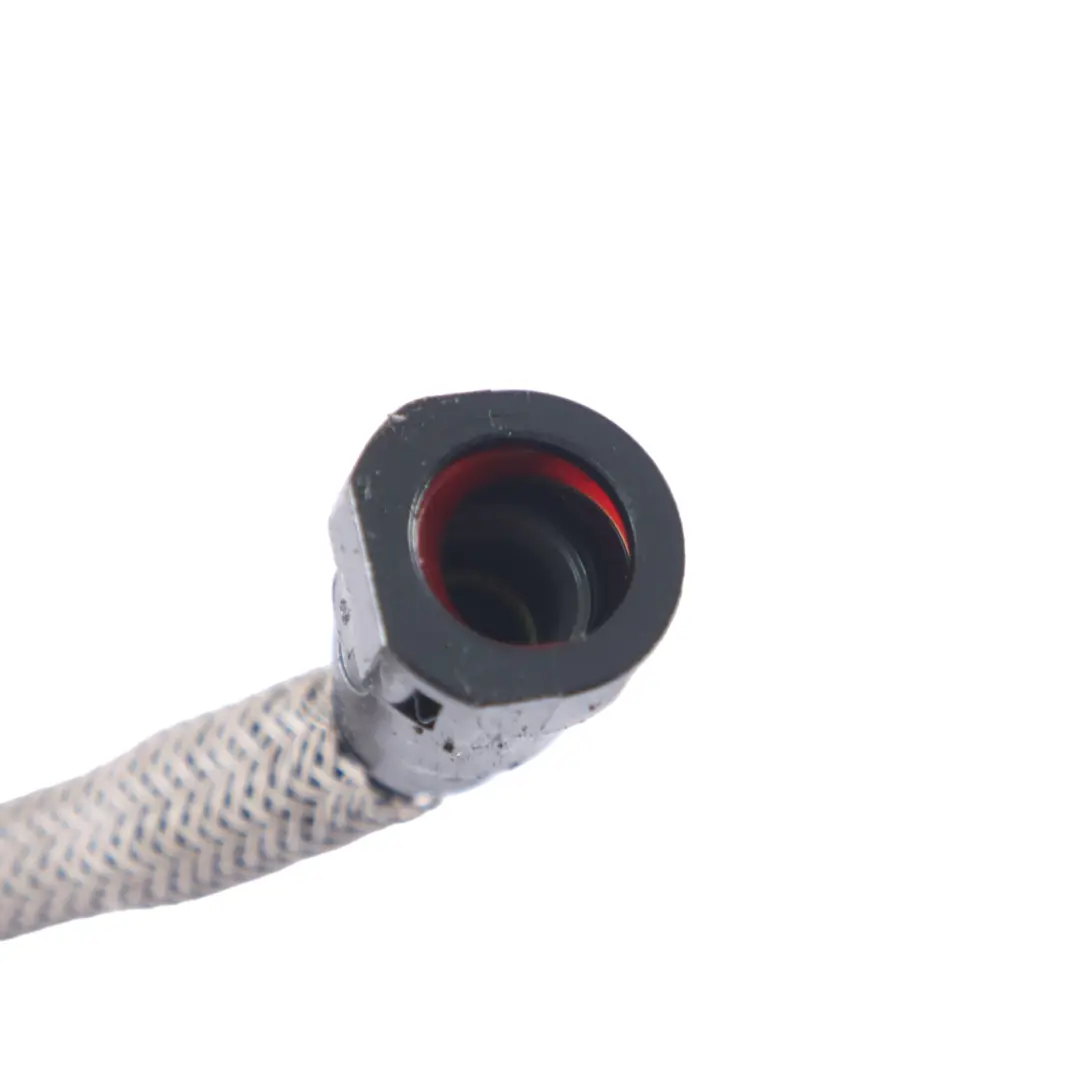

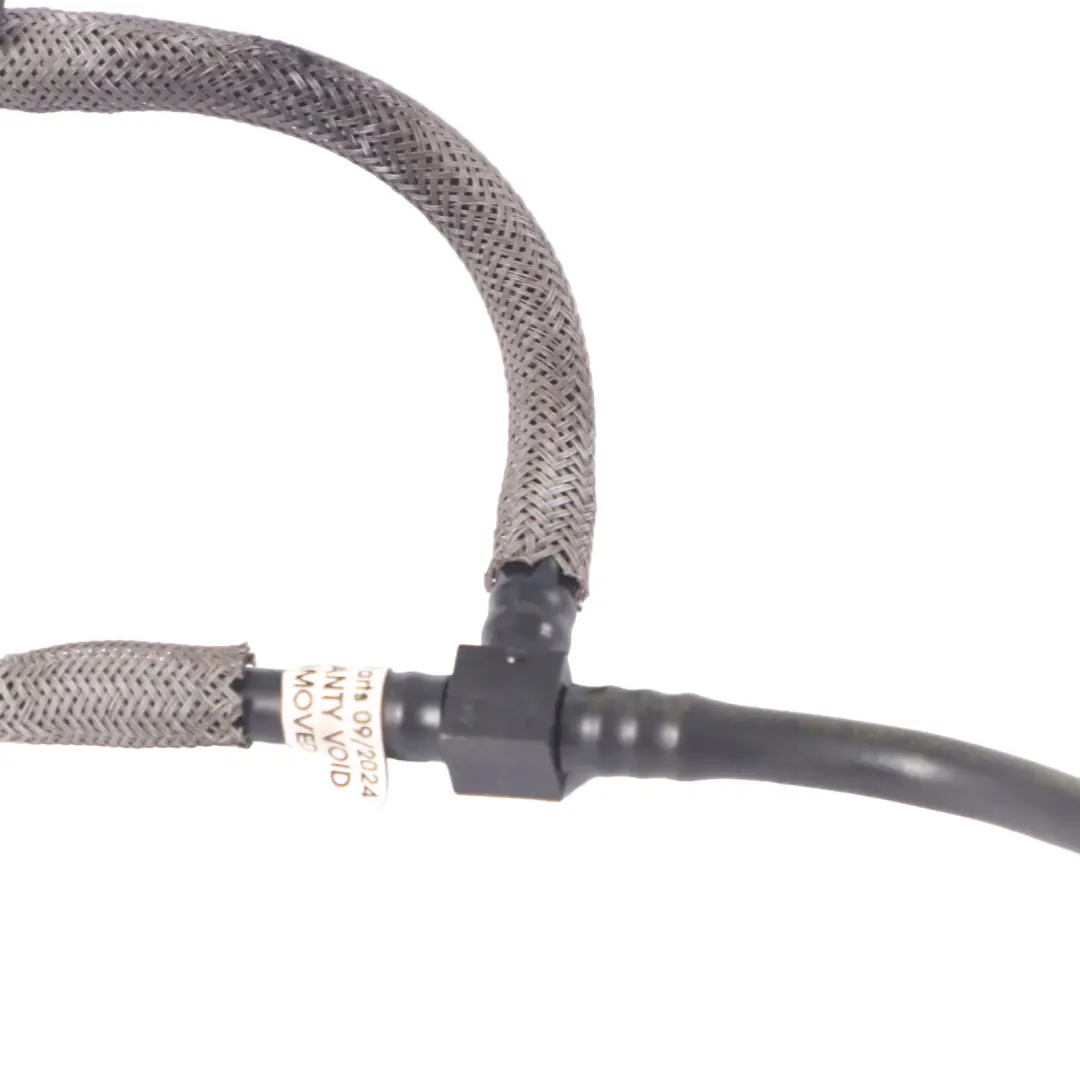

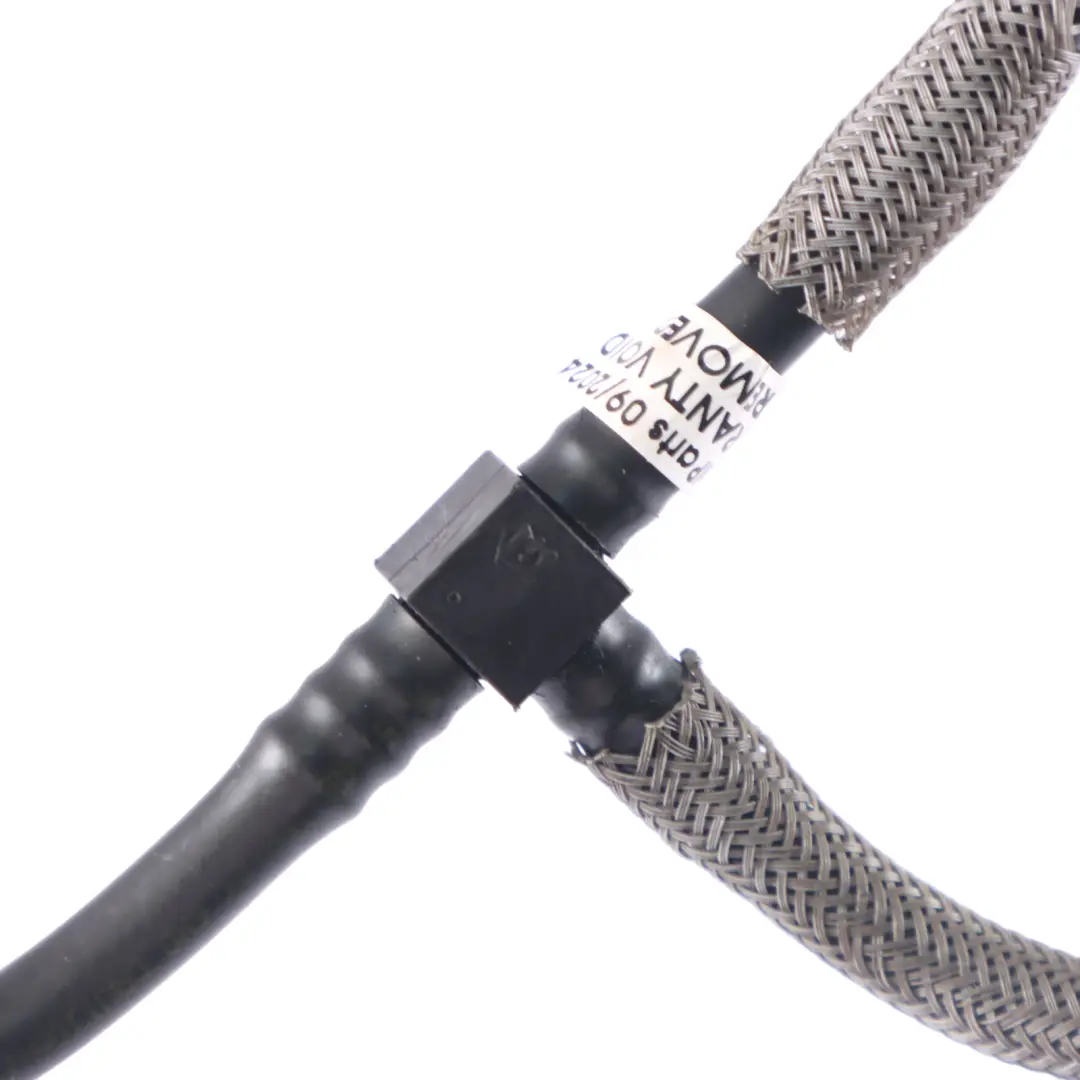

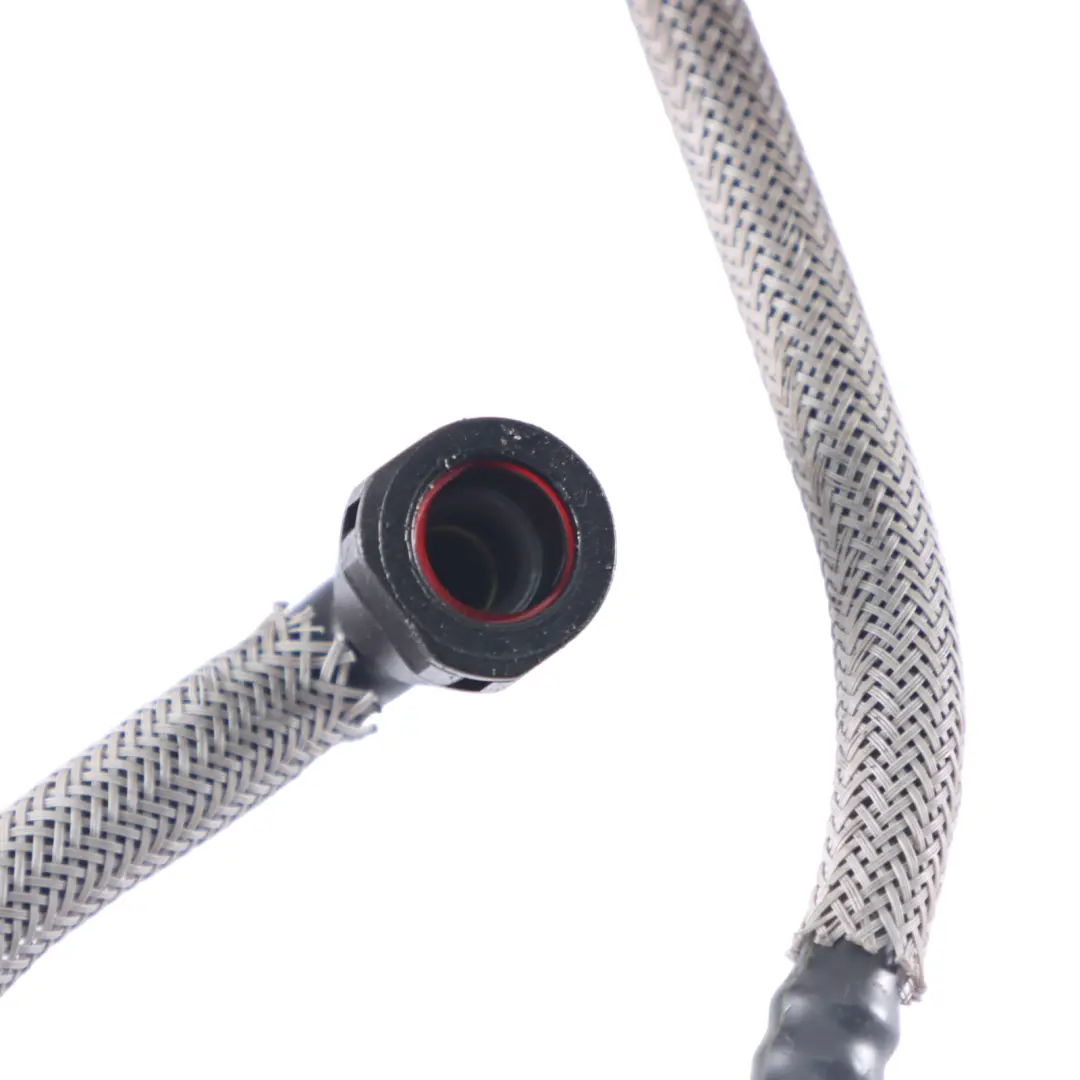

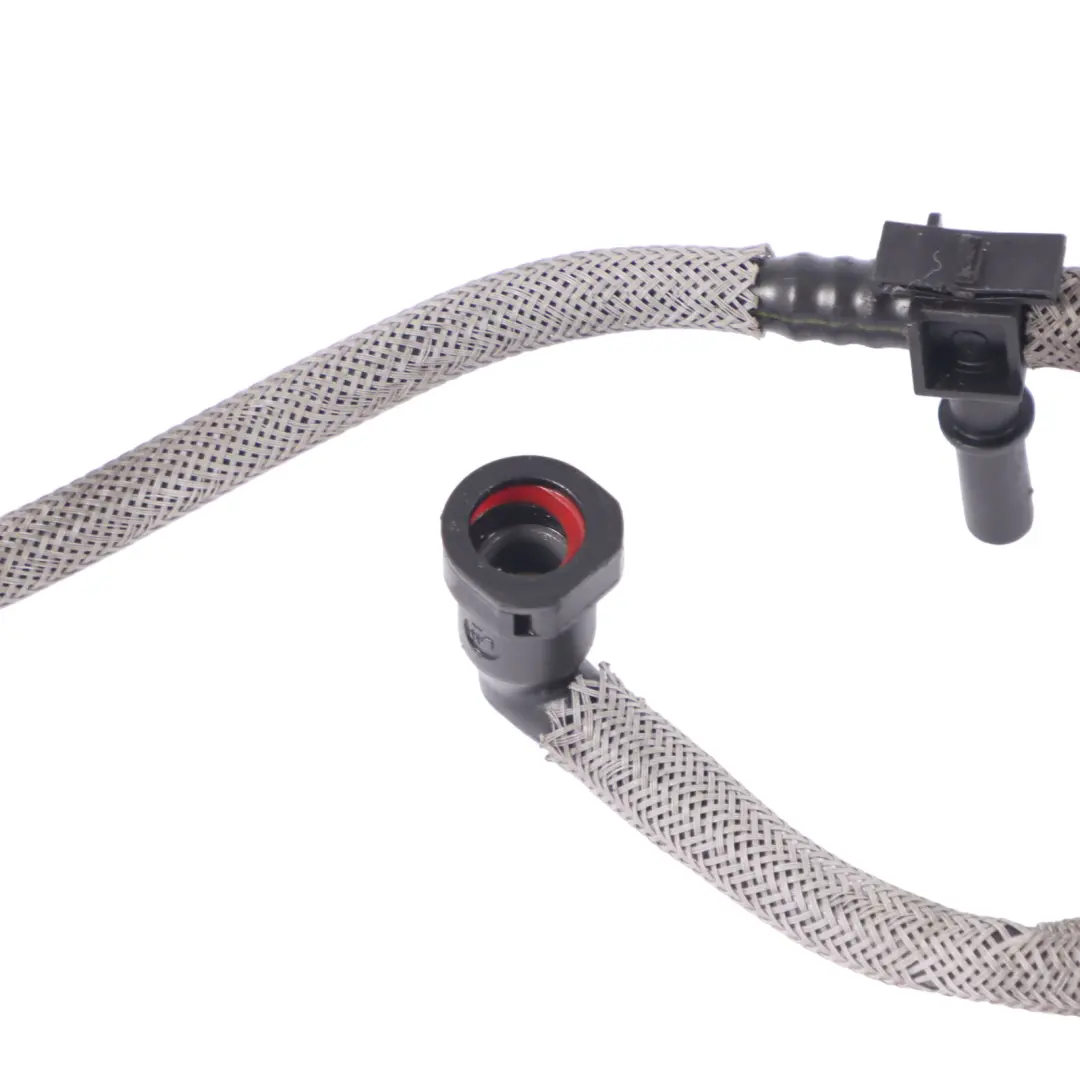

Jaguar XF250 3.0 AJV6D Diesel Fuel Injector Pipe Line Hose 9X2Q9K151AB

Jaguar XF250 3.0 AJV6D Fuel Return Line is a precisely manufactured component from the Hoses, Pipes, and Tubes group, designed for the diesel engine fuel system. It ensures controlled return of excess diesel fuel from the injectors, stabilizing the operation of the 3.0 Diesel AJV6D unit and supporting even fuel system pressure.

Specifications and technical data

• SKU: 9X2Q9K151AB
• Mark: Jaguar
• Condition: Used
• OEM Part Number: 9X2Q9K151AB
• Substitutable numbers: 9X2Q9K151AB, 9 X2Q 9K1 51 AB
• Fuel type: Diesel
• Category: Hoses, Lines & Pipes

Function of the Return Line in the 3.0 AJV6D Diesel Engine

The fuel return line in a diesel engine is responsible for safely channeling excess fuel from the injectors to the return system. In the 3.0 AJV6D unit, this is crucial for:

• maintaining stable pressure in the injector fuel rail,
• limiting overheating of the injection system components,
• ensuring uniform operation of all cylinders,
• reducing the risk of fuel system air ingress.

A well-chosen return line helps to mitigate common symptoms of diesel fuel system wear, such as rough idling, difficulty starting a warm engine, or power loss under load.

Construction and Fitment for Jaguar XF250 3.0 Diesel

The fuel return line used in the Jaguar XF250 3.0 AJV6D is designed specifically for the injection system of this unit. Proper routing of the line relative to the cylinder head, injectors, and other engine accessories minimizes the risk of chafing, leaks, and improper positioning during engine operation.

As a part from the Hoses, Pipes, and Tubes category, this item is structurally prepared to operate in the high-temperature and vibration environment typical of diesel engines, contributing to the long-term sealing of the return system.

Benefits of Using an Original Return Line

Using a fuel return line dedicated to the 3.0 AJV6D engine in the Jaguar XF250 allows for the preservation of the fuel system's original operating parameters. In practice, this means:

• better repeatability of fuel doses delivered by the injectors,
• more stable operation of the diesel unit,
• reduced risk of fuel leaks in the cylinder head area,
• easier diagnosis of potential injection system faults.

For diesel engine users, it is particularly important that a functional return line supports the correct operating conditions for the injectors, which can slow down their wear rate and help maintain the 3.0 unit in good operational condition.

Product Characteristics and Practical Application

The offered fuel return line is a component intended for Diesel fuel systems compatible with the AJV6D engine configuration in the Jaguar XF250. As a used part, it comes from disassembly and is a solution for users seeking a technically matched component for their existing injection system, without the need for replacements of uncertain fitment.

When replacing the return line, it is recommended to simultaneously check the condition of the injectors, seals, and other components of the return system. For 3.0 V6 diesel engines, a comprehensive approach to refreshing the fuel system is worth considering – more on the impact of injectors and turbocharger components on the operation of 3.0 V6 CDI units can be found in the article Second Life for the Mercedes OM642 Engine – How Injectors and Turbo Restore Power to the 3.0 V6 CDI, which effectively illustrates the importance of a properly functioning fuel system in modern diesels.

Complementary Jaguar Fuel System Components

If you are planning a comprehensive repair or upgrade of the engine area in your Jaguar and need other parts from the same group, such as flexible fuel lines, return hoses, or supply pipes, check the available parts in the Jaguar Hoses, Pipes, and Tubes category.

A well-matched set of fuel lines within a single vehicle facilitates maintaining the technical consistency of the entire system, as well as simplifying subsequent diagnostics and servicing, which is particularly important in advanced diesel units used in the XF250 model.
