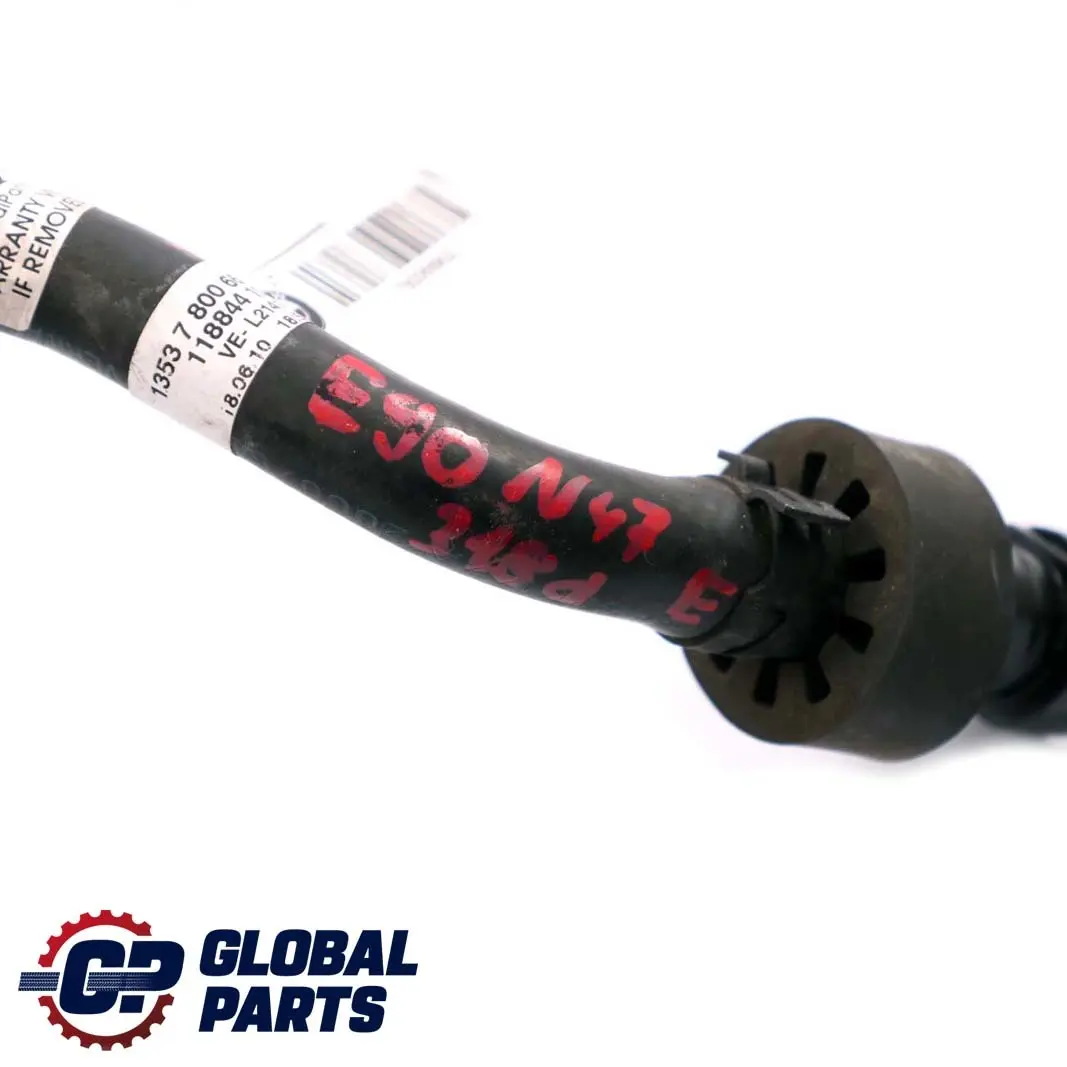

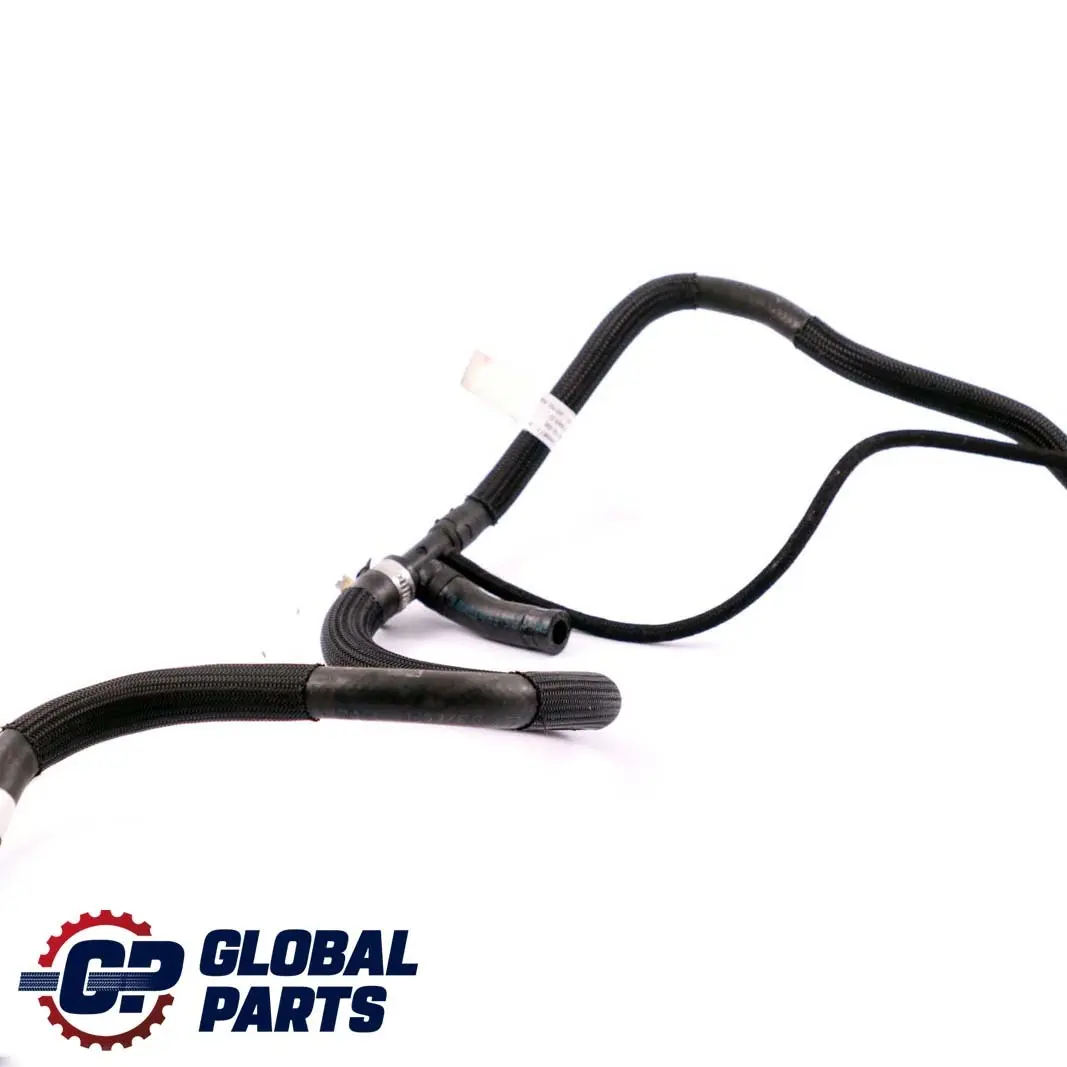

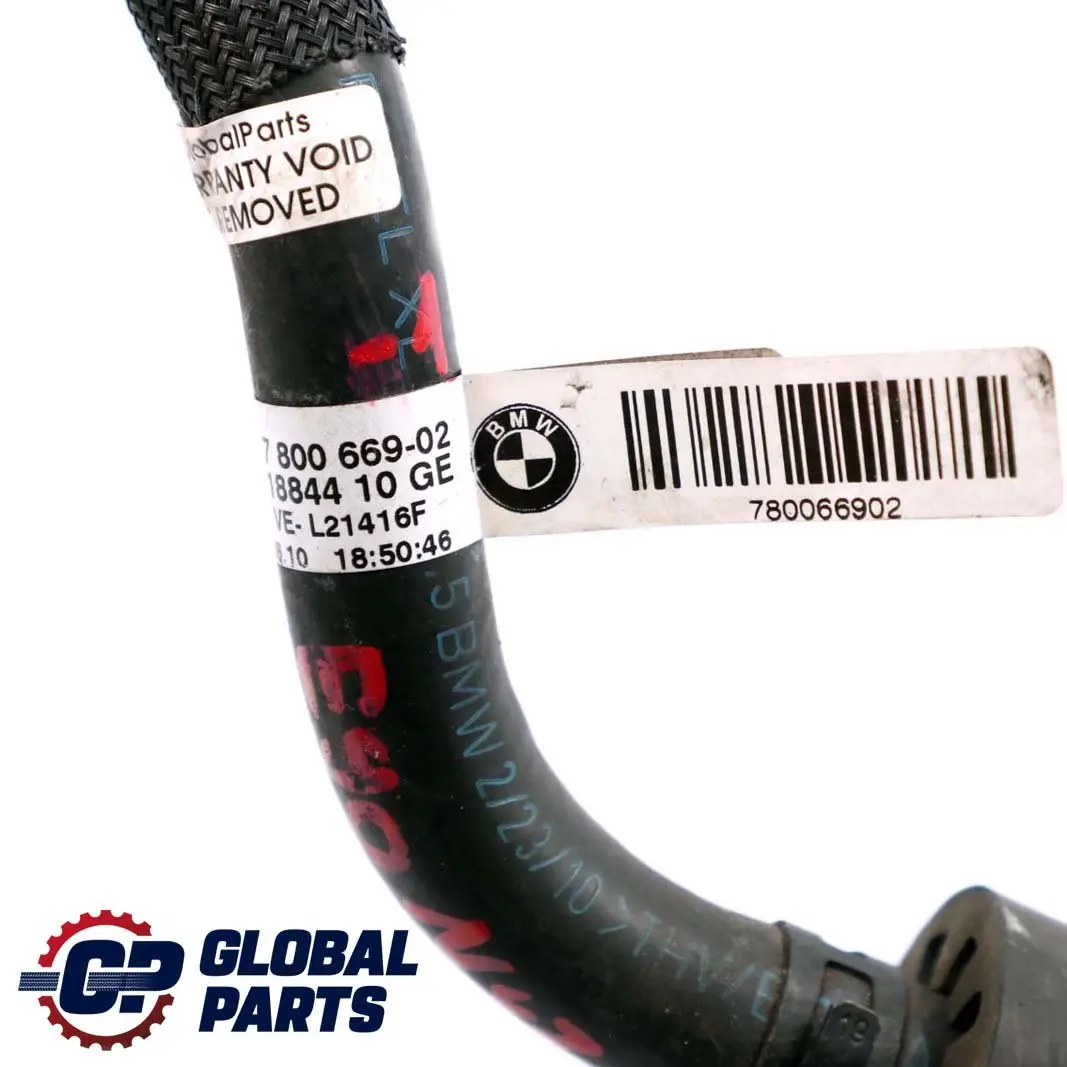

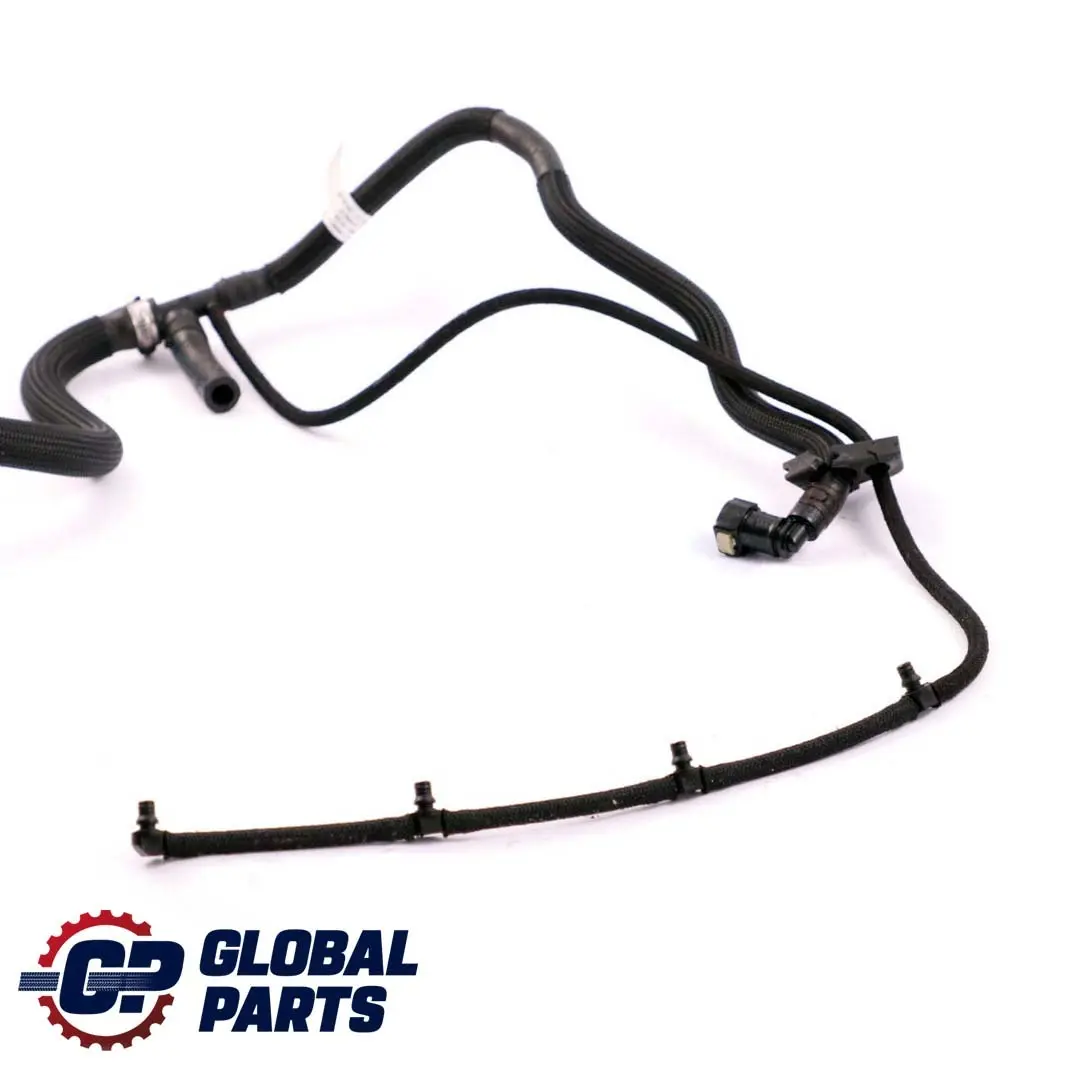

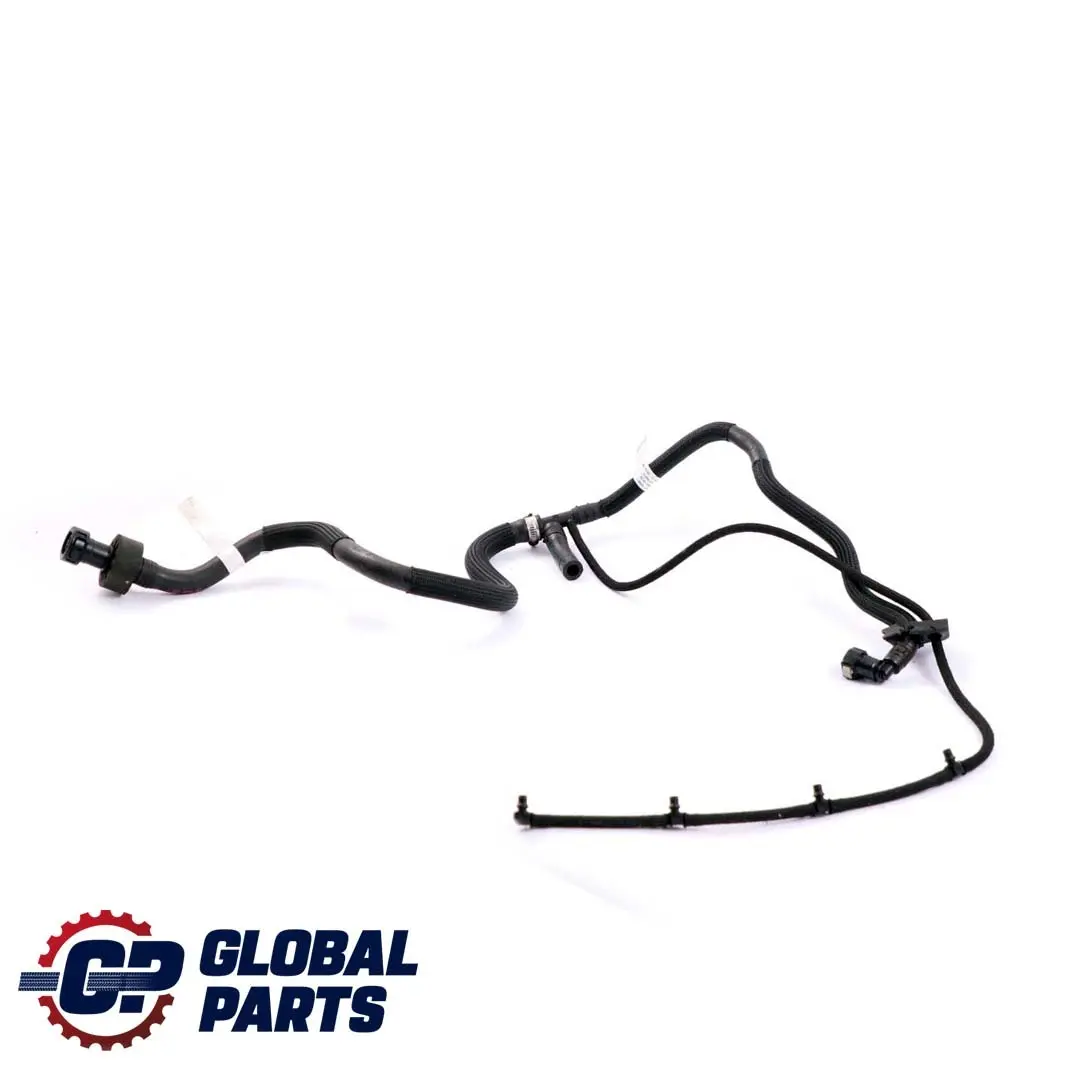

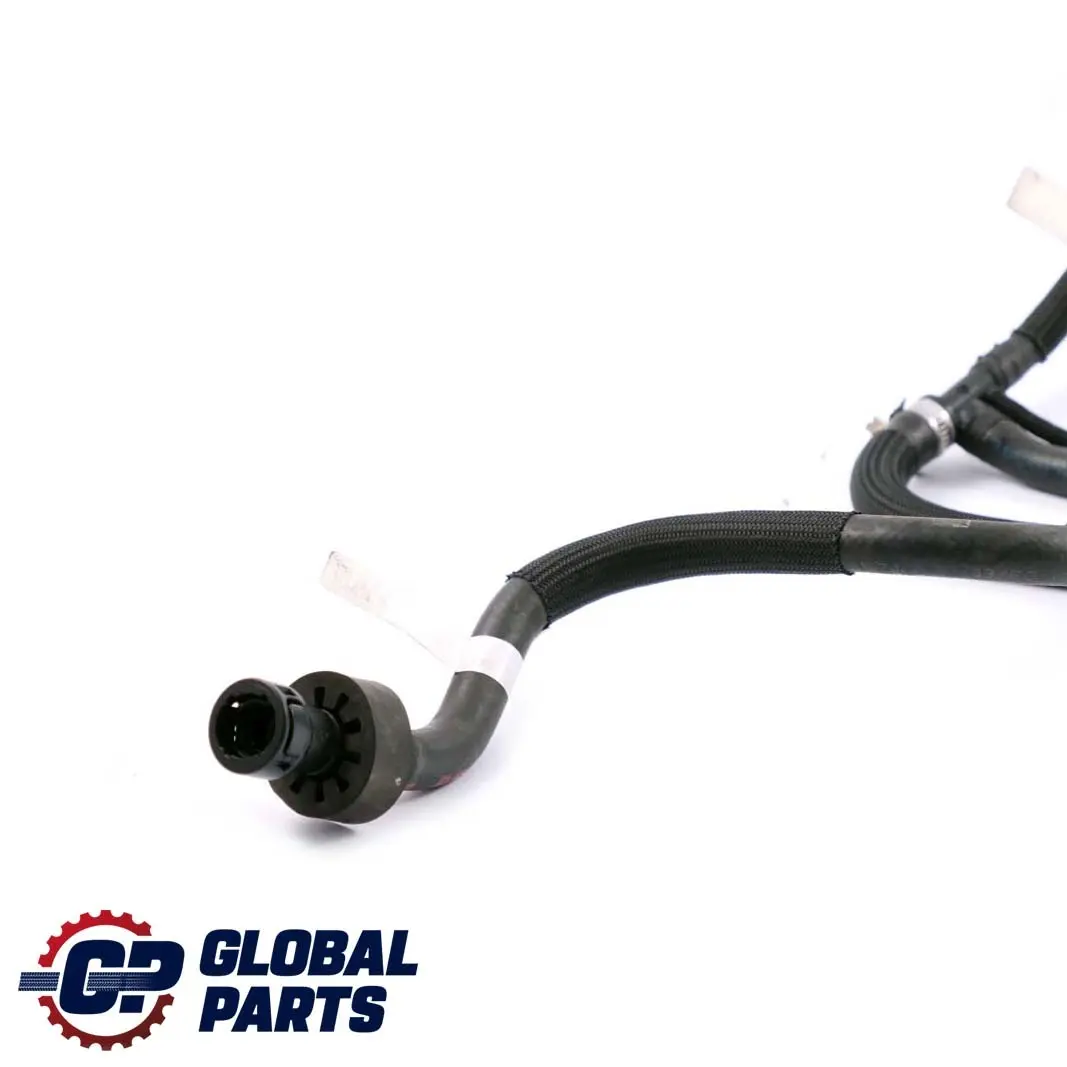

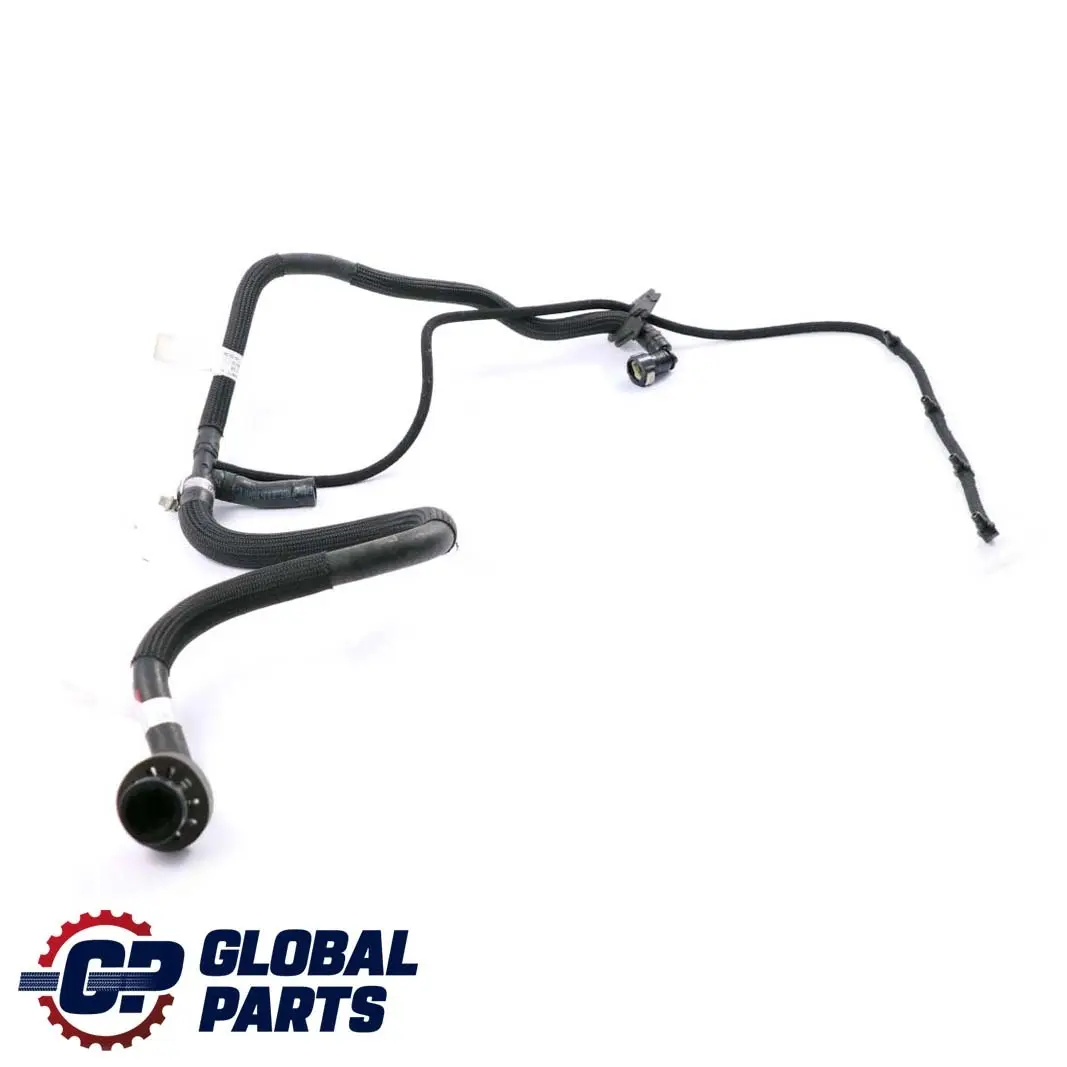

BMW E81 E87 LCI E90 E91 E92 Diesel N47 Fuel Return Line Pipe Hose 7800669

BMW E81 E87 LCI E90 E91 E92 Diesel N47 Fuel Return Line Pipe Hose is a component from the Lines, hoses and pipes group, designed for BMW diesel engine fuel systems. It enables the safe return of fuel from the rail or injectors to the tank, stabilizing the operation of the entire system in diesel engines.

Specifications and technical data

• SKU: 7800669-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7800669
• Substitutable numbers: 13537800669, 7800669
• Fuel type: Diesel
• Category: Hoses, Lines & Pipes

Purpose and function in the fuel system

The BMW E81 E87 LCI E90 E91 E92 Diesel N47 Fuel Return Line Pipe Hose operates in the low-pressure circuit, draining excess diesel fuel from the fuel injection system components. A properly selected line helps maintain stable operating pressure, reduces the risk of air ingress, and supports the smooth operation of injectors in a diesel engine.

The correct geometry and diameter of the line are crucial for:

• maintaining proper fuel flow in the return circuit,
• reducing thermal and hydraulic loads in the system,
• ensuring the correct operation of the high-pressure pump and the fuel rail.

Benefits of using an original BMW line

Using a line from the Lines, hoses and pipes group dedicated to a specific engine type reduces the risk of leaks and improper fitment. A properly shaped return section minimizes stress on the connectors, which translates into stable operation over the long term.

The main advantages include:

• maintaining the factory routing of the line in the engine bay,
• compatibility with the N47 diesel engine fuel system,
• reducing the risk of fuel leaks at critical connection points.

Performance characteristics of the used component

The offered line is a used component, which allows for an economical repair of the fuel system while maintaining the original assembly specifications. This type of solution is particularly beneficial when servicing older BMW models, where both correct functionality and reasonable vehicle maintenance costs are important.

The fuel return line in a diesel engine operates under conditions of variable temperatures and vibrations, which is why choosing a part with factory geometry and material properties is essential for the durability of the entire system.

Integration with the Diesel fuel system

In diesel engines, a properly functioning fuel return line supports:

• stabilization of fuel temperature in the circuit,
• draining excess fuel from precision components,
• reducing the load on the high-pressure pump.

As a result, the injection system maintains proper operating standards, and the risk of engine power supply disturbances is reduced.
