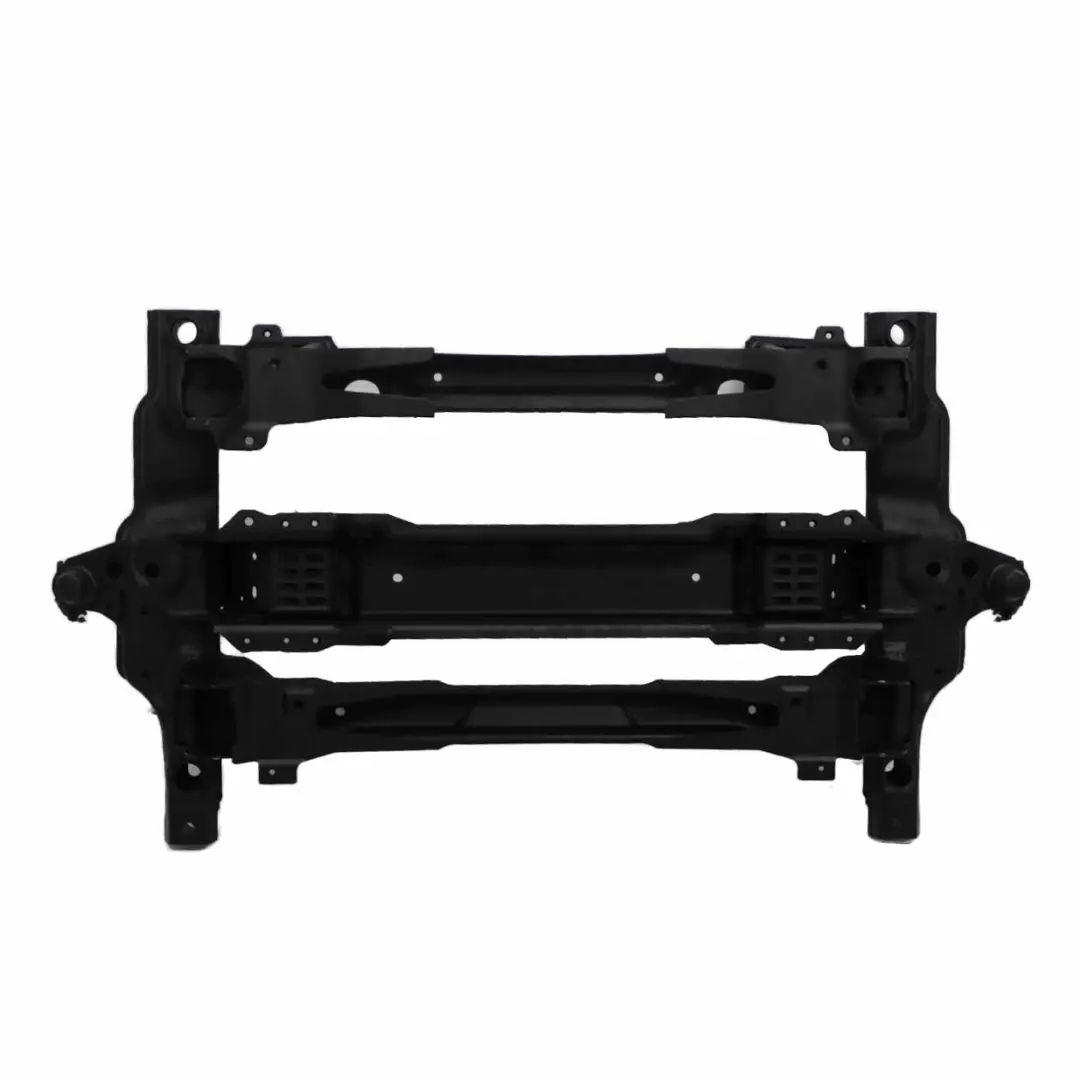

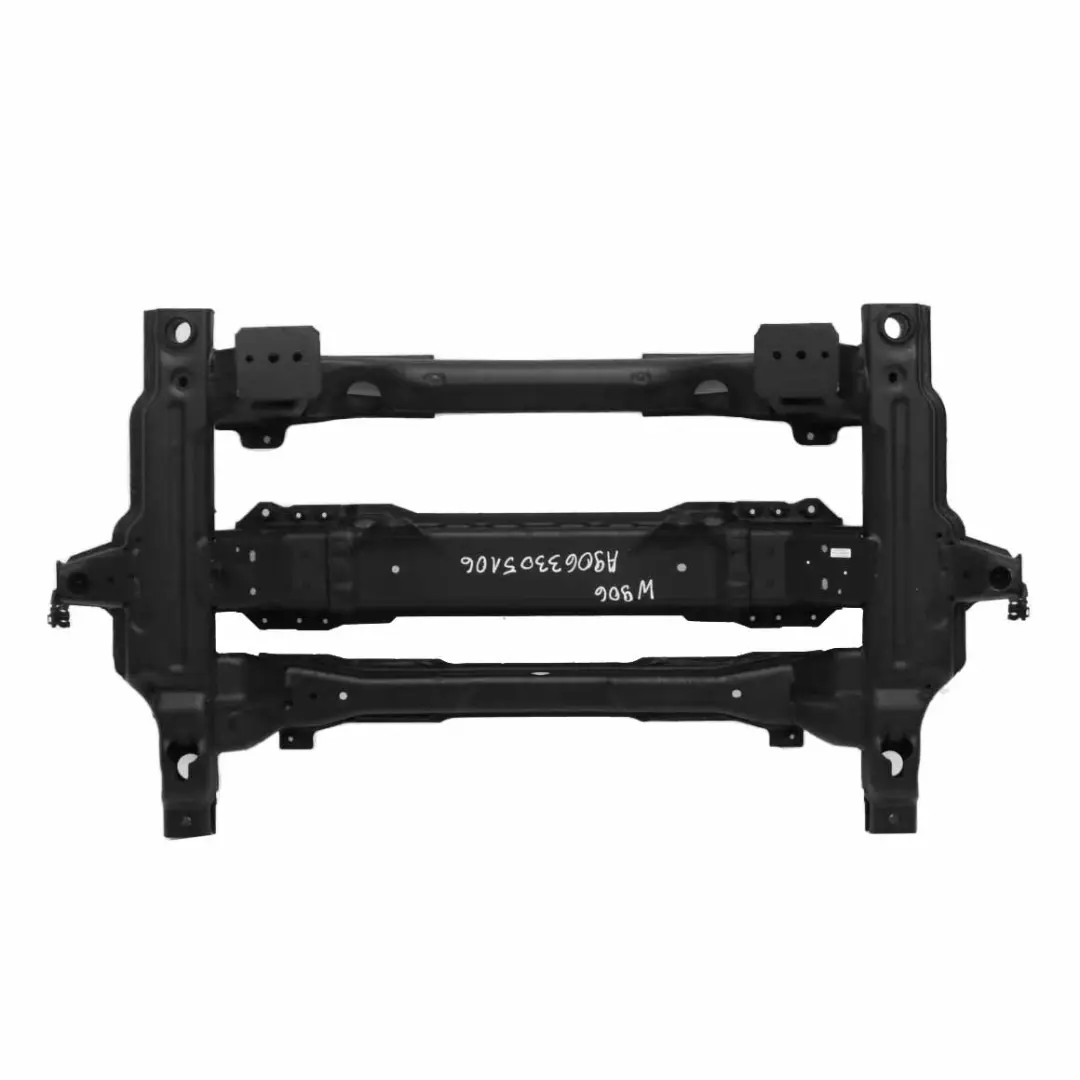

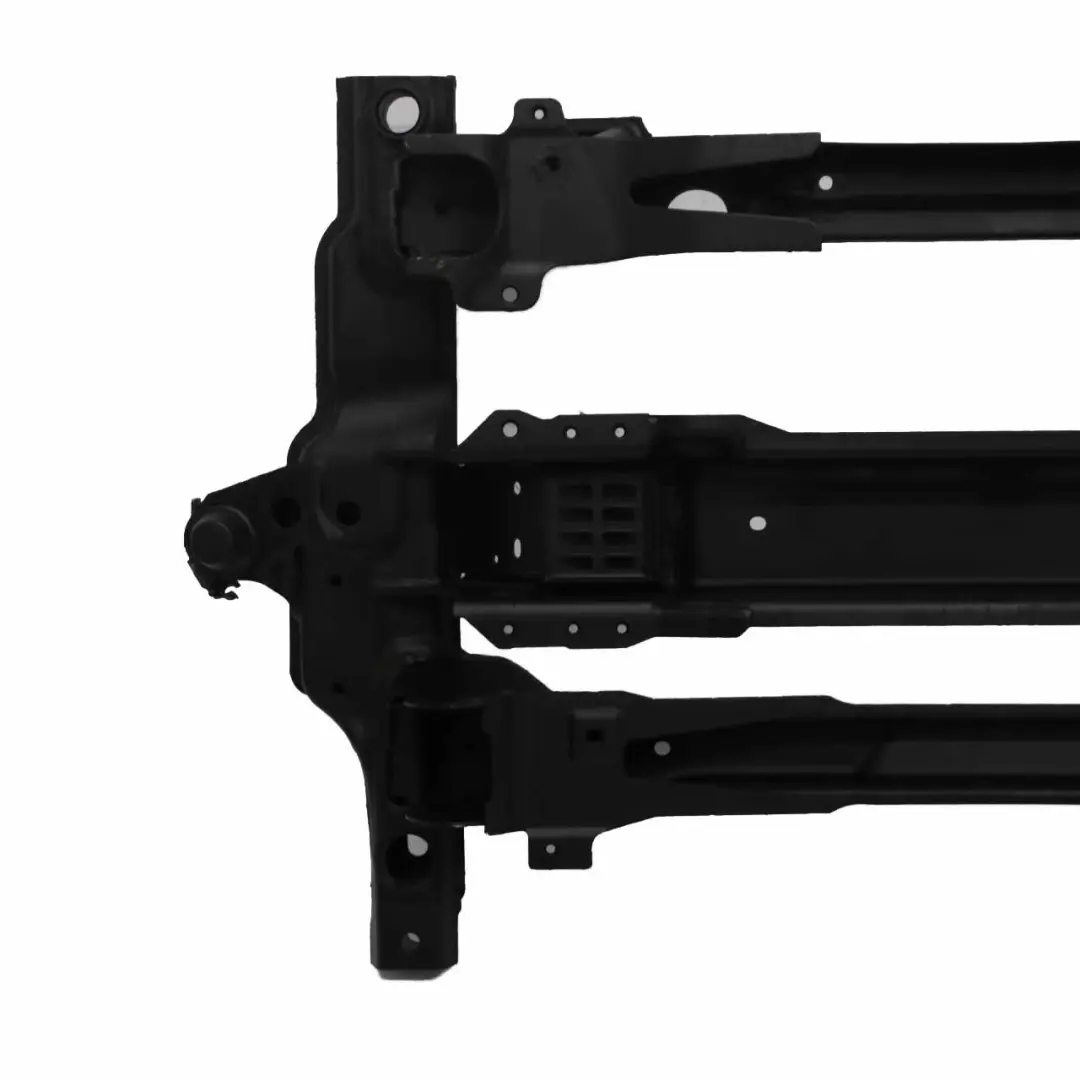

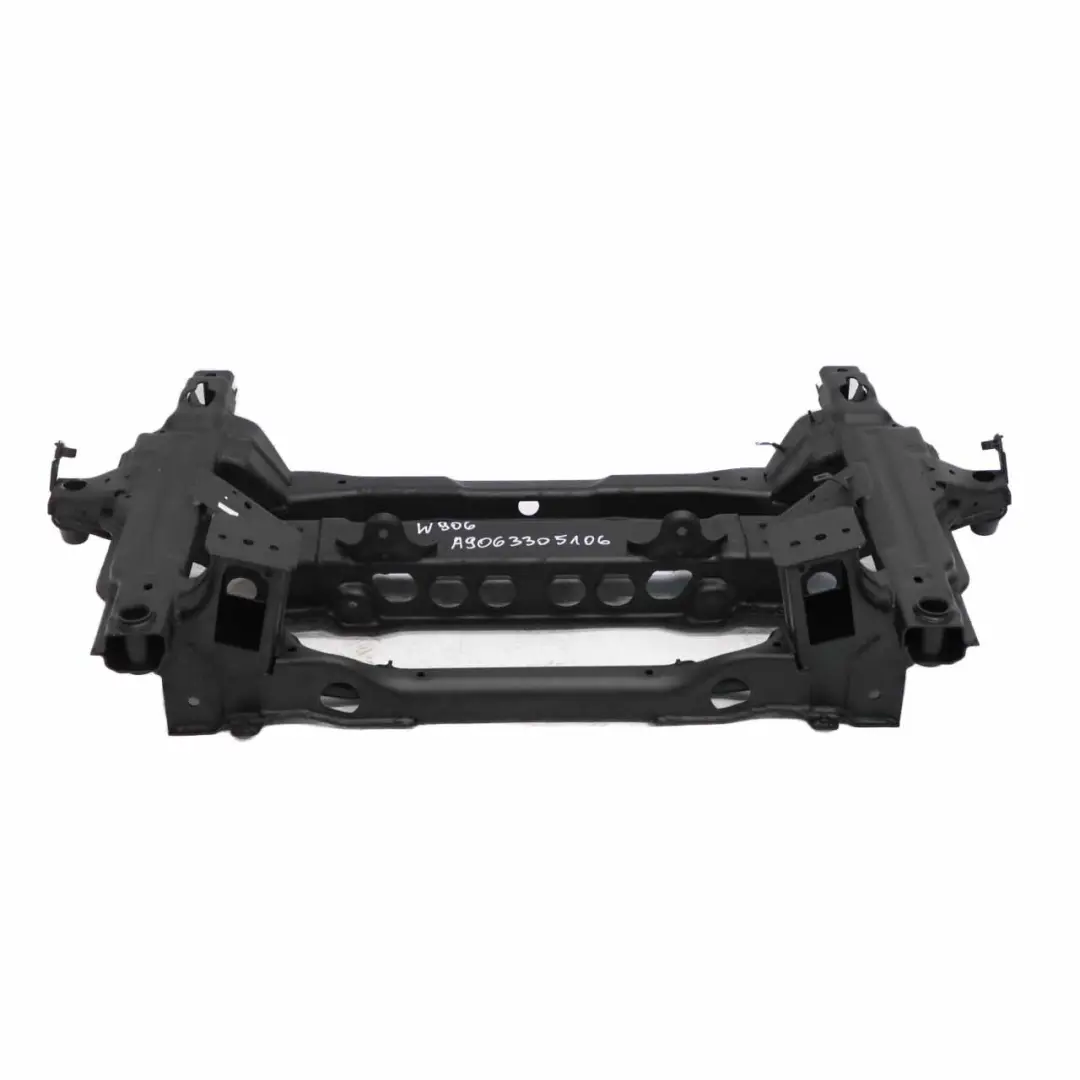

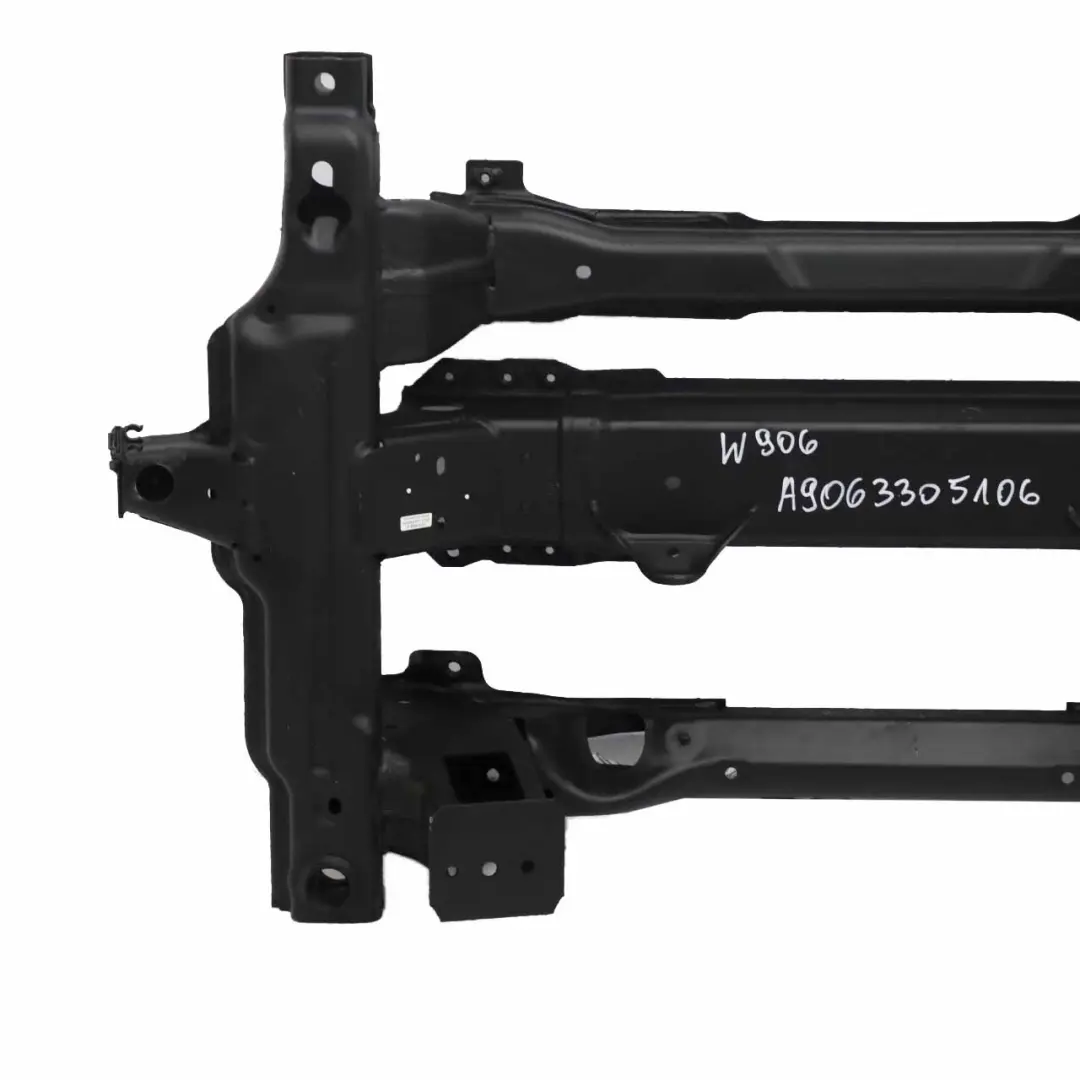

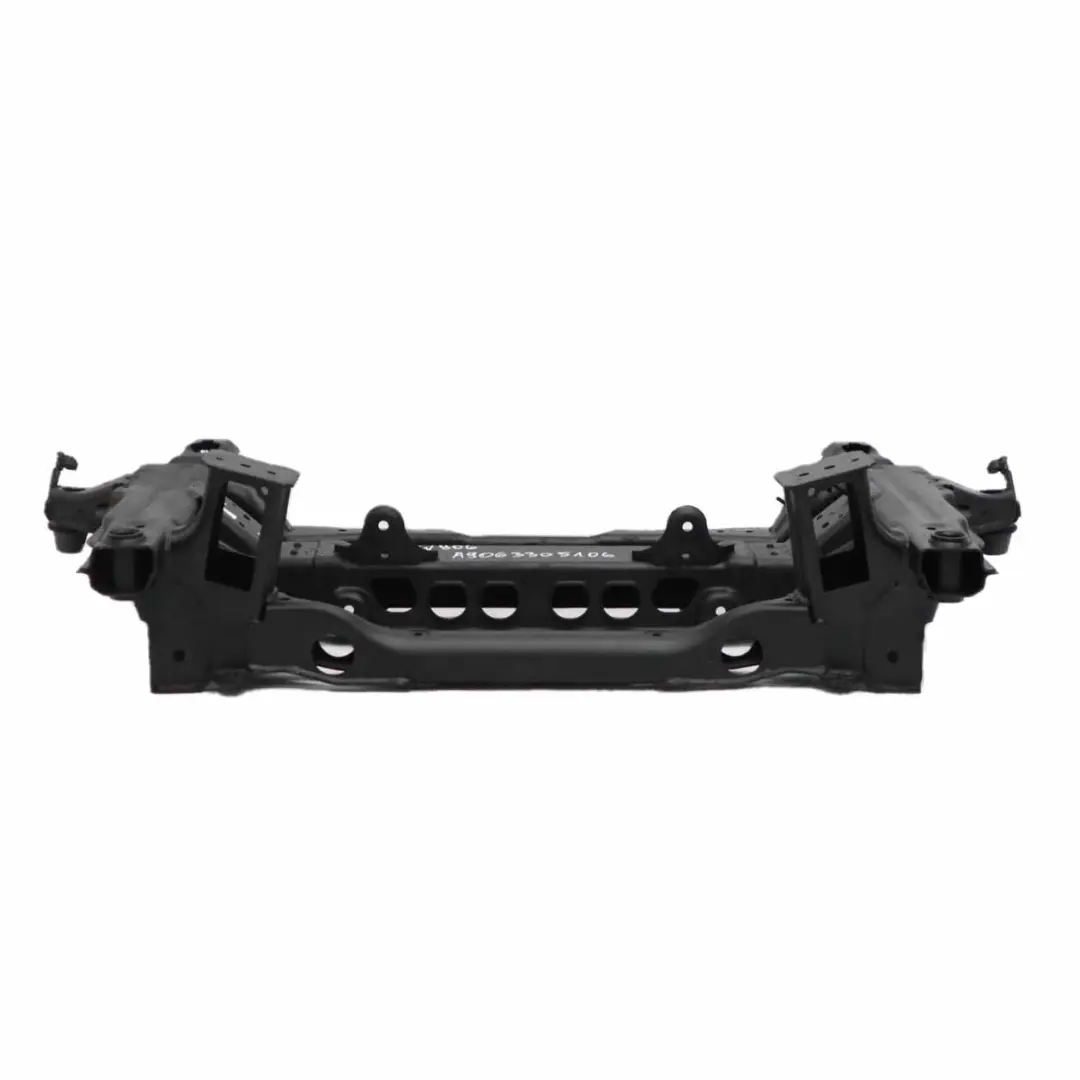

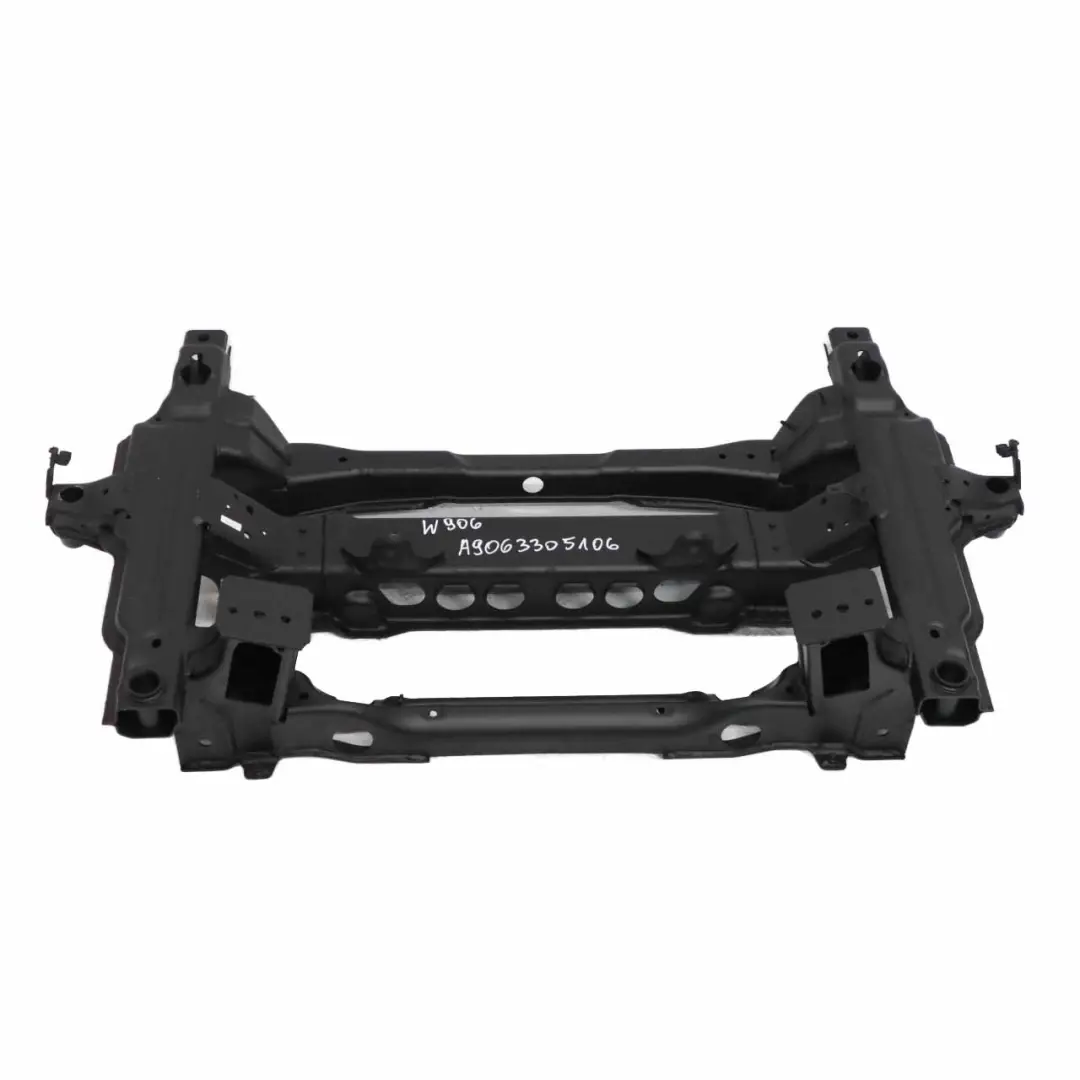

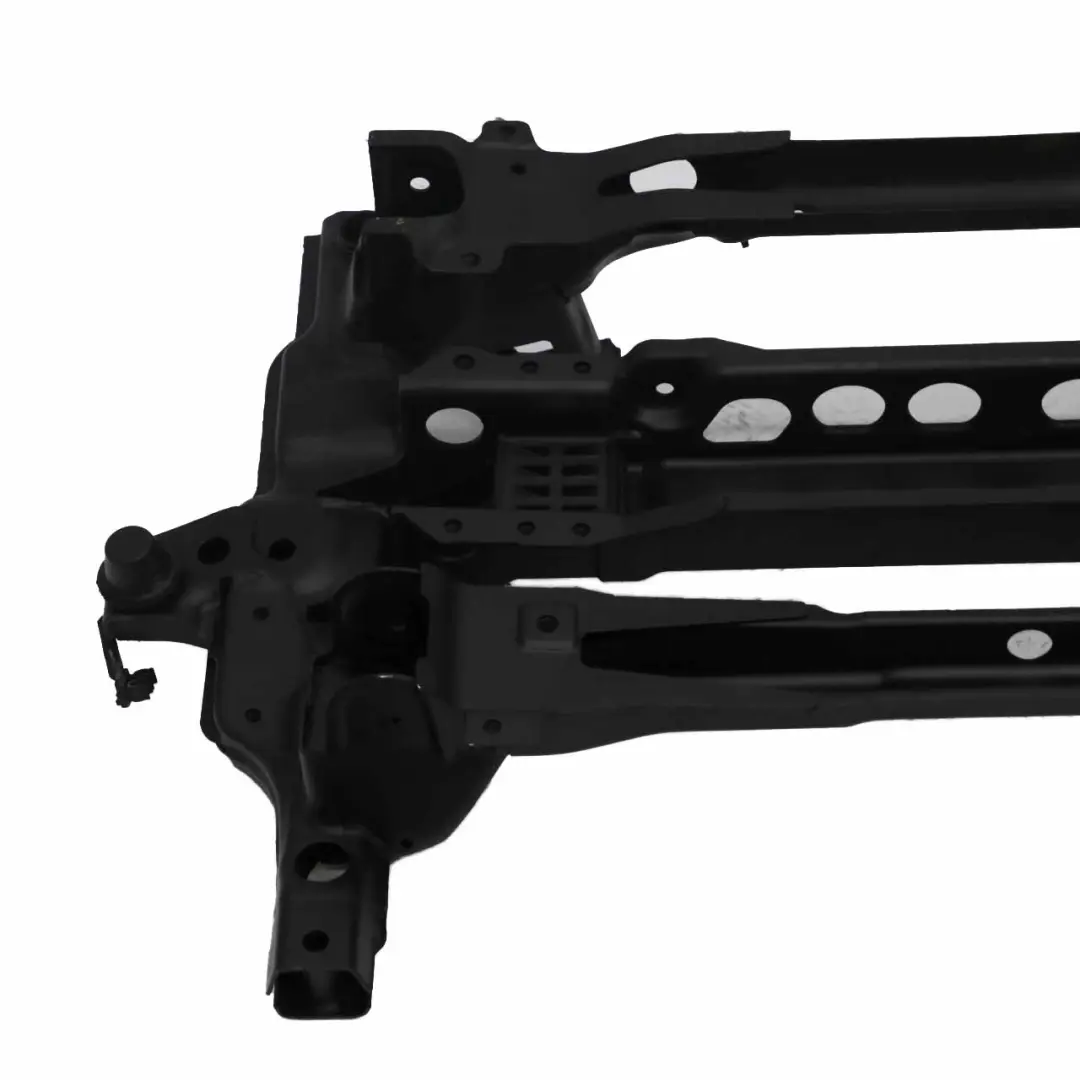

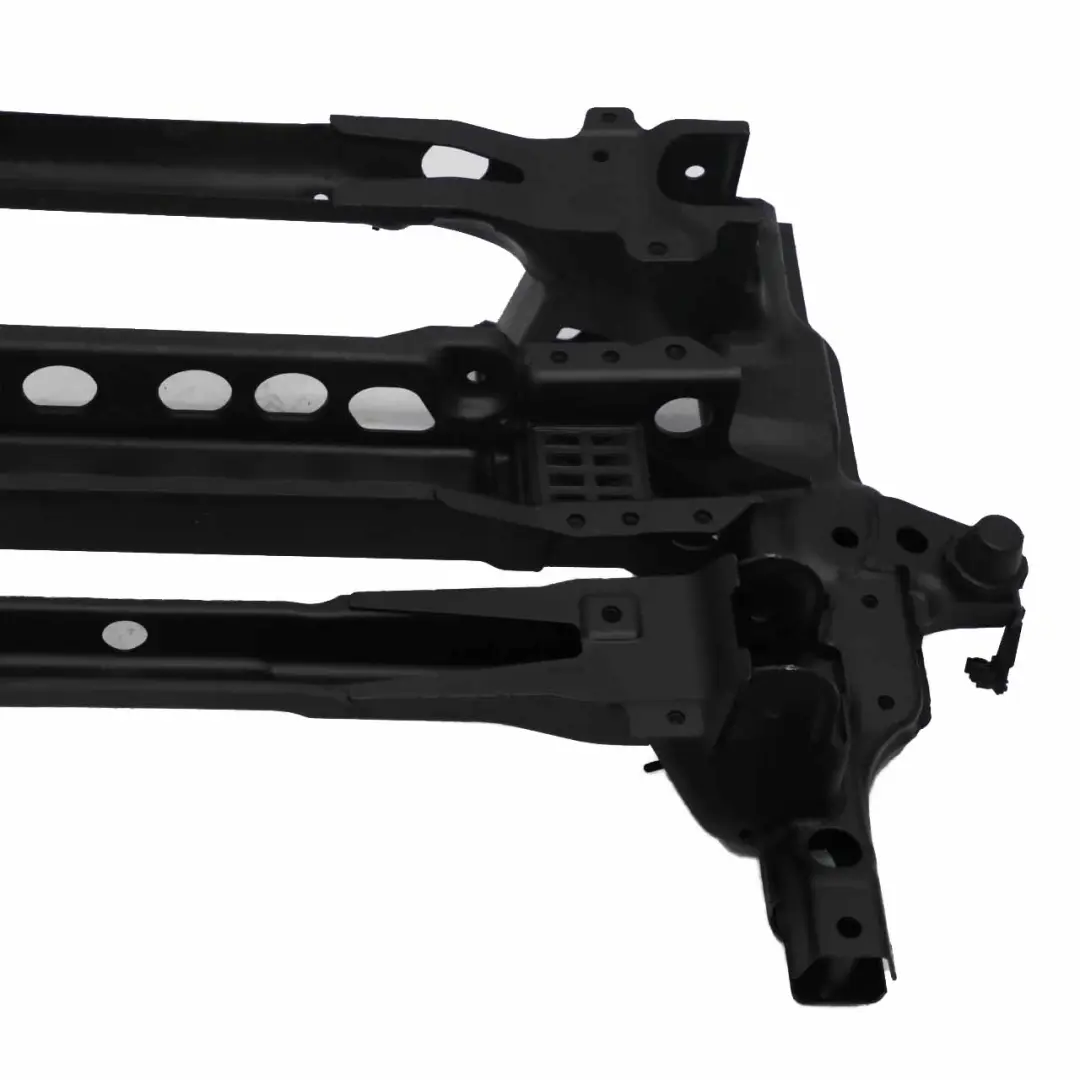

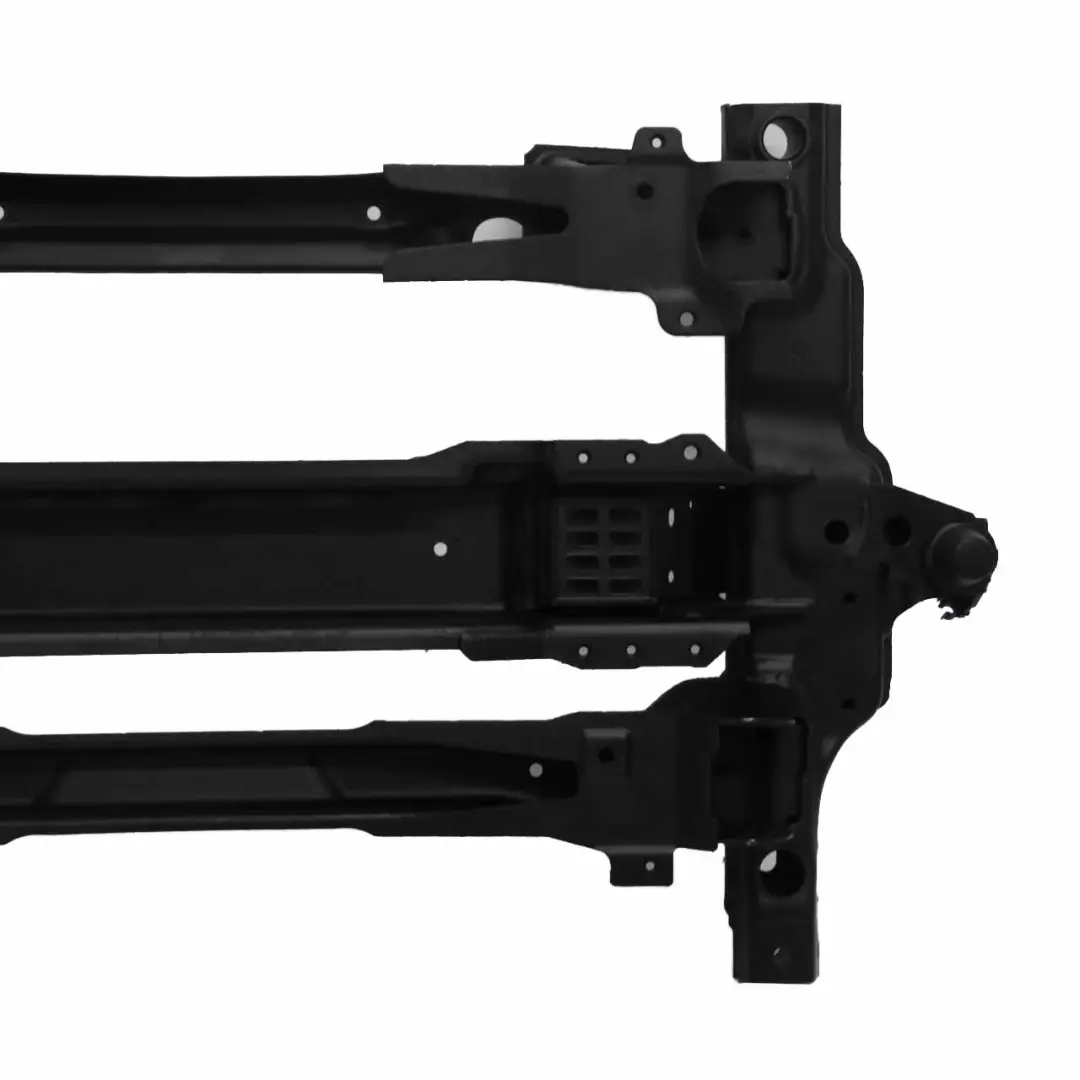

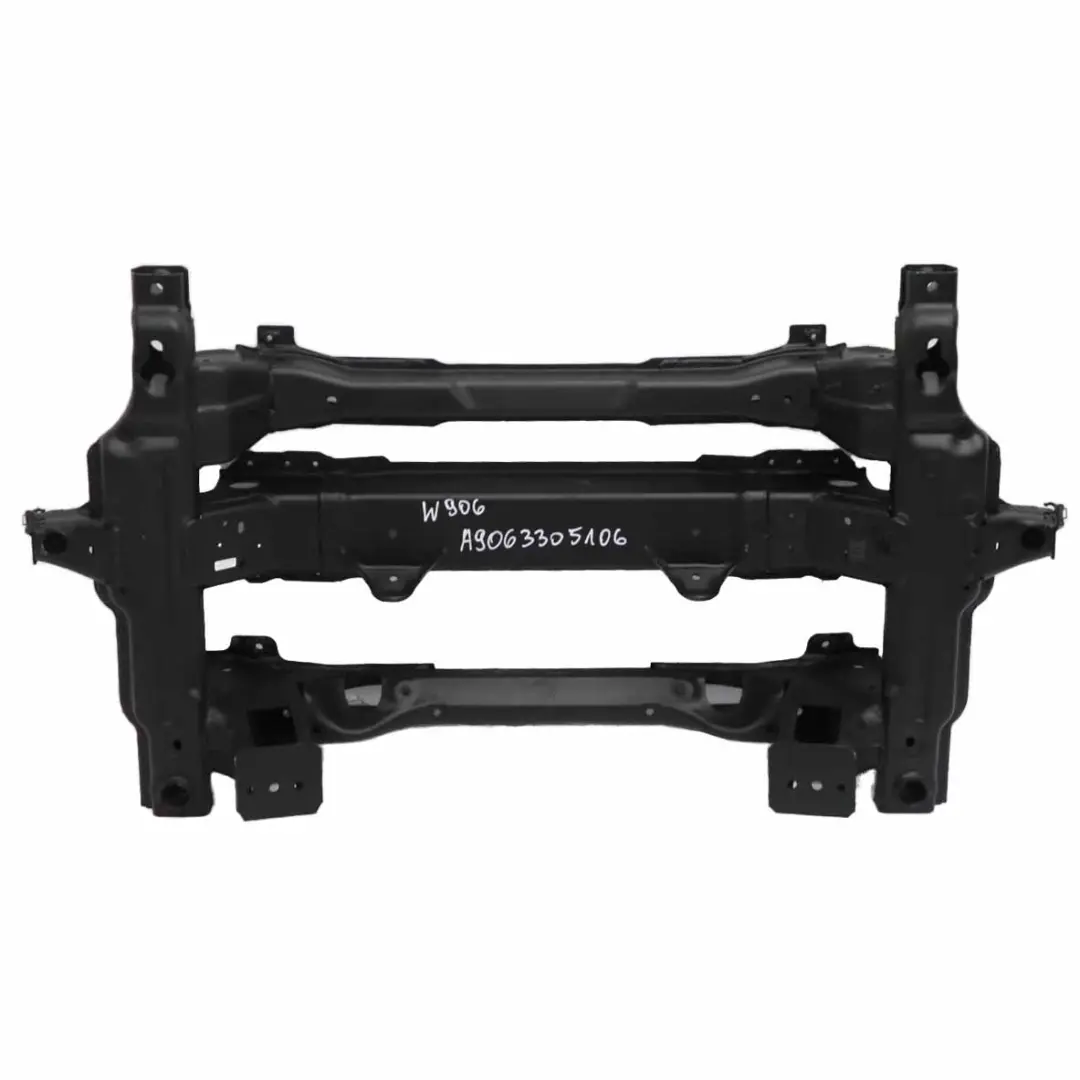

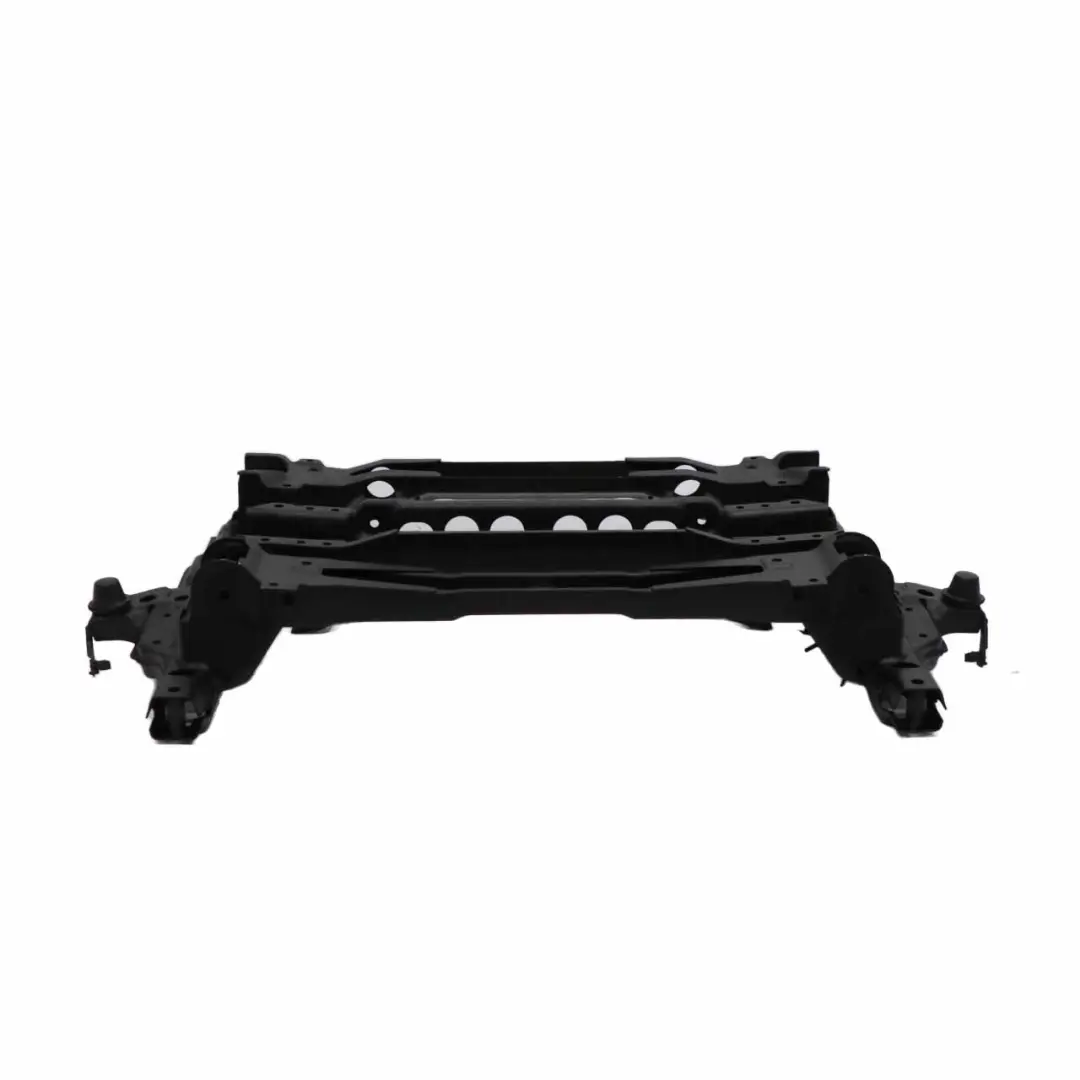

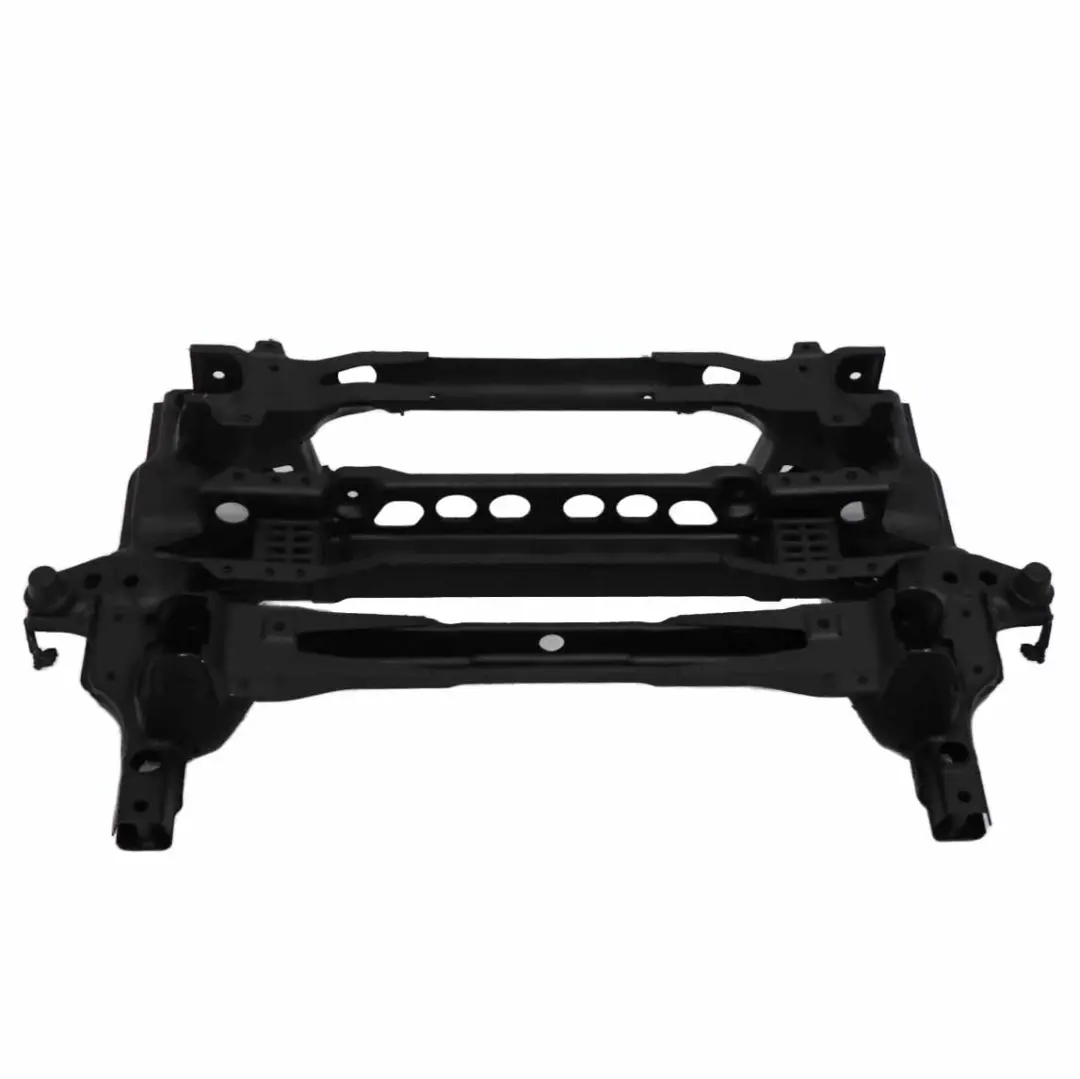

Mercedes Sprinter W906 Front Axle Subframe Carrier Engine Cradle Mounting

The Mercedes Sprinter W906 Front Crossmember Subframe Cradle is a structural component from the longitudinal body frame parts and brackets group, designed for the front of the vehicle. It is responsible for the stable support of critical components and the proper transfer of loads from the suspension to the body, which is crucial for the handling and safety of the van.

Specifications and technical data

• SKU: A9063305106-1
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A9063305106
• Substitutable numbers: A9063305106, A 906 330 51 06, A9063305006, A 906 330 50 06, A9063304606, A 906 330 46 06, A9063304106, A 906 330 41 06, A9063306000, A 906 330 60 00
• Location on the vehicle: Front
• Category: Frame Rails & Subframes

Purpose and Function in the Vehicle

The front crossmember, also known as a subframe or cradle, is a load-bearing part of the chassis system. In the Mercedes Sprinter W906, it is responsible for:

• stable mounting of suspension components in the front of the vehicle,
• transferring forces from the wheels to the body during braking, acceleration, and over uneven surfaces,
• maintaining the geometry of the front axle, which affects steering precision and even tire wear,
• interacting with the frame and body structure in absorbing operational loads.

Its placement at the front of the vehicle means this component directly influences the Sprinter's behavior under load, especially in commercial and fleet applications.

Construction and Fit for Mercedes Sprinter W906

The longitudinal body frame parts and brackets in this model are designed as elements that work systemically with the frame and body. Using an original crossmember ensures:

• factory mounting points for the suspension and other sub-assemblies,
• maintenance of the designed front structure stiffness by the manufacturer,
• compatibility with the factory solutions of the Sprinter W906 chassis system.

This allows for the restoration of the vehicle's original driving characteristics by replacing a damaged crossmember with a used part, without needing to alter the structural design.

Application in Accident and Operational Repairs

The front crossmember is often replaced after frontal or side collisions, as well as in cases of severe suspension damage. Choosing a used part from this group allows for:

• optimization of repair costs while maintaining the original structure,
• use of OEM parts from disassembly, matched to a specific version of the Sprinter W906,
• restoration of the correct front vehicle geometry after bodywork and mechanical repairs.

You can find more information on the safe use of disassembled body parts in accident repairs in the article: Body and Chassis – Accident Repairs Using Disassembled Parts.

Benefits of Using an Original Front Crossmember

By choosing the Mercedes Sprinter W906 Front Crossmember Subframe Cradle from the longitudinal body frame parts and brackets group, you gain:

• preservation of the vehicle's factory handling characteristics,
• assurance of fit with the suspension system and other structural elements,
• consistency with the original body architecture, which facilitates service work and geometry checks,
• a sensible compromise between cost and durability through the use of disassembled parts.
