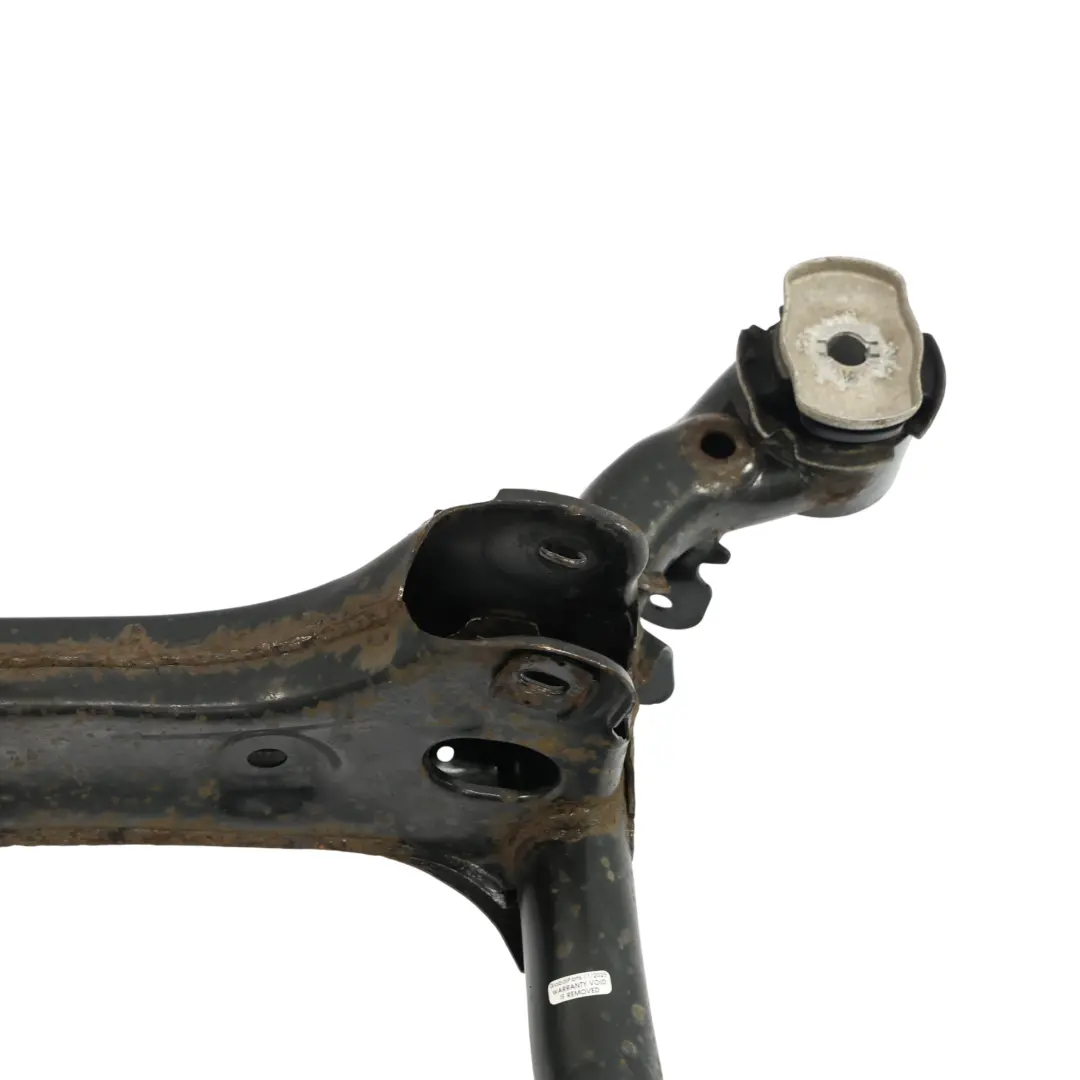

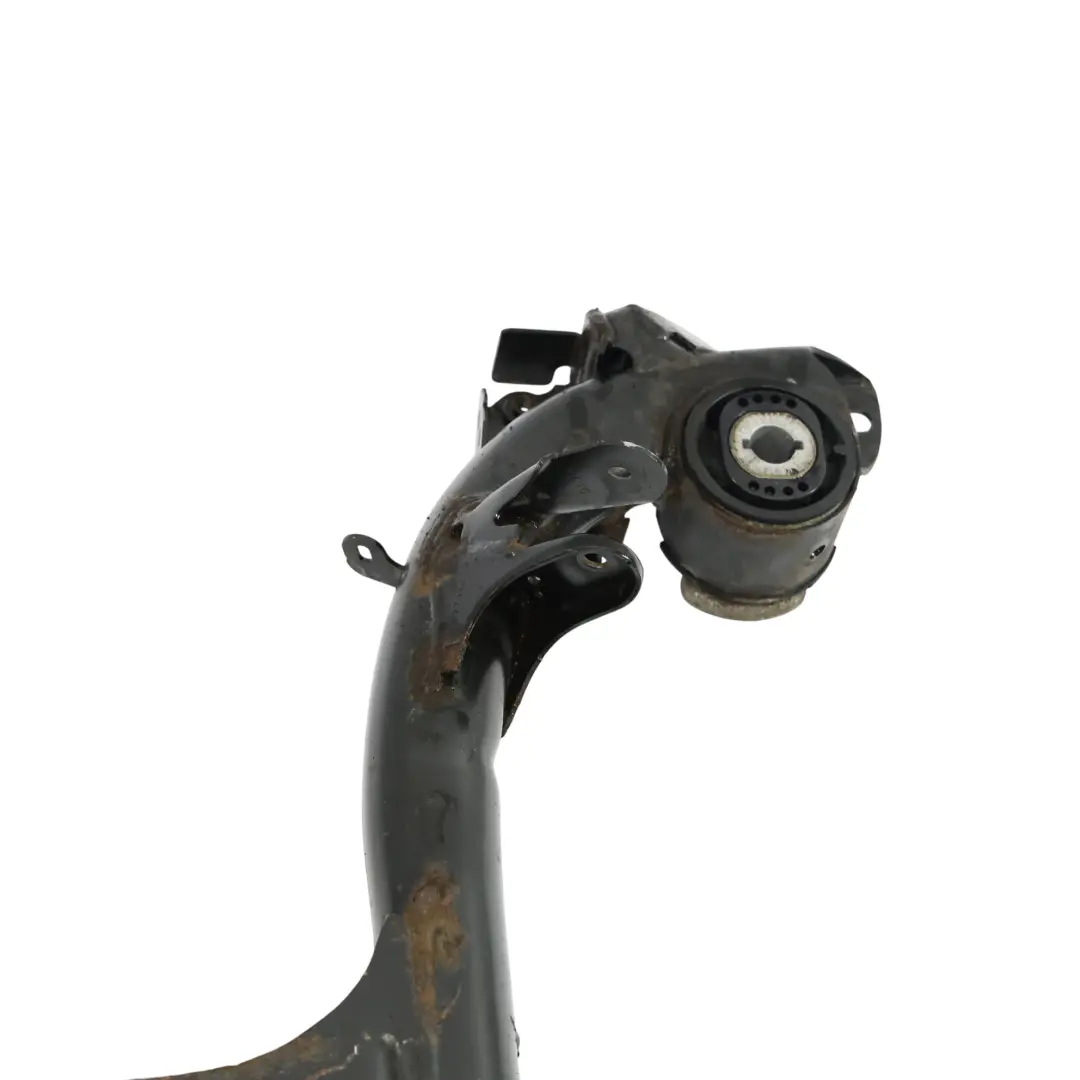

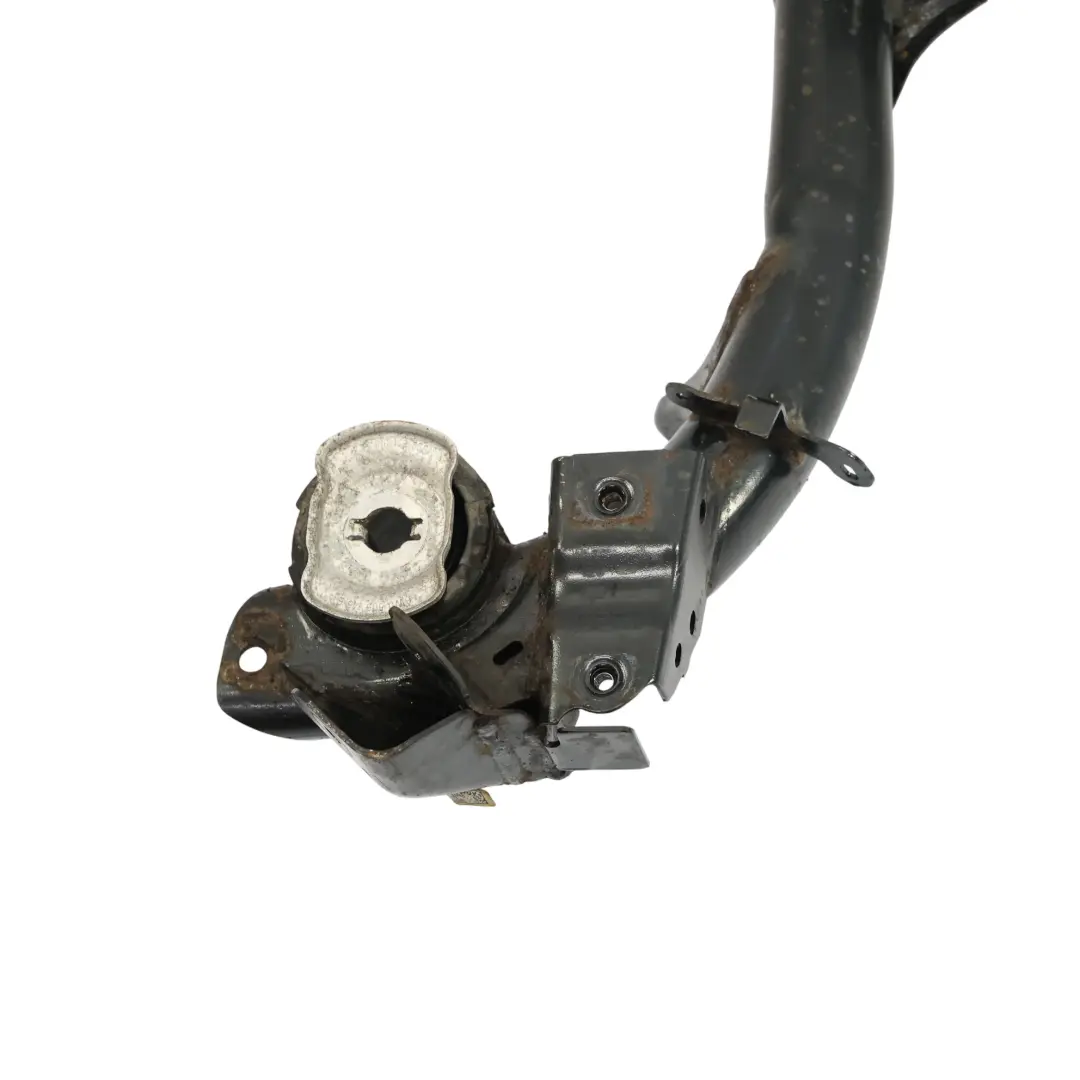

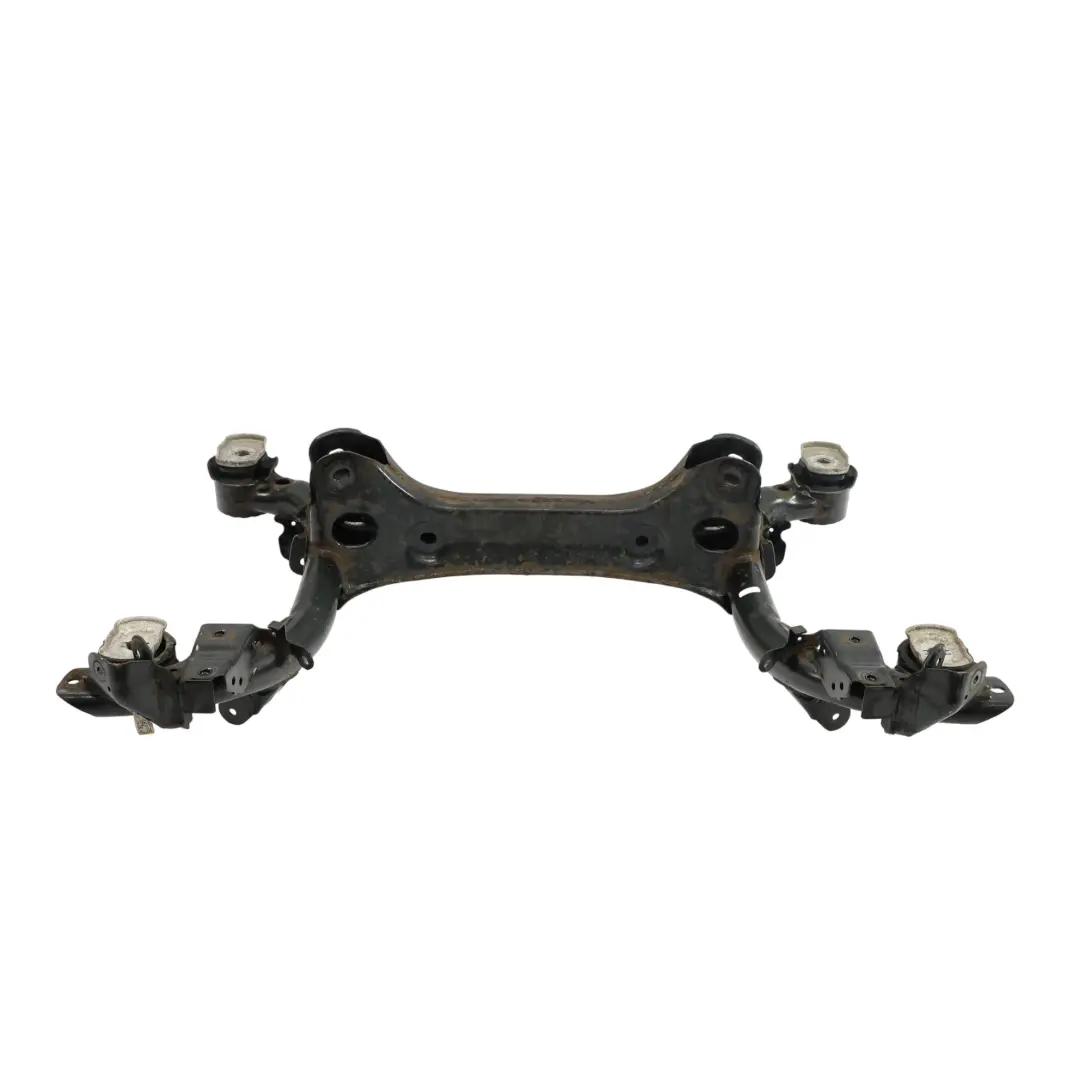

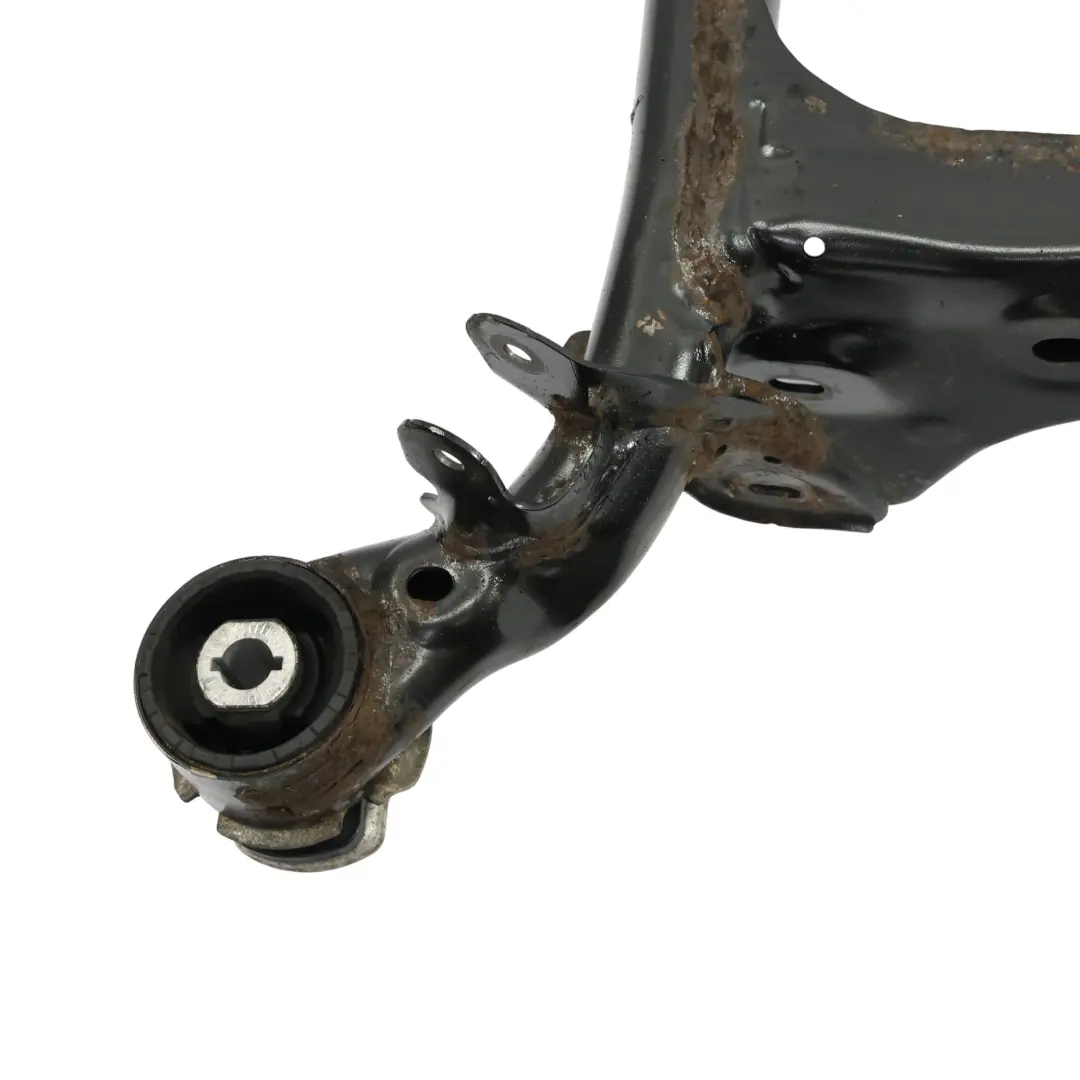

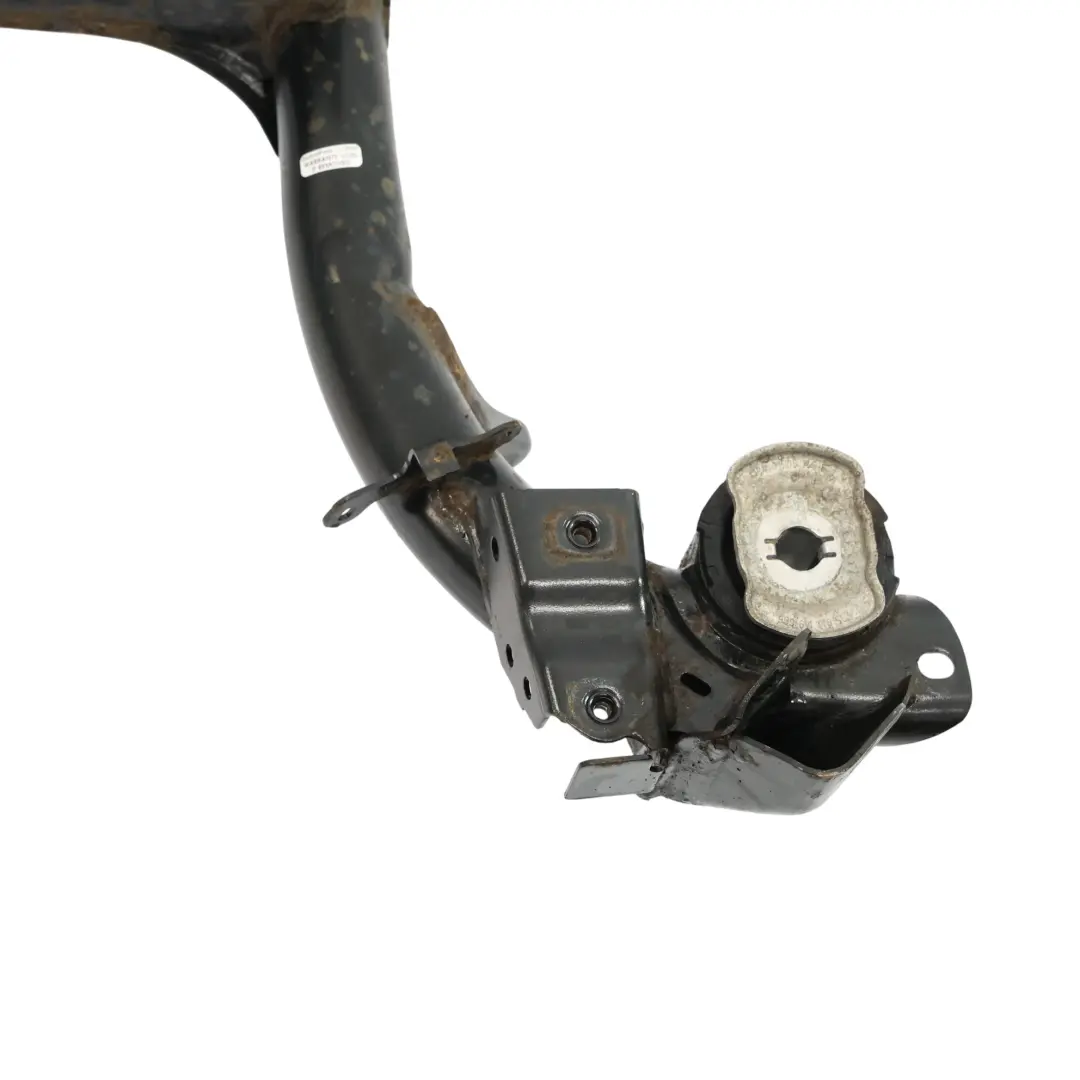

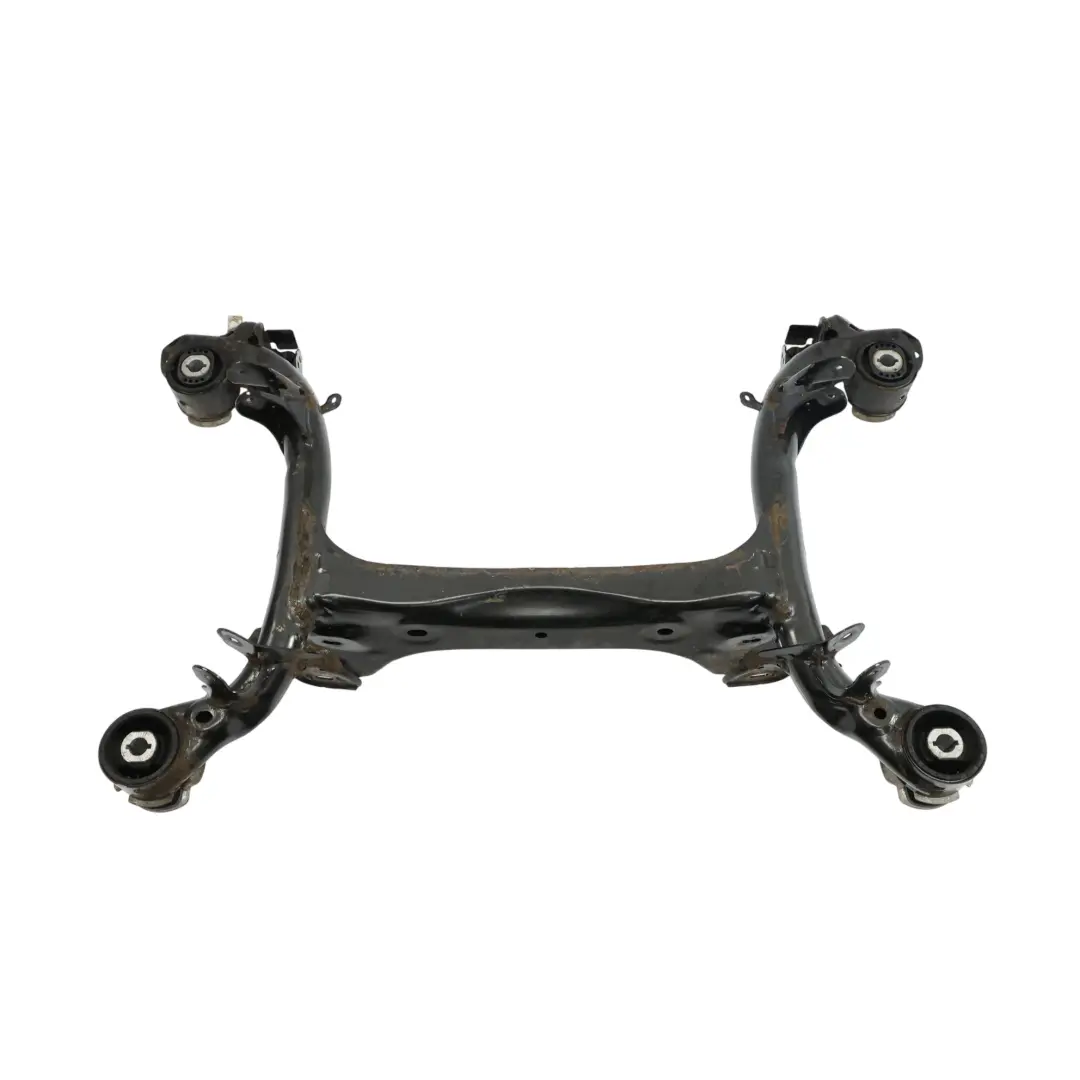

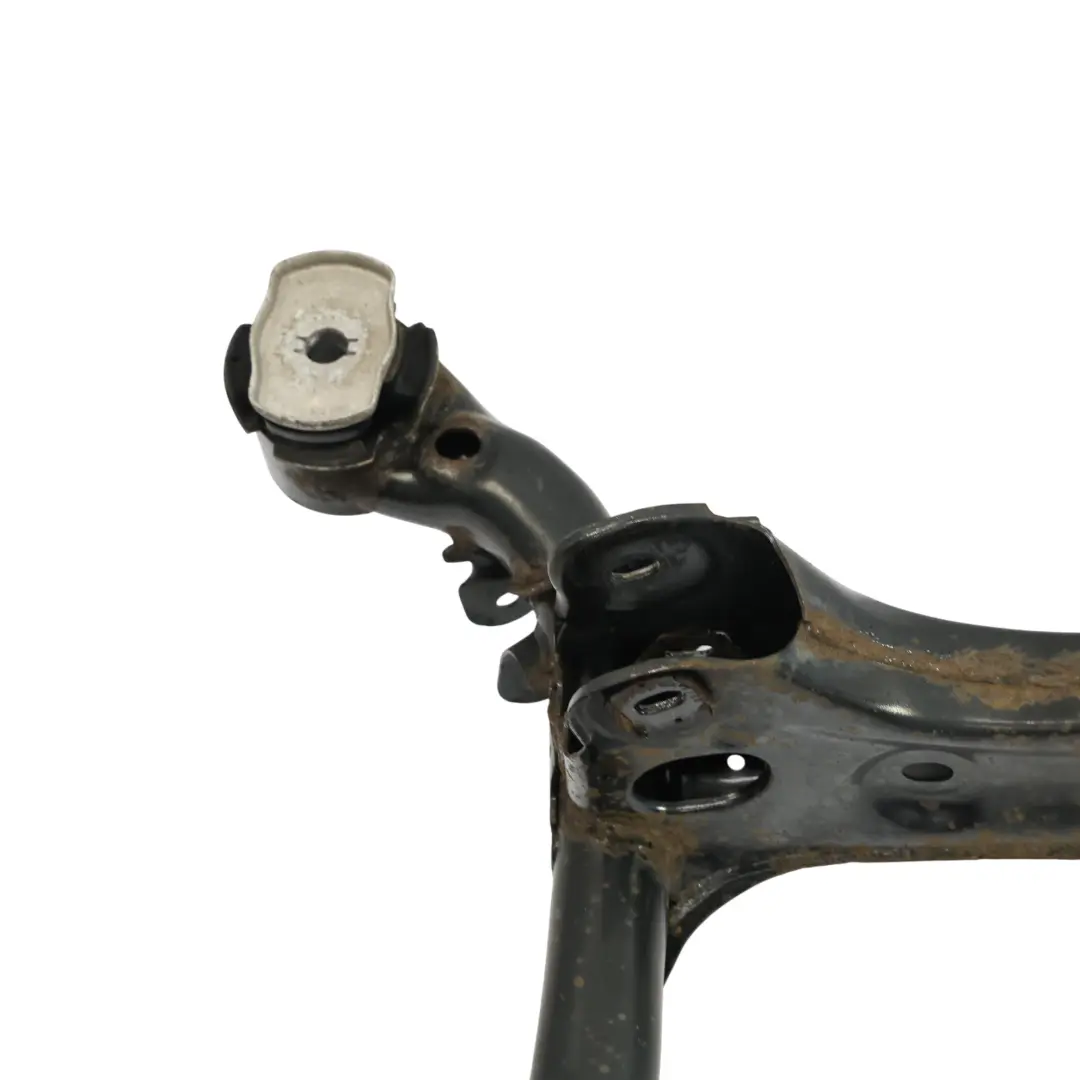

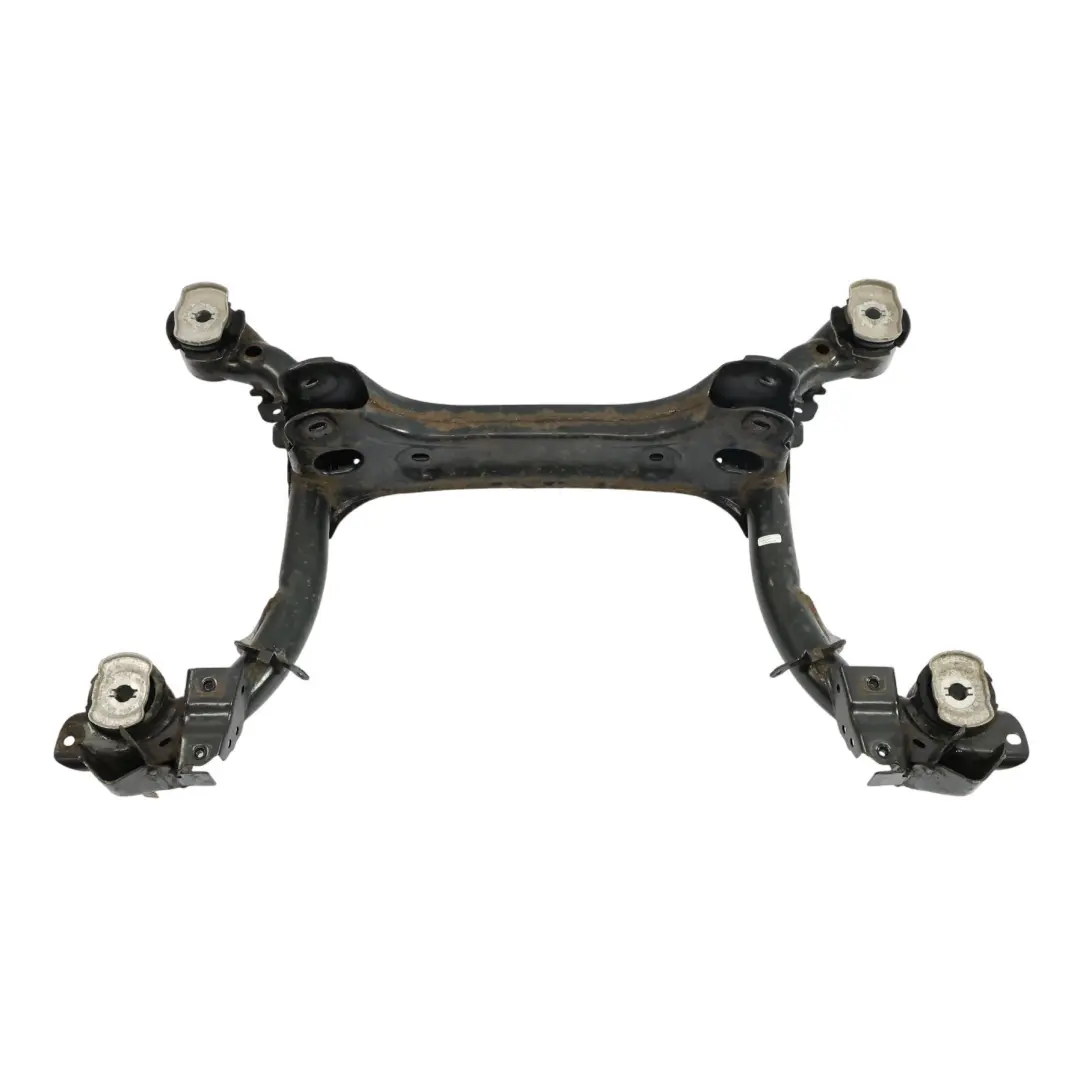

Audi A4 B9 Rear Axle Suspension Cradle Subframe Mounting FWD 8W0505235AE

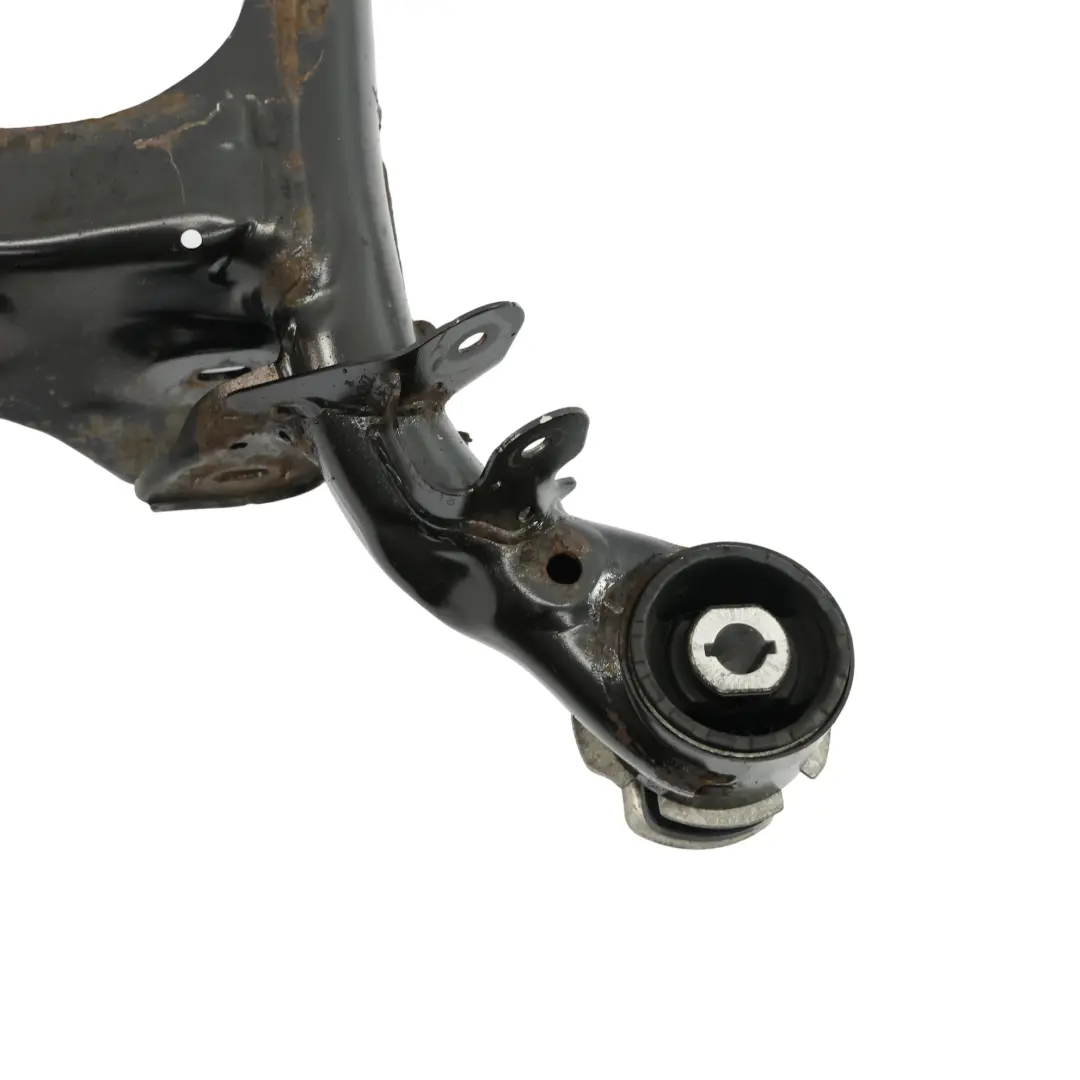

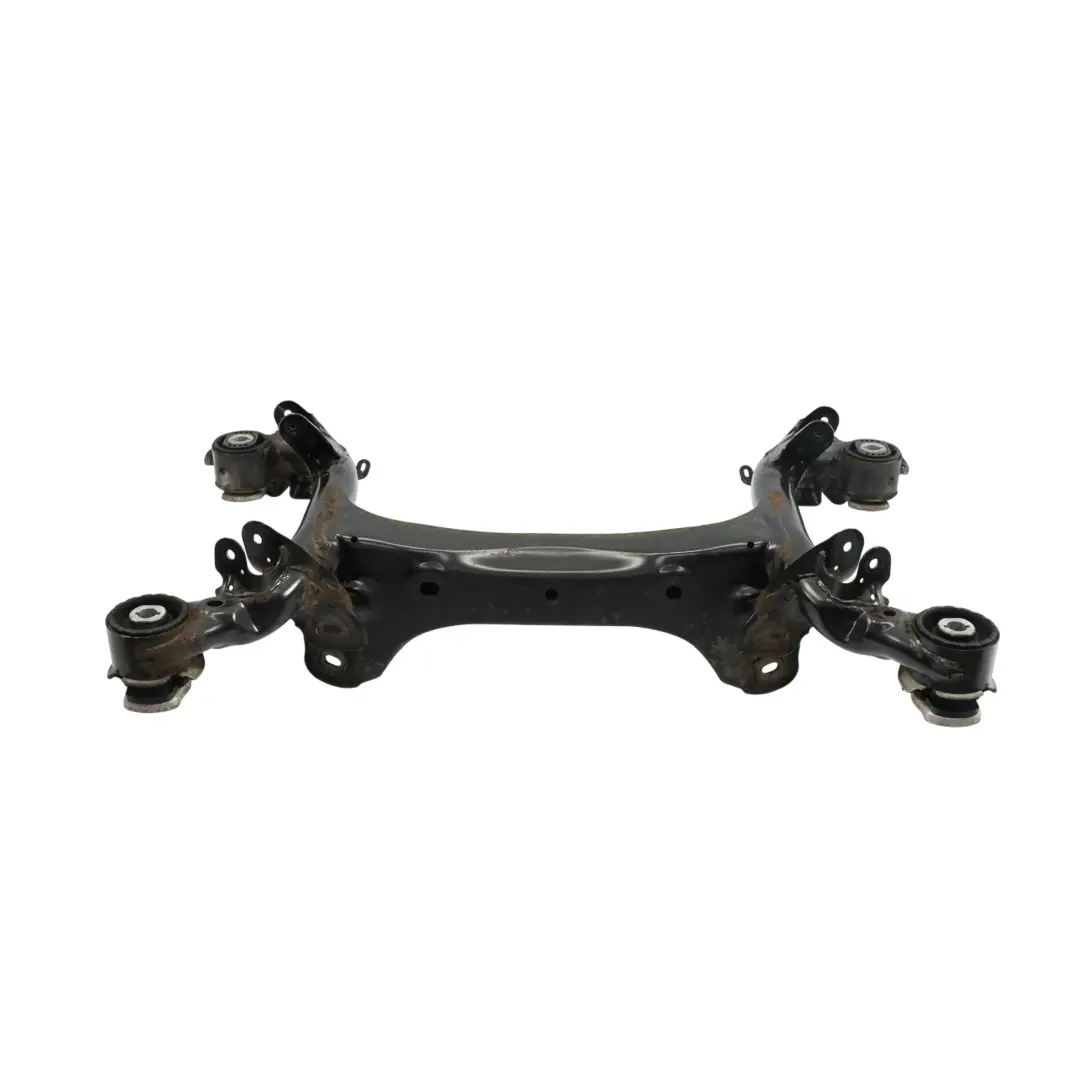

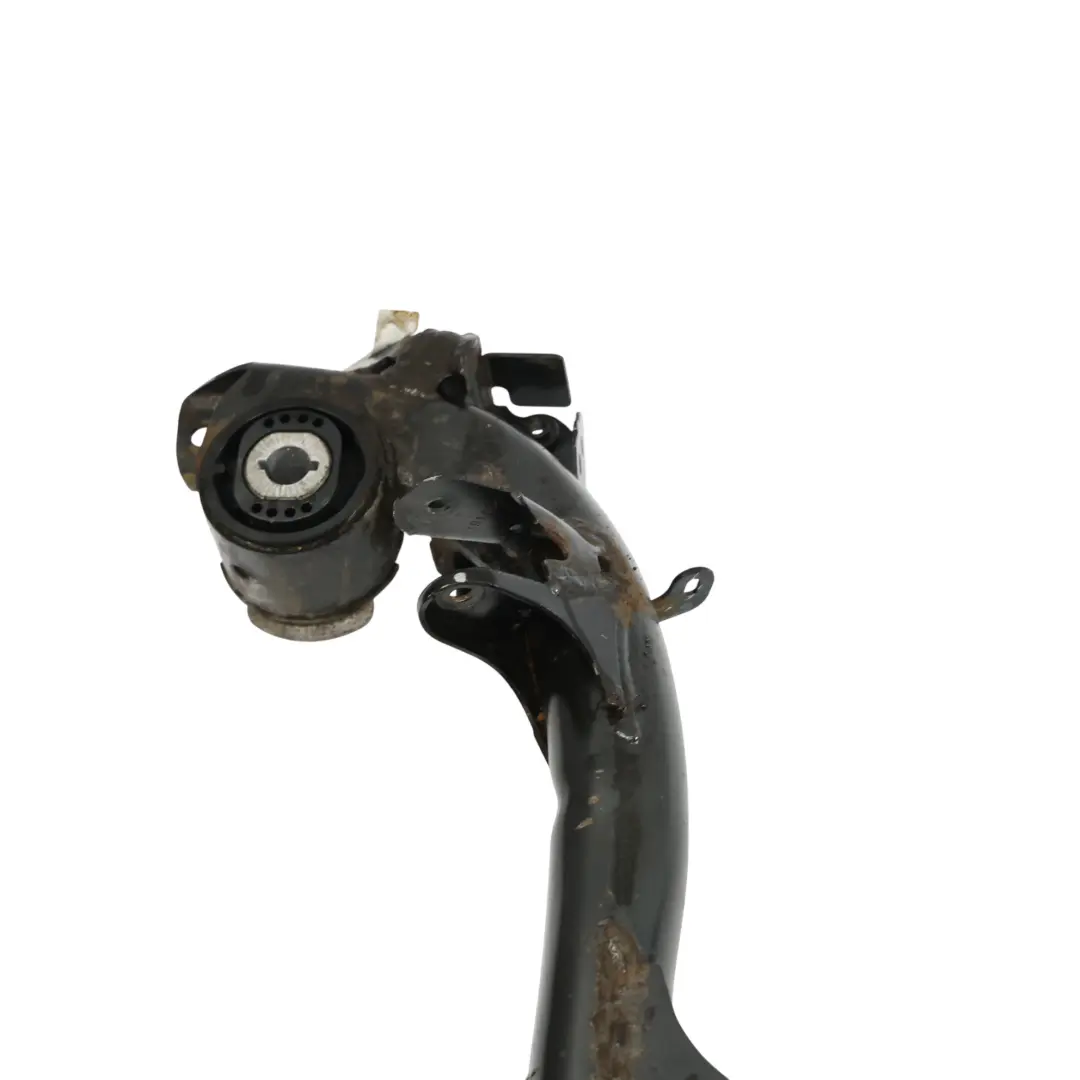

Visual condition of the part

The product shows signs of use visible in the photos.

Audi A4 B9 Rear Axle Suspension Cradle Subframe Mounting is a factory-made structural component designed for the rear suspension, providing stable support for key driving sub-assemblies. Thanks to its precise geometry and fitment for the A4 B9 platform, this original rear suspension subframe allows for the restoration of proper body rigidity and correct suspension operation following a collision, corrosion, or major body-mechanical repair. This is a solution for users who expect compliance with factory manufacturer specifications and predictable vehicle handling on the road.

Specifications and technical data

• SKU: 8W0505235AE
• Mark: Audi
• Condition: Used
• OEM Part Number: 8W0505235AE
• Substitutable numbers: 8W0505235AE, 8W0 505 235 AE
• Location on the vehicle: Rear
• Category: Frame Rails & Subframes

Purpose and function in the Audi A4 B9 structure

The rear suspension cradle in the Audi A4 B9 serves as a load-bearing element for the chassis components and partially for the body structure. It is a component from the Longitudinal body frame parts and brackets group, which is responsible for:

• maintaining the correct geometry of the rear axle,
• stable mounting of suspension elements and wheel guidance systems,
• transferring loads from the road to the body in a controlled manner,
• limiting structural deformation during dynamic driving.

A properly selected and correctly installed cradle allows for the preservation of factory handling parameters, which translates into predictable vehicle reactions, even tire wear, and correct cooperation with safety systems.

Vehicle placement and installation aspects

The presented suspension subframe is intended for installation in the rear part of the vehicle. Its design is matched to the mounting points in the Audi A4 B9 body, which enables installation in accordance with factory repair technology. In practice, this means:

• preserving original reference points for suspension geometry,
• the ability to correctly set wheel alignment and camber angles,
• easier verification of repair correctness on a measuring frame or using laser systems.

Replacing the cradle is particularly recommended after mechanical damage, severe corrosion, or deformations that prevent the correct adjustment of the rear axle geometry.

Product characteristics and advantages of using OEM parts

The rear suspension cradle from Audi has been designed as an OEM element, which means full compatibility with the A4 B9 model structure. Compared to aftermarket replacements, using an original suspension subframe ensures:

• material consistency with the rest of the body structure,
• appropriate torsional rigidity and fatigue strength,
• compatibility with factory suspension and equipment mounting points.

For workshops specializing in post-accident repairs and for users who care about maintaining factory driving characteristics, using such a cradle is a technically justified and long-term beneficial solution.

Part condition and use in repairs

The offered cradle belongs to the group of used parts, which allows for economical repair while maintaining the original Audi structural specification. This type of element is particularly useful in situations where:

• damage to the rear suspension has occurred as a result of a collision,
• permanent deformations have been identified that prevent correct geometry adjustment,
• it is necessary to replace the entire suspension cradle for technological reasons.

The selection of the correct cradle for a specific version of the Audi A4 B9 should take into account the manufacturer's markings and structural parameters, which minimizes the risk of installation problems and ensures correct cooperation with other elements of the chassis.

If you are planning a comprehensive repair or upgrade of the rear suspension load-bearing zone in your Audi and need other elements from the same group, such as cradles, brackets, or longitudinal frame elements, check out the available parts in the Longitudinal body frame parts and brackets Audi category.

Safety, operation, and preparation for the season

The condition of the rear suspension frame has a direct impact on driving safety, especially under heavy loads, on long routes, and in difficult weather conditions. Improper geometry or structural damage can cause vehicle instability, increased tire wear, and incorrect operation of driver assistance systems.

Before the winter season, it is worth verifying the condition of the suspension load-bearing elements, especially in cars operated in conditions of intense road salting. Practical checklists and tips on assessing the condition of used components can be found in the article Winter essentials: which used car parts are worth checking and replacing before the frost?, which will facilitate planning an informed and safe repair of your Audi.
