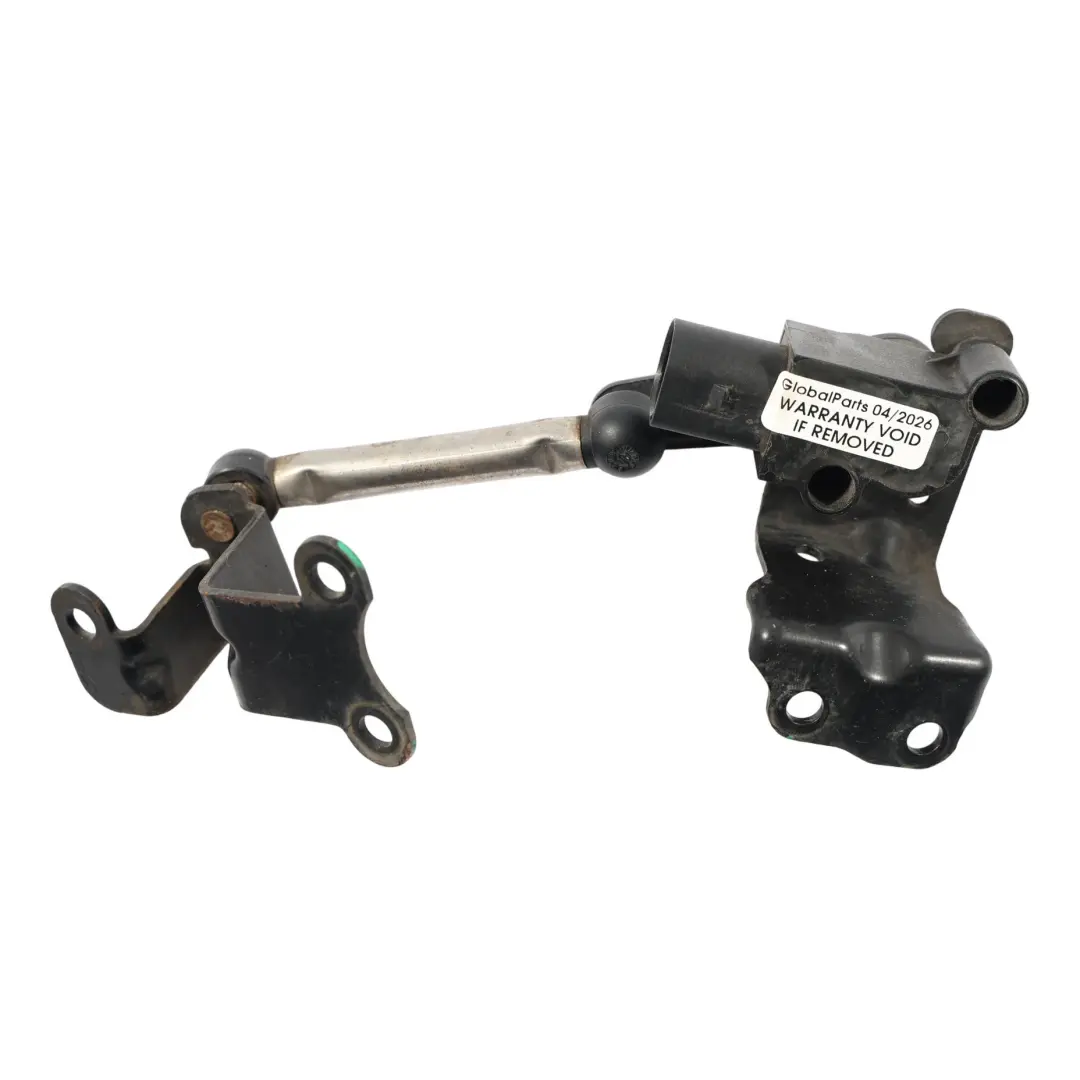

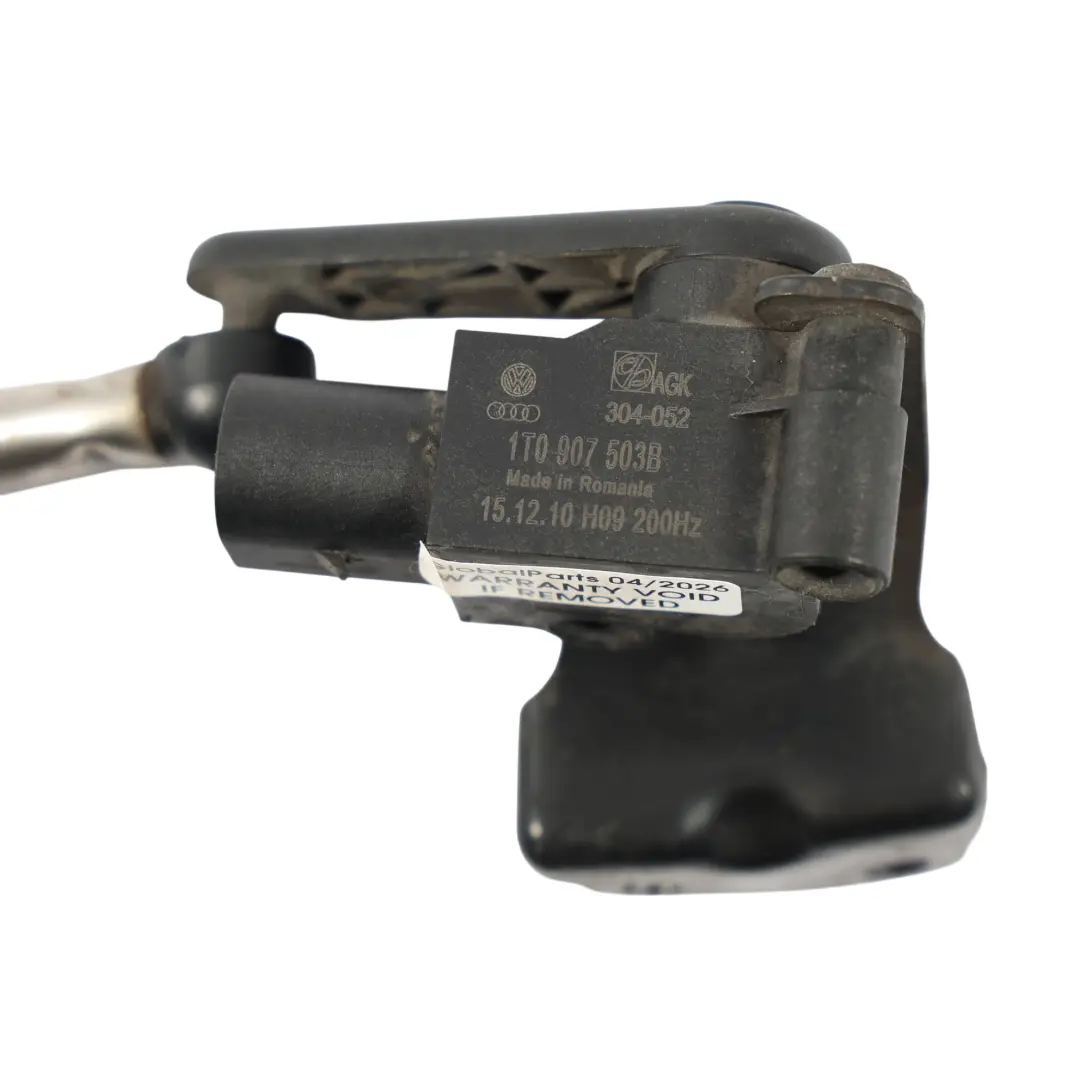

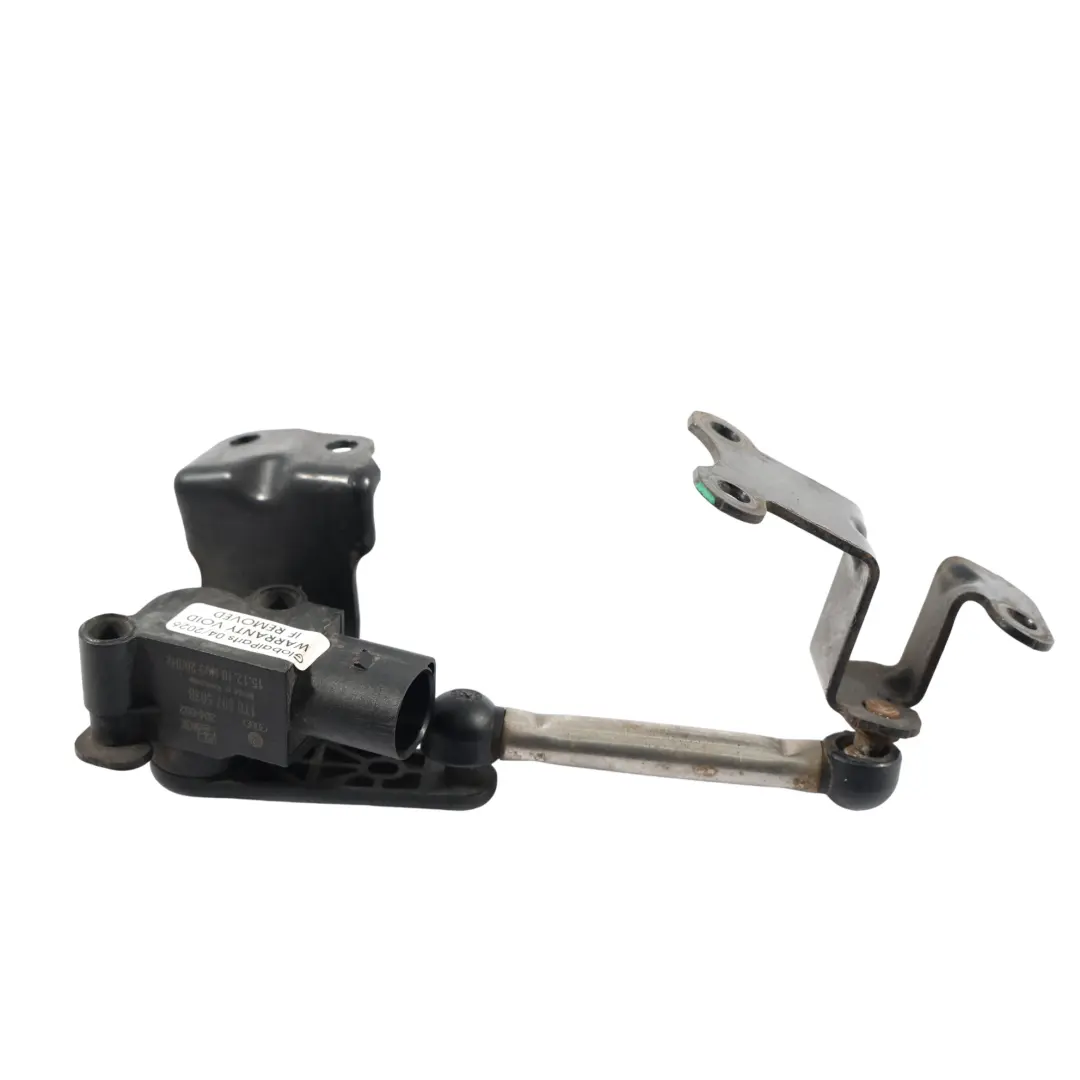

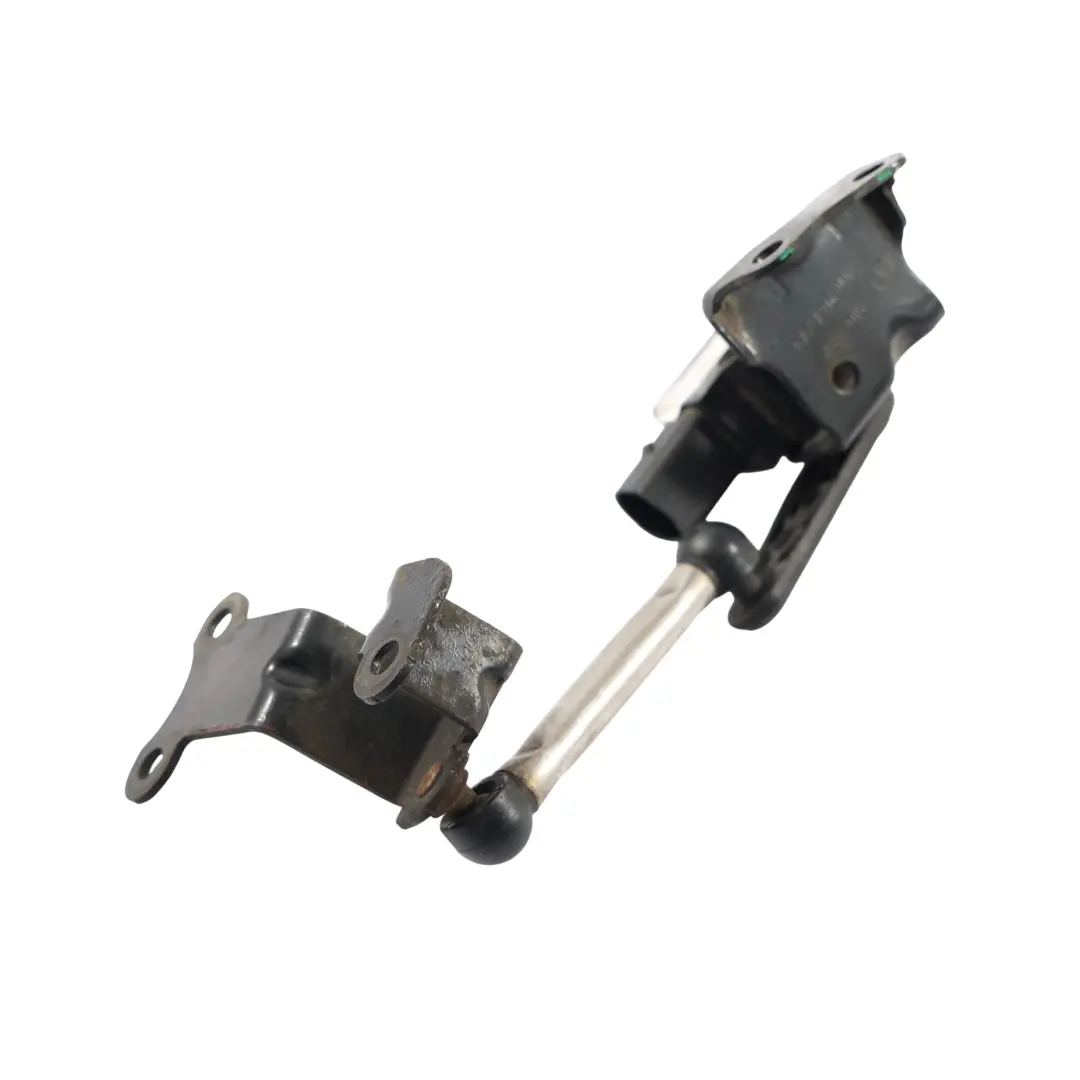

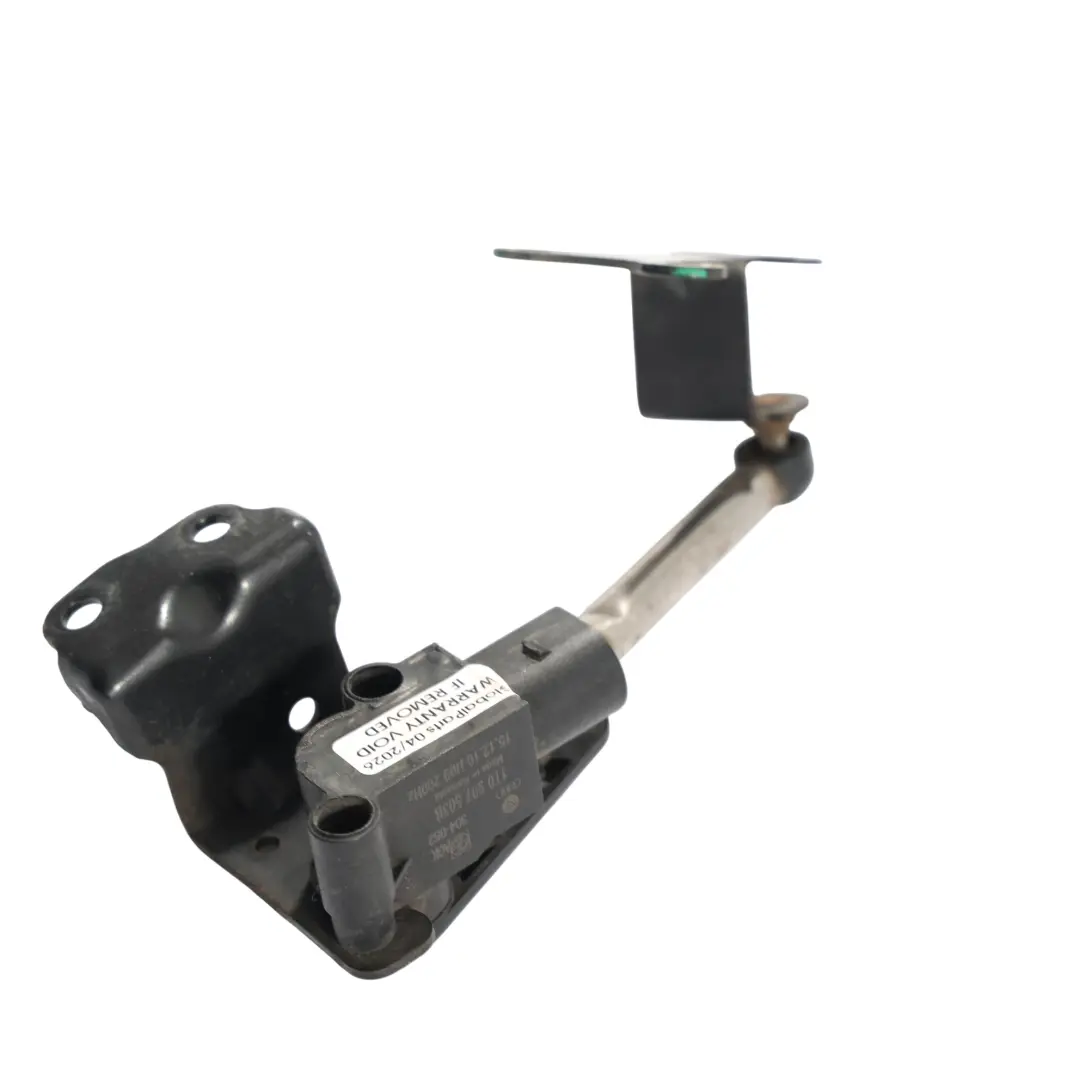

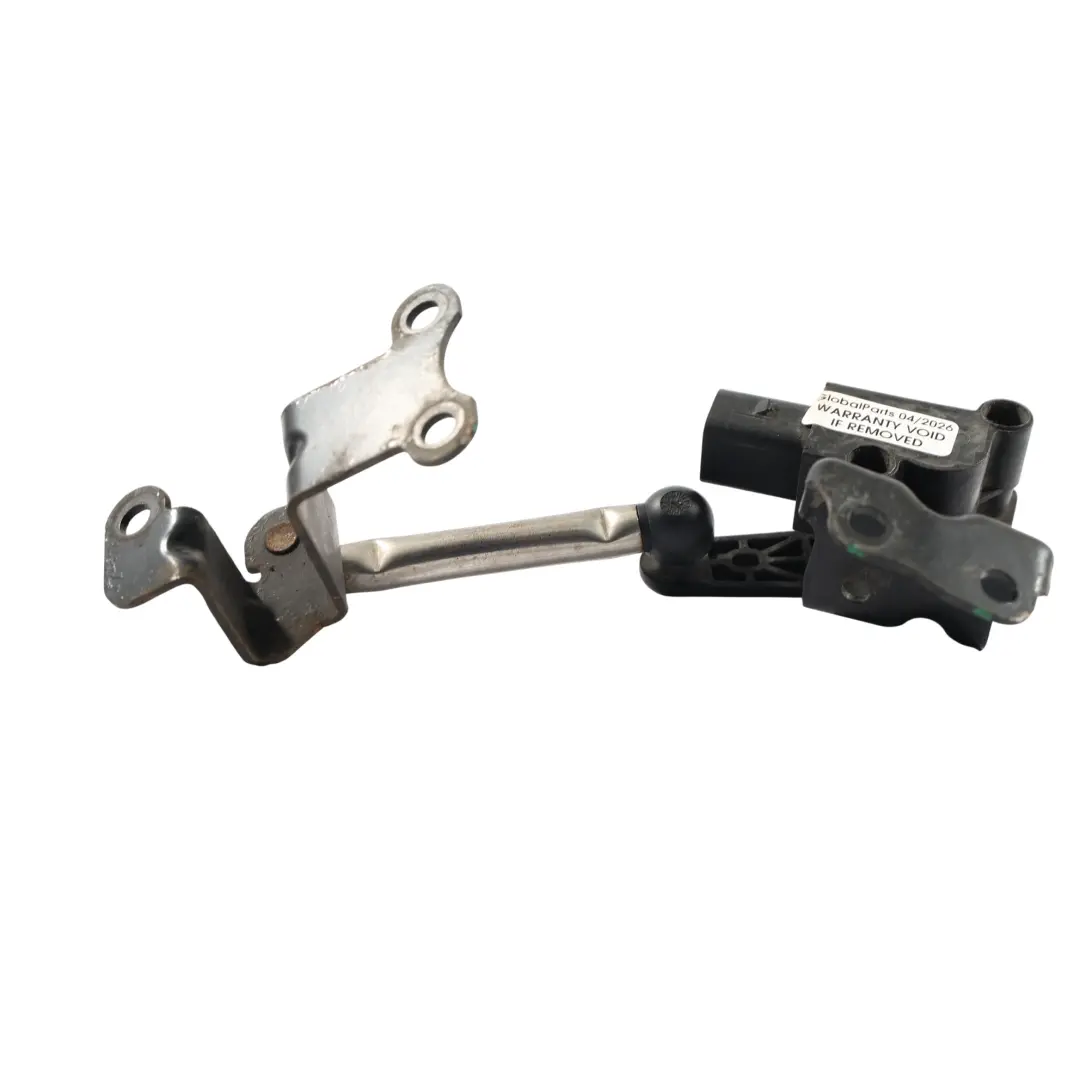

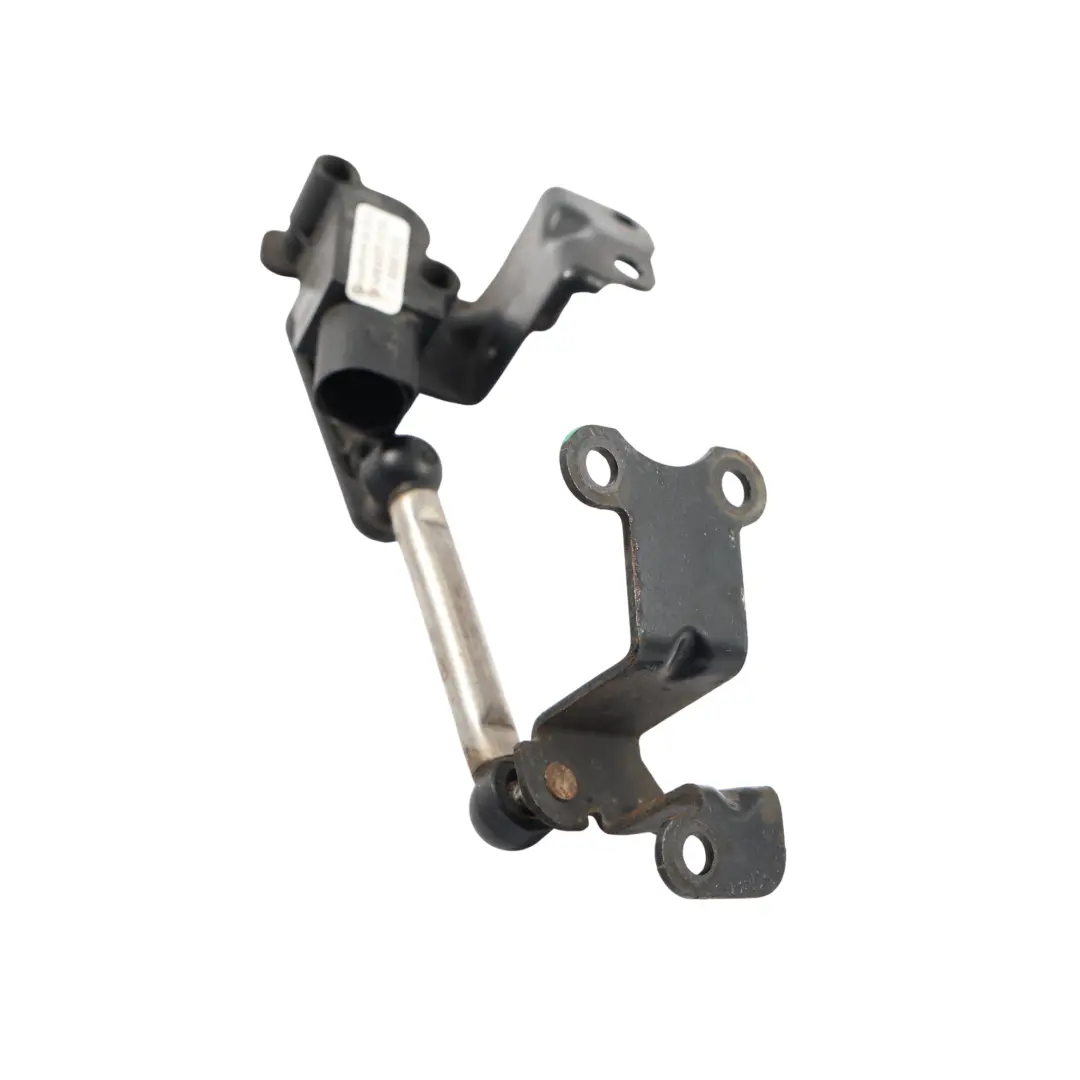

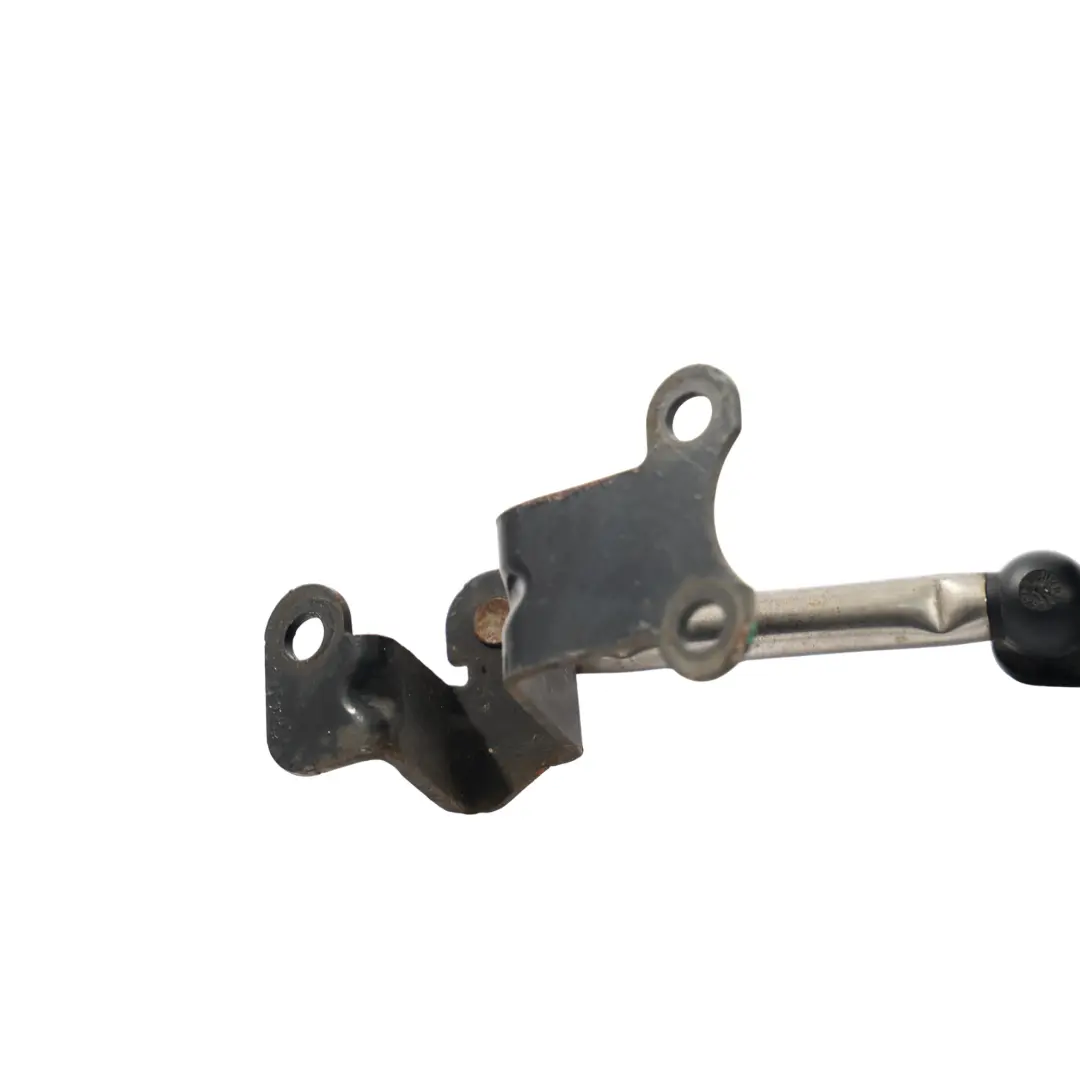

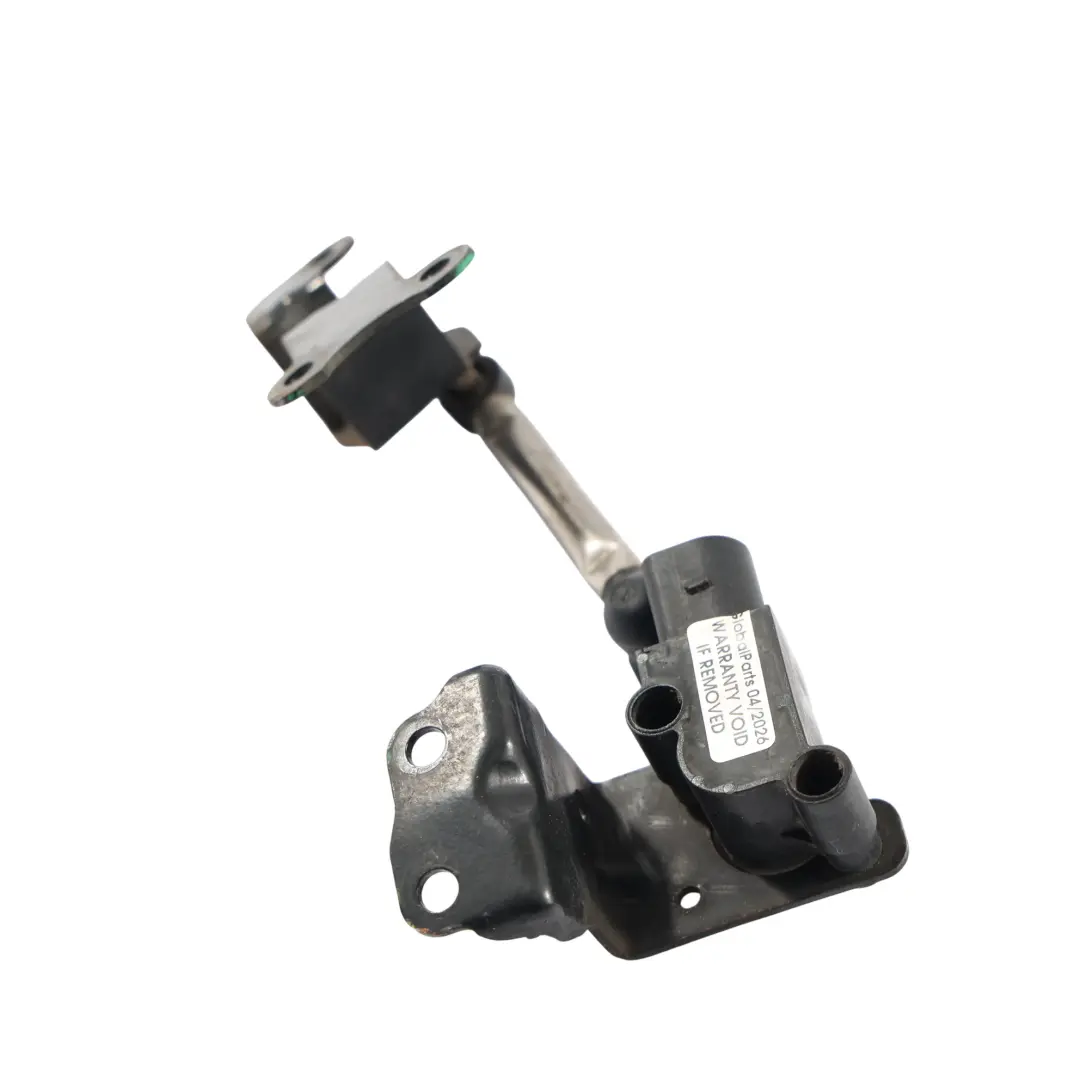

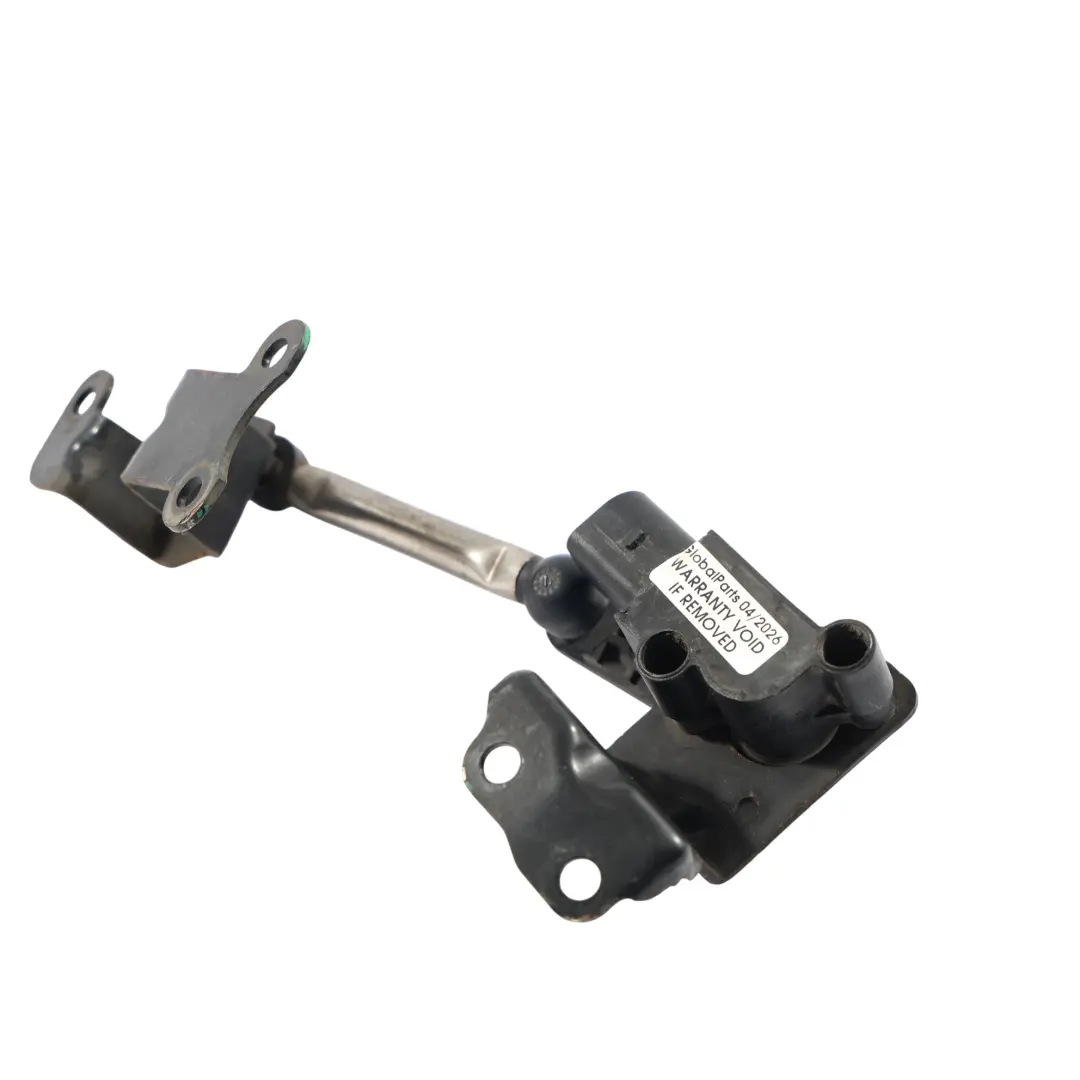

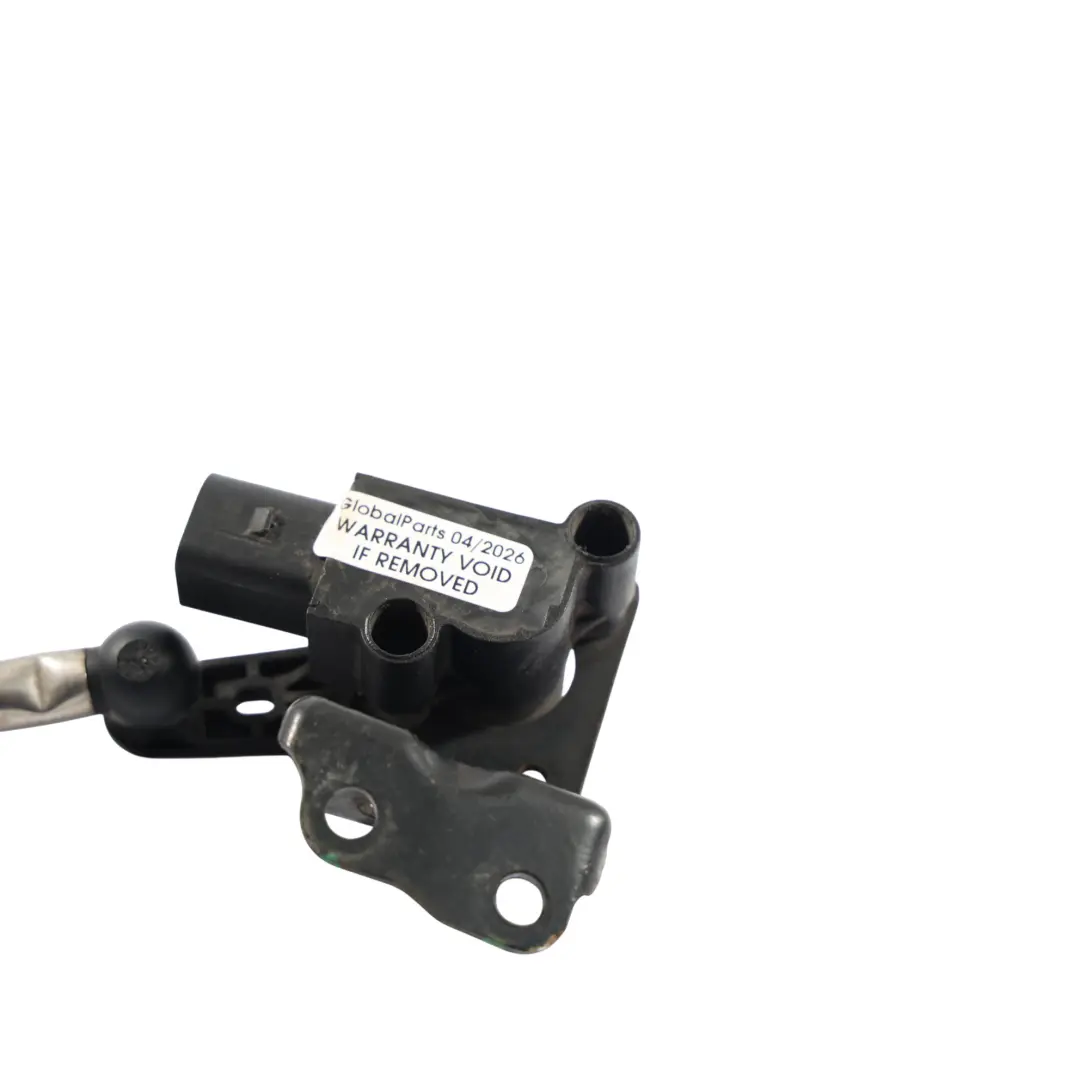

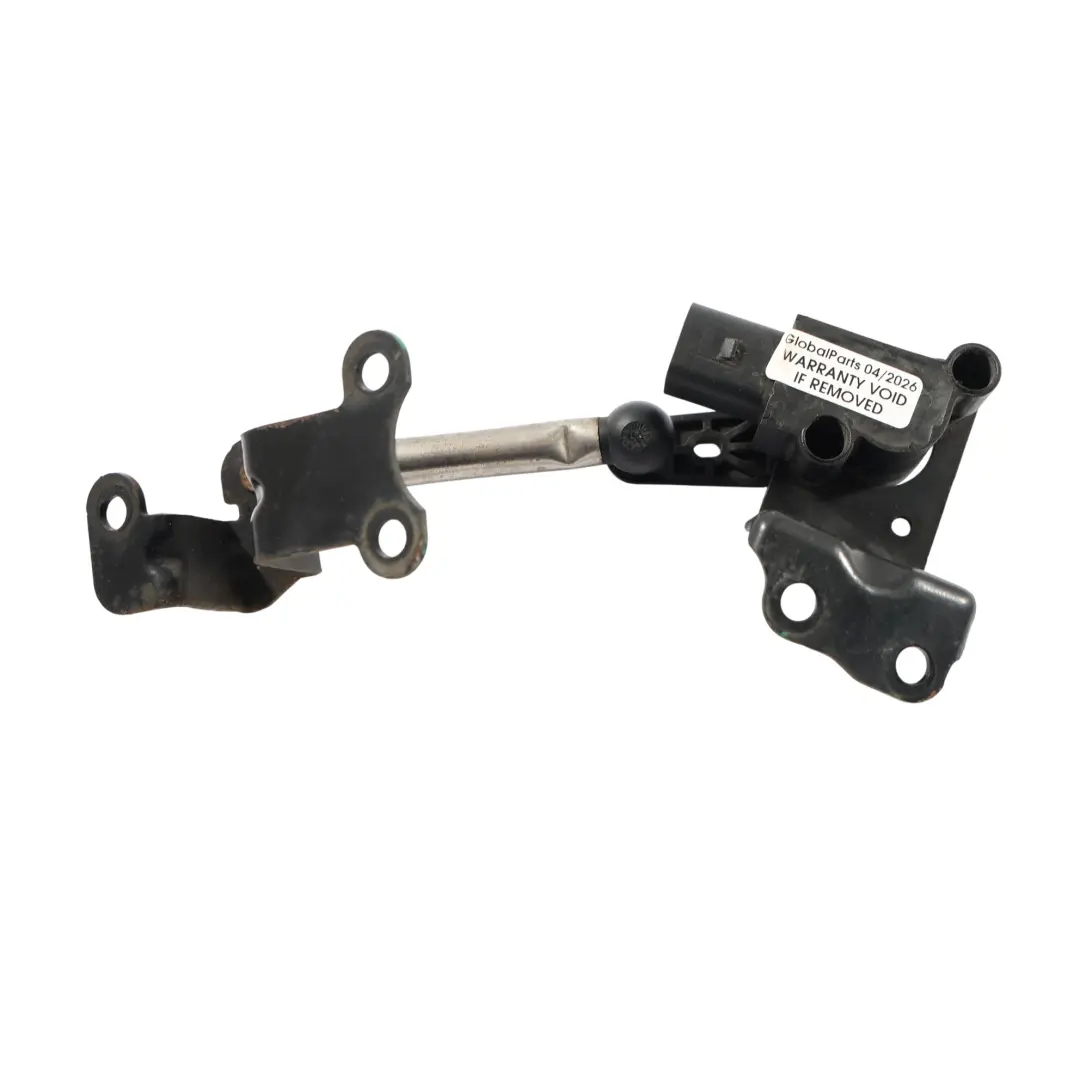

Volkswagen Sharan 7N Headlight Level Sensor Module Control Unit 1T0907503B

Volkswagen Sharan 7N Headlight Level Sensor Module Control Unit is a component from the Electronic control modules and controllers group, responsible for precisely transmitting information about the body position to the headlight adjustment system. Thanks to this, the lighting system maintains a stable beam angle, which improves visibility and driving comfort of the Sharan 7N in various vehicle load conditions.

Specifications and technical data

• SKU: 1T0907503B-1
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 1T0907503B
• Substitutable numbers: 1T0907503B, 1T0 907 503 B
• Location on the vehicle: Left
• Category: ECUs & Computer Modules

Function and role of the headlight level sensor

The headlight level sensor in the Volkswagen Sharan 7N works with the headlight control system, monitoring changes in the body position relative to the road axis. Based on the signal from the sensor, the controller corrects the headlight setting, limiting the glare for other road users and maintaining a stable light beam range.

As a component from the Electronic control modules and controllers group, the sensor generates an electrical signal proportional to the current suspension deflection. A properly functioning module is particularly important in vehicles frequently operated with a full load, when towing a trailer, or on the road, where stable road lighting directly affects driving safety.

Placement and integration with the vehicle

The presented sensor is designed for installation on the left side of the vehicle, in accordance with the factory design concept of the Sharan 7N. This placement ensures the correct working geometry of the lever and linkage relative to the suspension components, which translates into repeatability of readings and stable cooperation with the headlight control system.

Integration with the electrical system is carried out via a dedicated wiring harness and a connector provided by the manufacturer. Thanks to this, the sensor works with the factory controller without the need for installation modifications, and the diagnosis of any faults can be carried out with standard service tools supporting Volkswagen systems.

Characteristics of the used component

The offered headlight level sensor is a used component, sourced from dismantling. Such components are often chosen as an economical alternative to new parts, especially in the case of advanced electronic control modules, where the cost of brand-new subassemblies is relatively high.

In practice, installing a functional sensor from dismantling allows for restoring the proper operation of automatic headlight leveling, reducing errors saved in the controller's memory, and eliminating warning messages on the instrument cluster. This solution is often chosen both by workshops specializing in the Volkswagen brand and by conscious users servicing their vehicles themselves.

Application in diagnostics and lighting system repairs

In the case of symptoms such as unstable headlight setting, lack of reaction to changes in vehicle load, or errors related to headlight leveling, replacing the sensor on the left side is one of the basic service steps. This element is an important link between the suspension mechanics and the control electronics, which is why its efficiency has a direct impact on the operation of the entire system.

Selecting the right sensor for the Sharan 7N is facilitated by the presence of dedicated manufacturer markings and its belonging to the Electronic control modules and controllers category, which allows for quick identification of a compatible element in the parts catalog. Proper fitment is crucial to avoid communication problems on the data bus and to ensure correct signal interpretation by the controller.

System expansion and selection of related modules

If you are planning a comprehensive repair or upgrade of the electronic systems area responsible for lighting and driving comfort in your Volkswagen and need other elements from the same group, such as light controllers, body modules, or additional control units, check the available parts in the Volkswagen electronic control modules and controllers category.
