BMW 5 Series F10 F11 LCI Cable Harness Loom Front Door Wiring 9291048

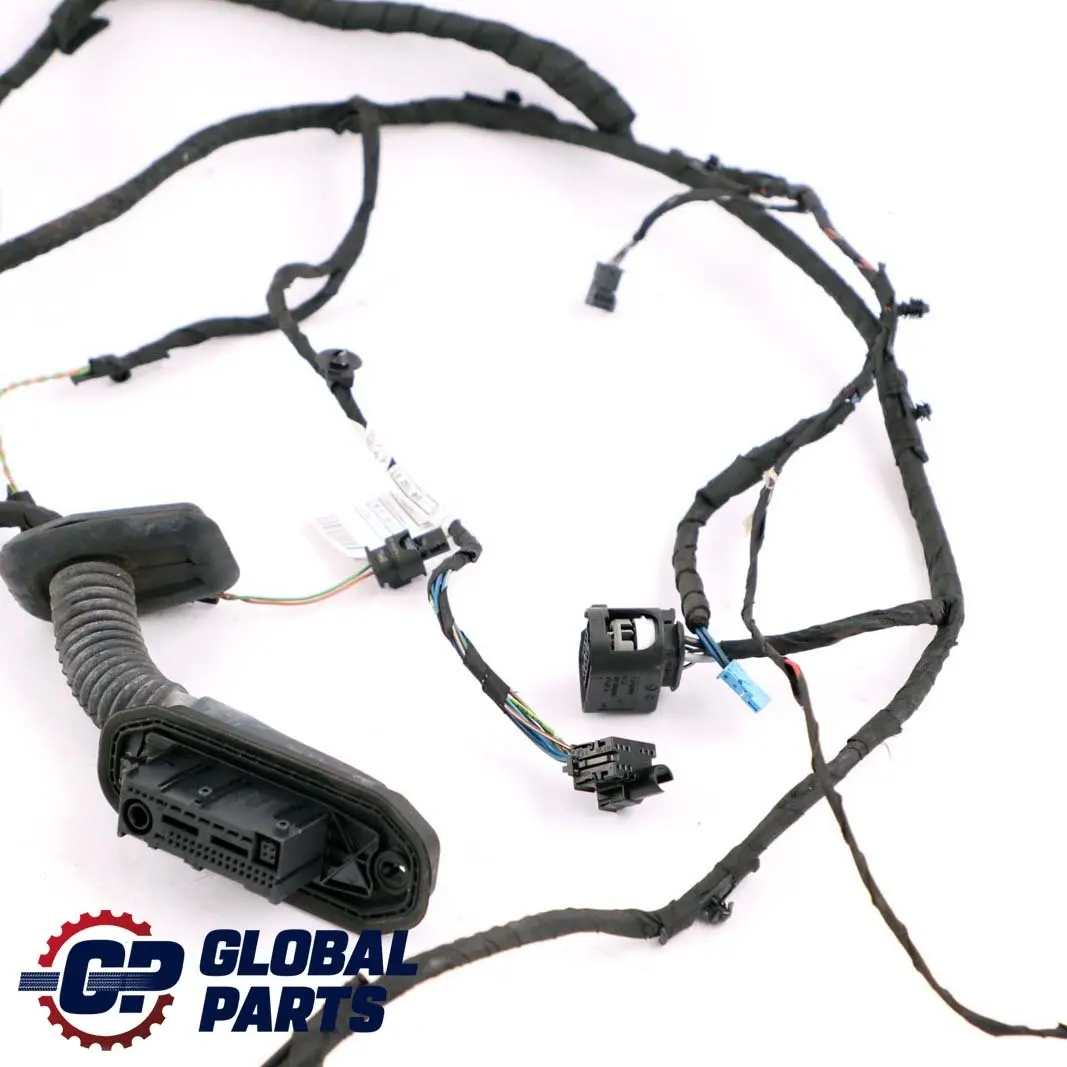

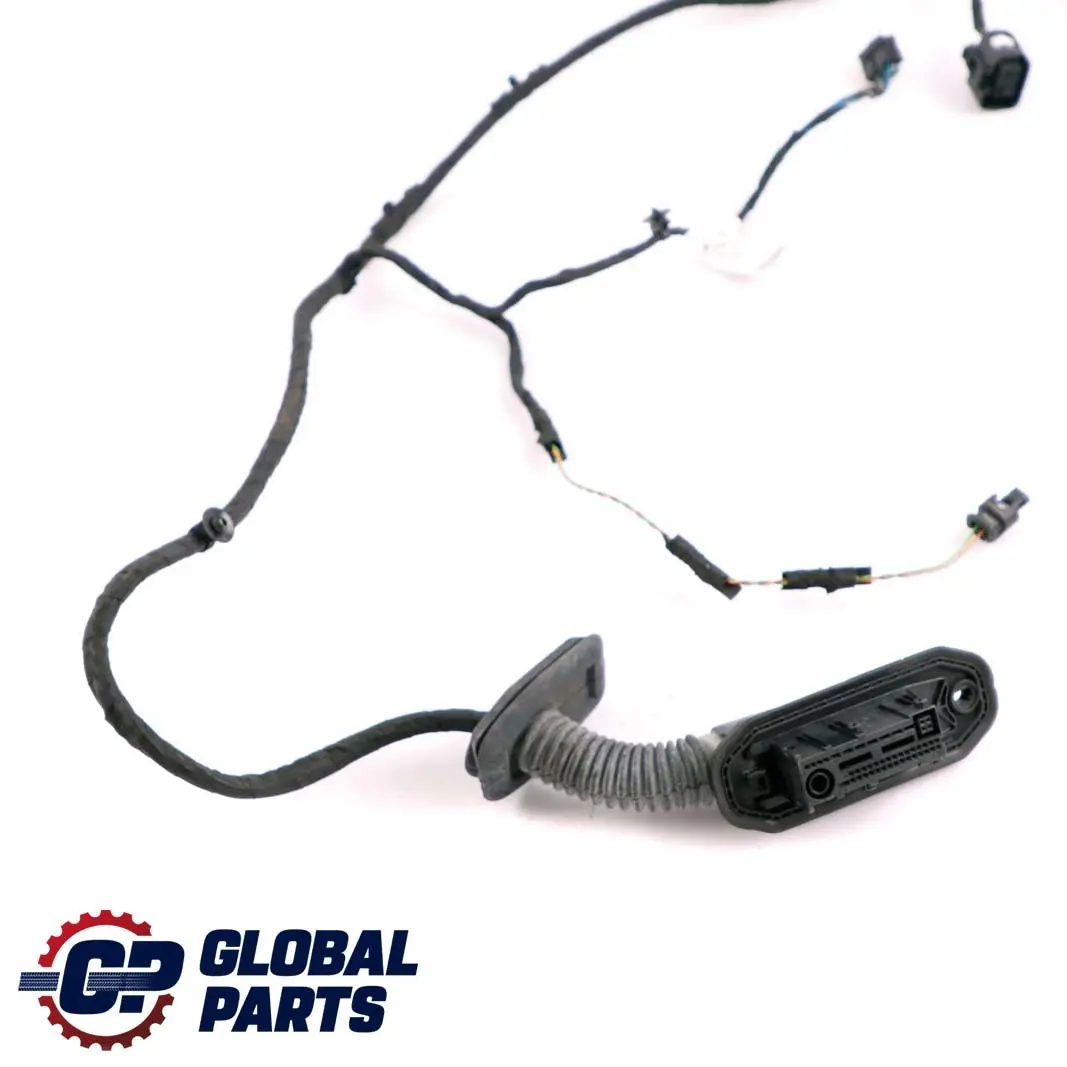

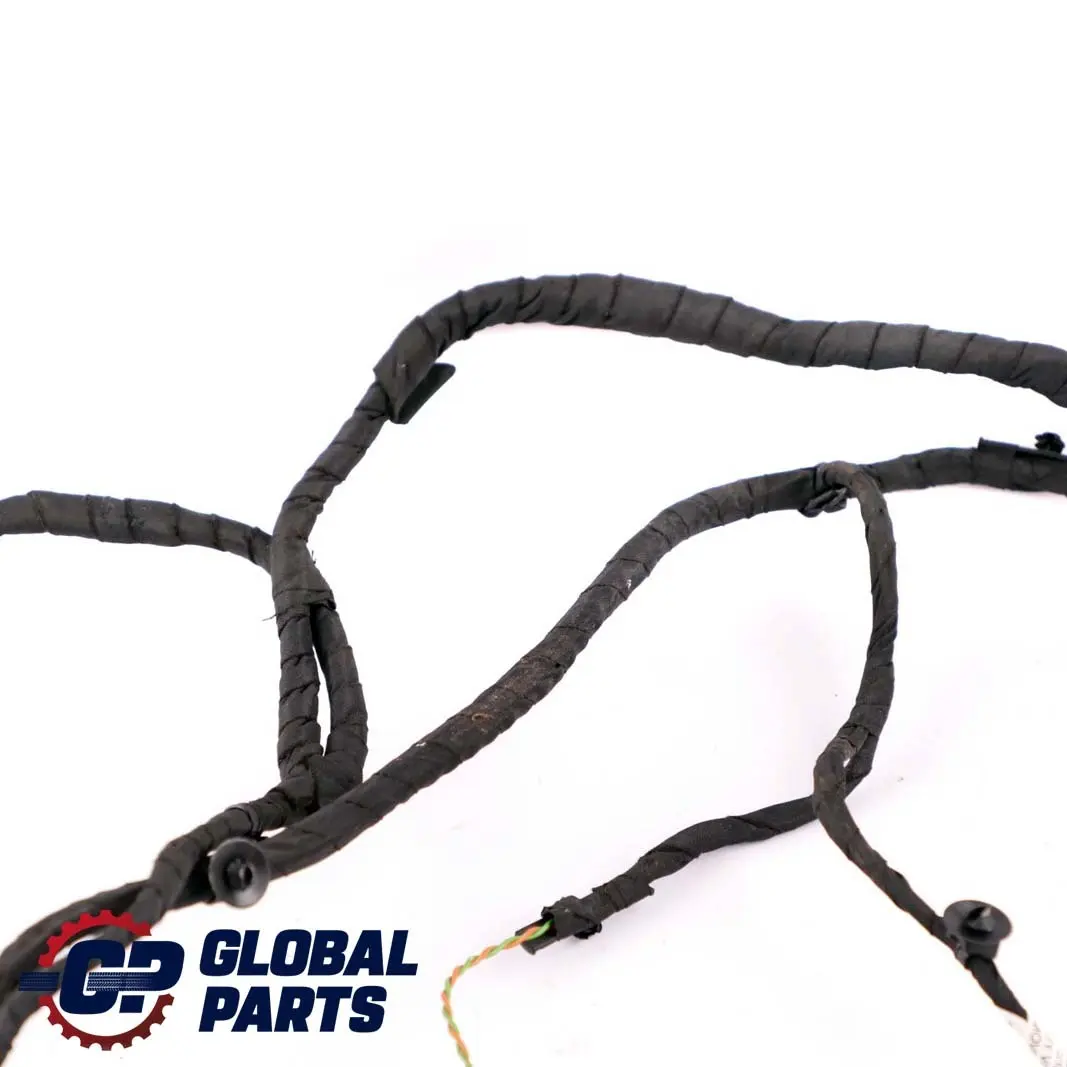

Visual condition of the part

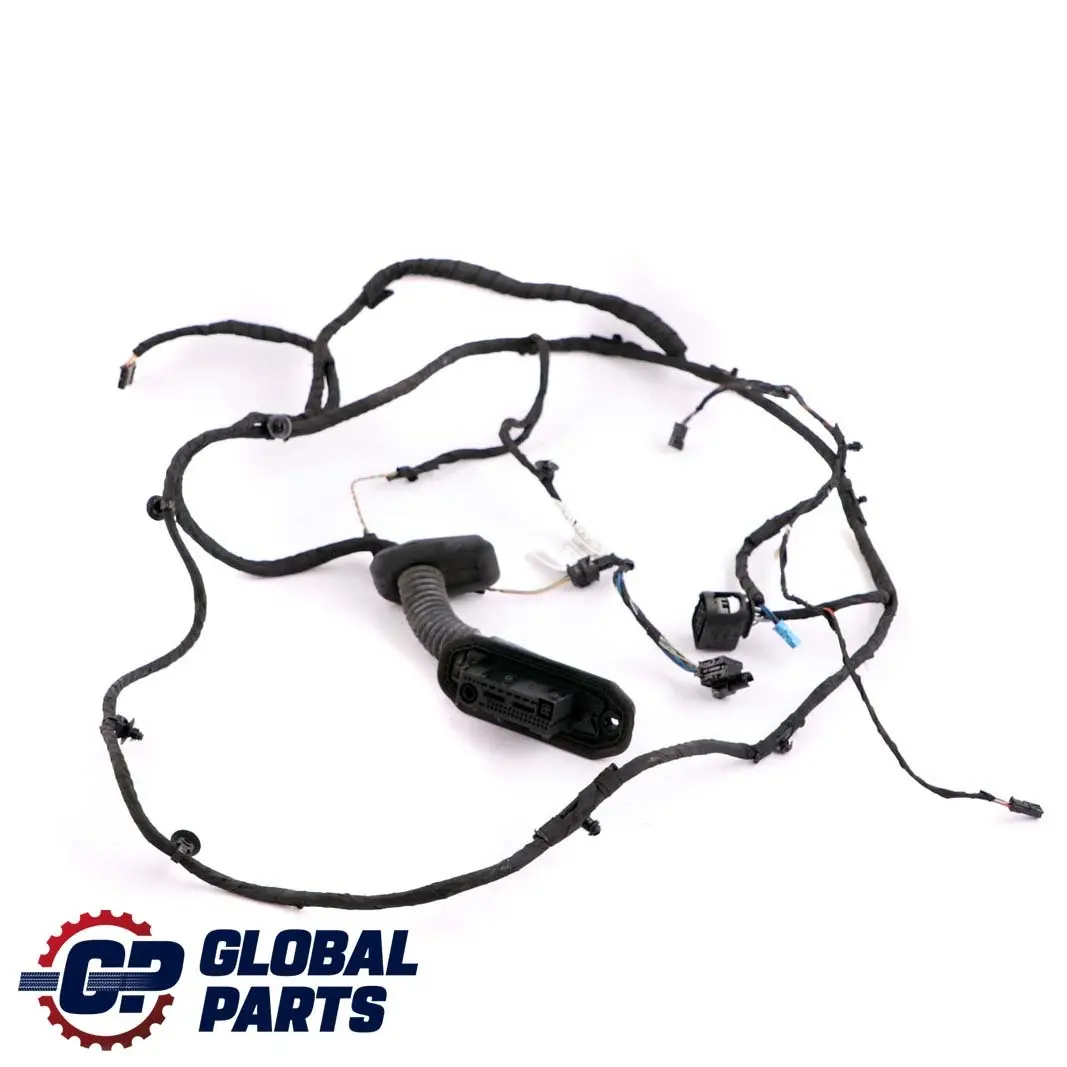

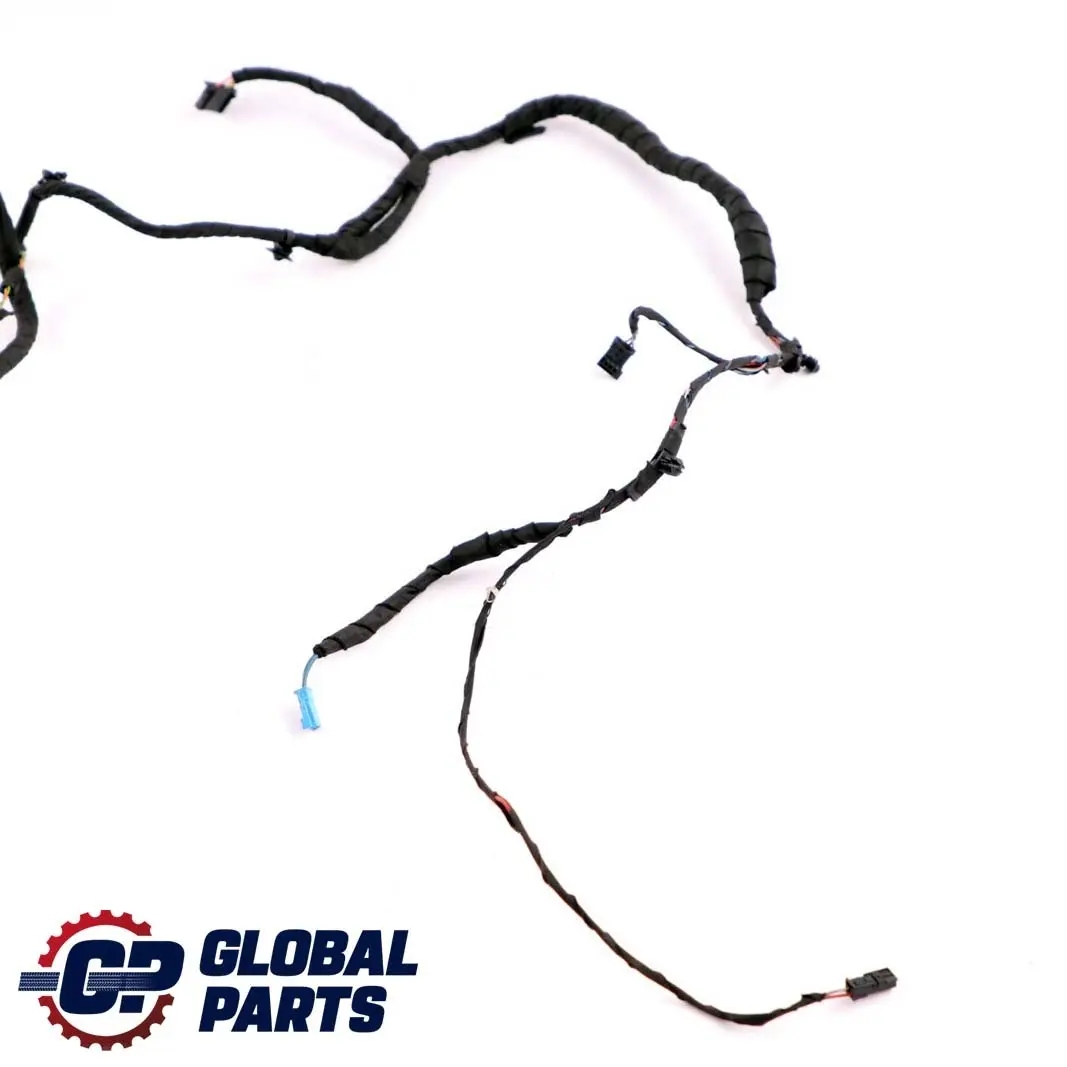

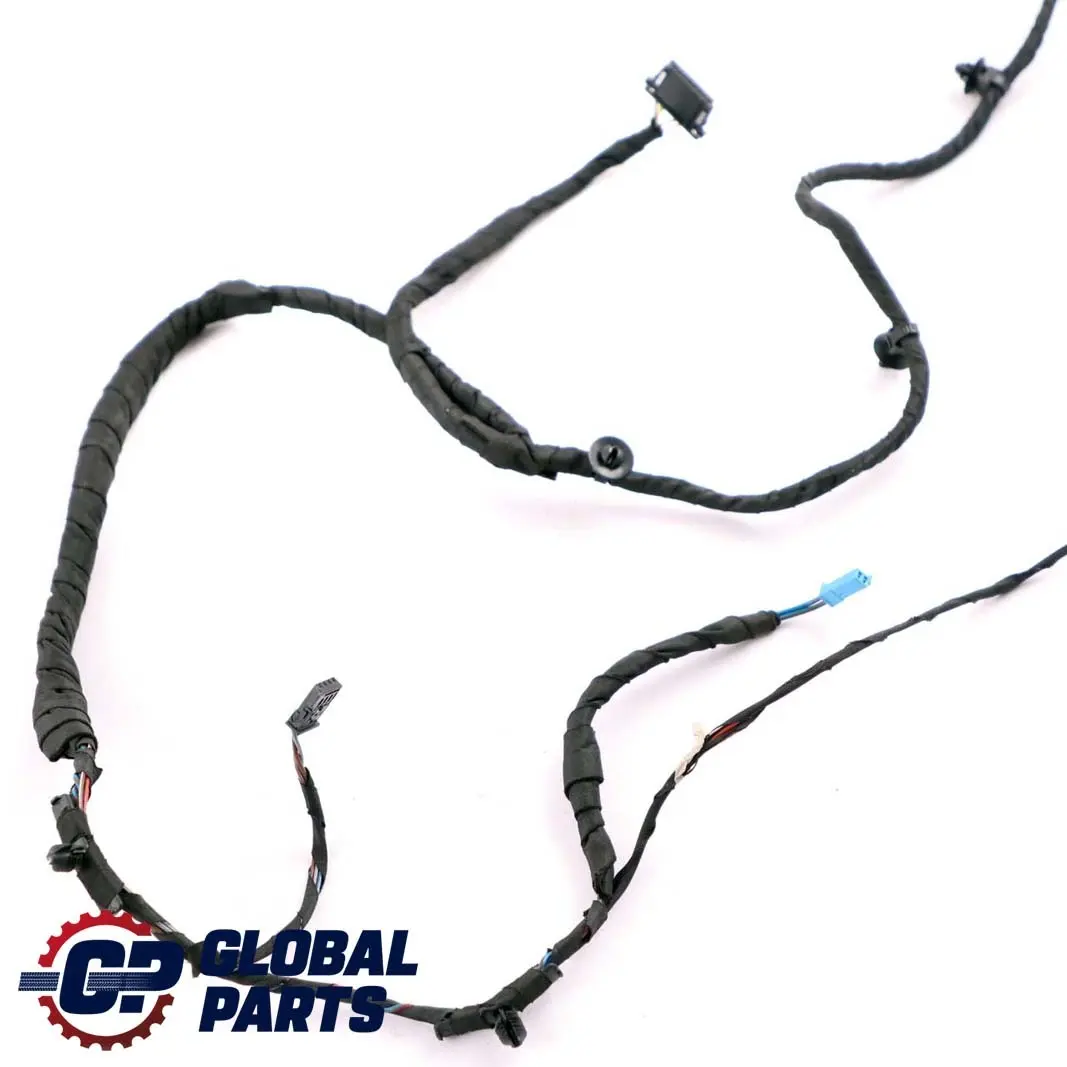

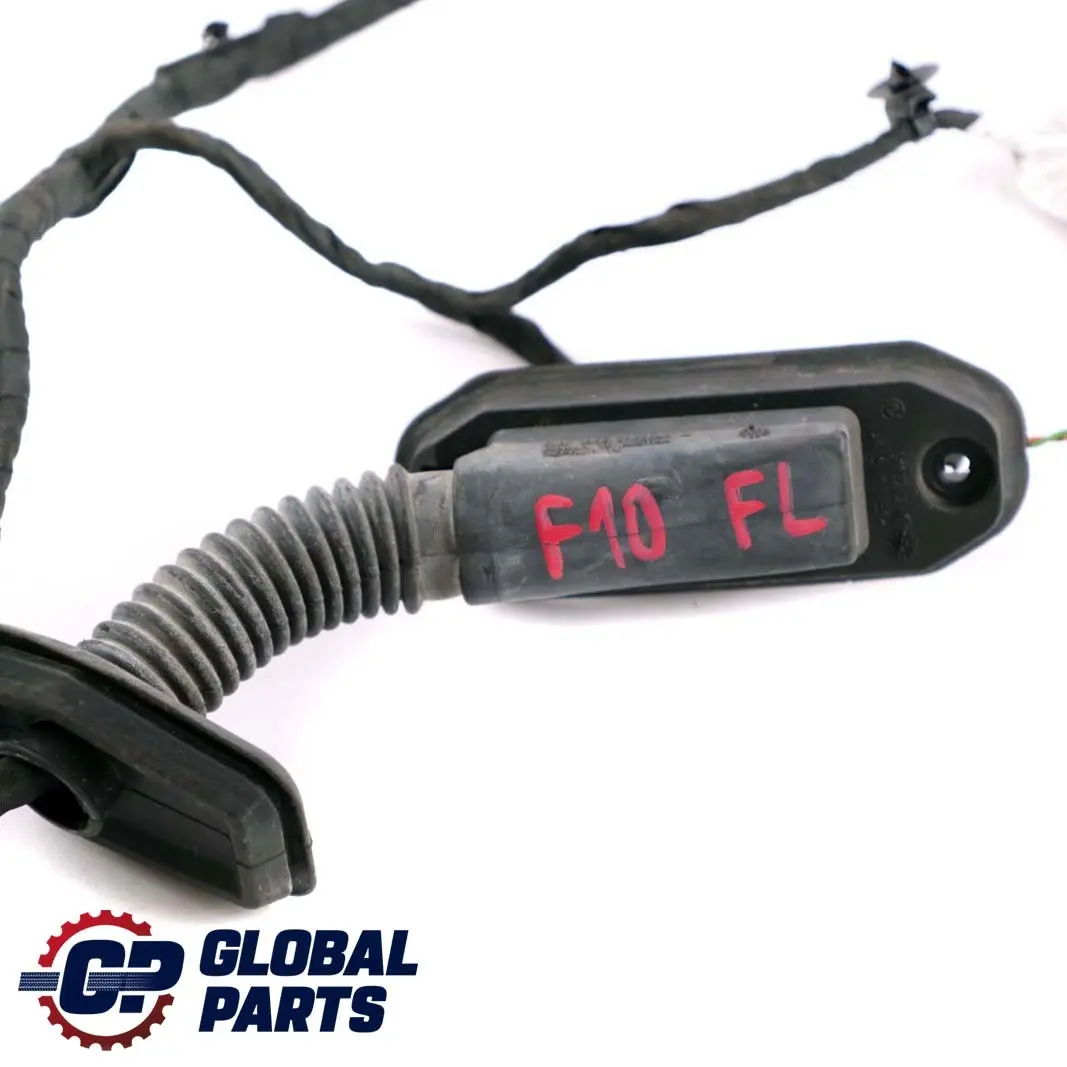

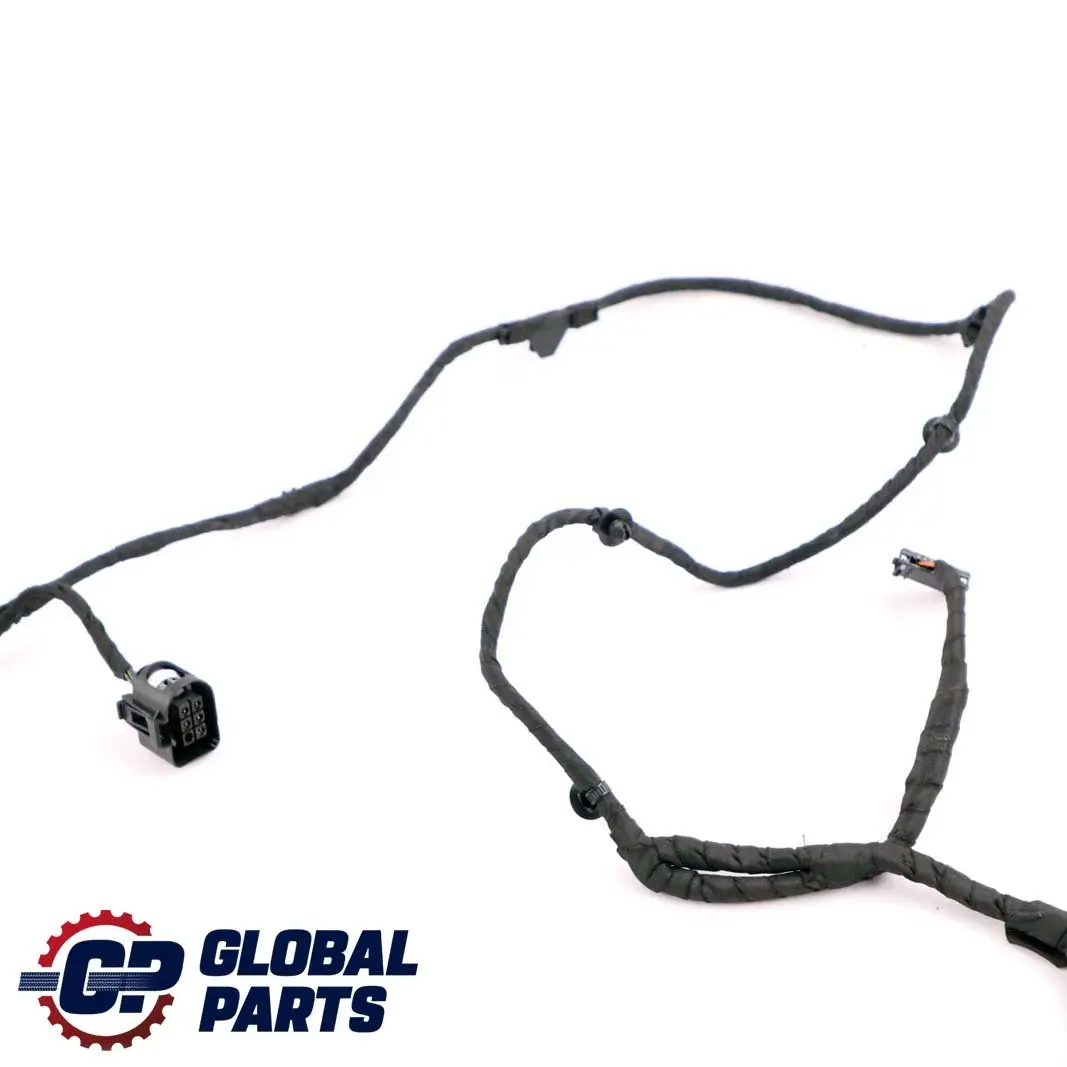

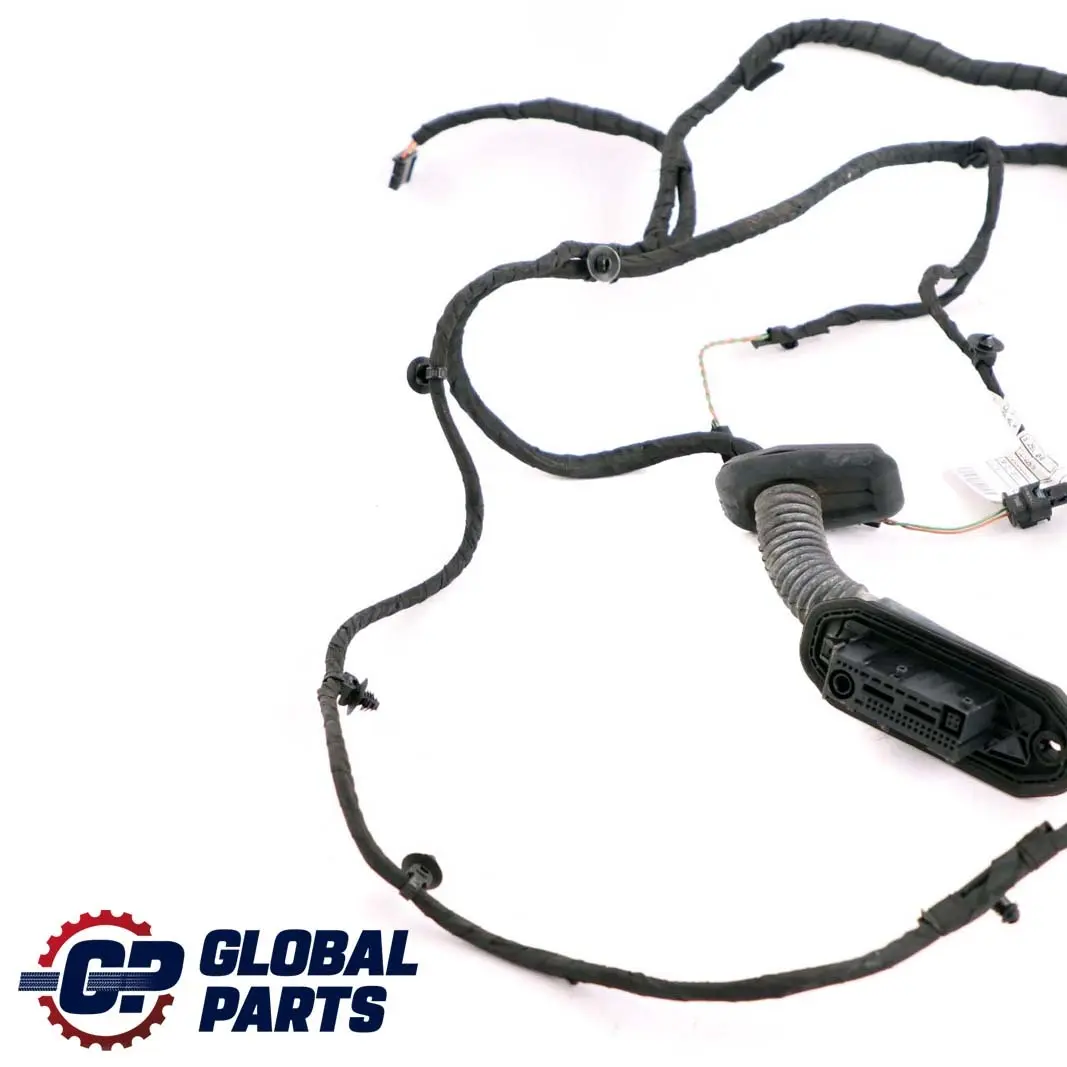

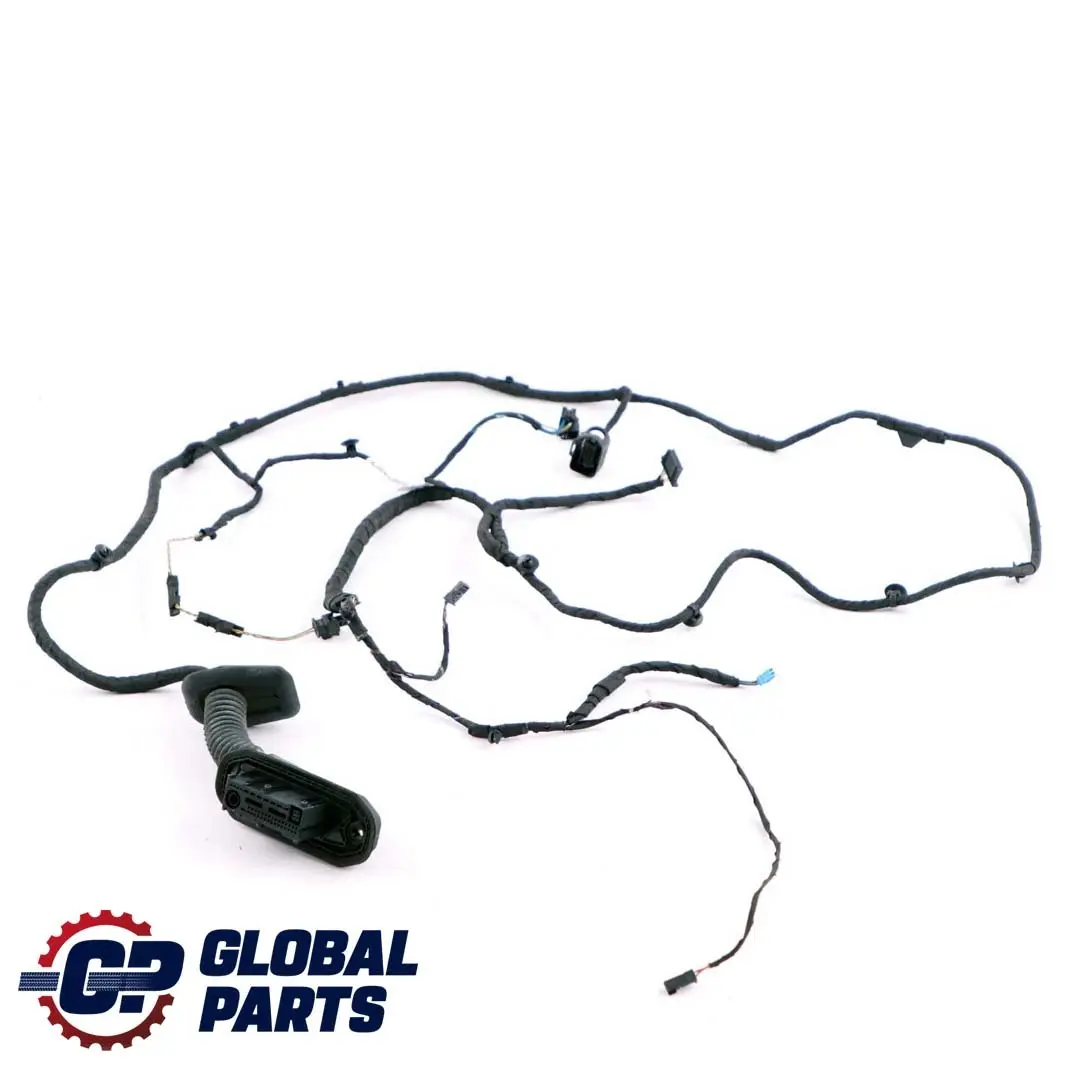

The product shows signs of use visible in the photos.

BMW 5 Series F10 F11 LCI Cable Harness Loom Front Door Wiring is an original door wiring harness designed for the front body section, ideal for professional electrical system repairs in facelifted BMW 5 Series models. Thanks to its factory design, it ensures correct electrical signal routing and a stable connection between body modules and door equipment. This is a practical solution for workshops and users who want to restore full door electrical functionality without compromising on quality.

Specifications and technical data

• SKU: 9291048
• Mark: BMW (Genuine OE)
• Condition: Used

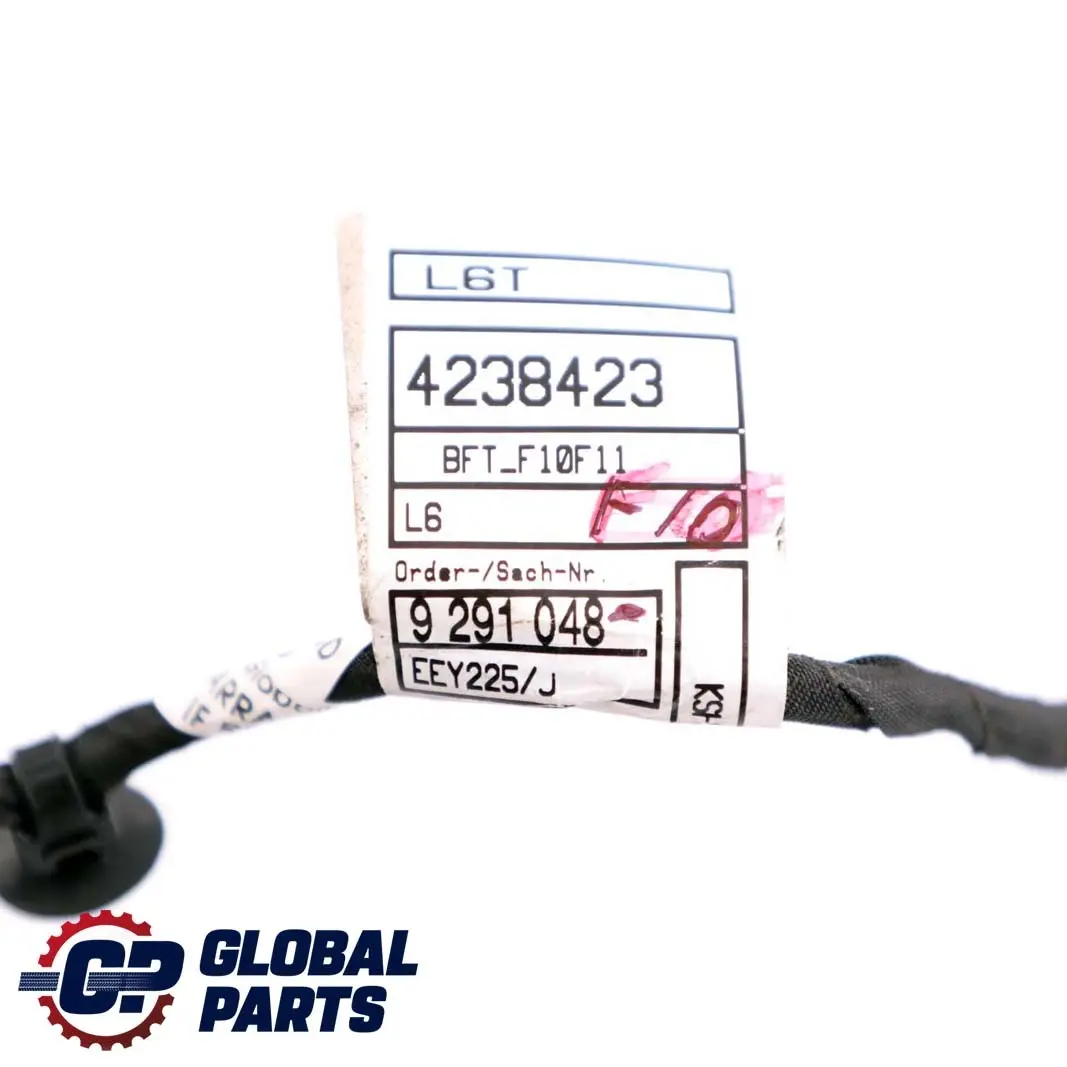

• OEM Part Number: 9291048

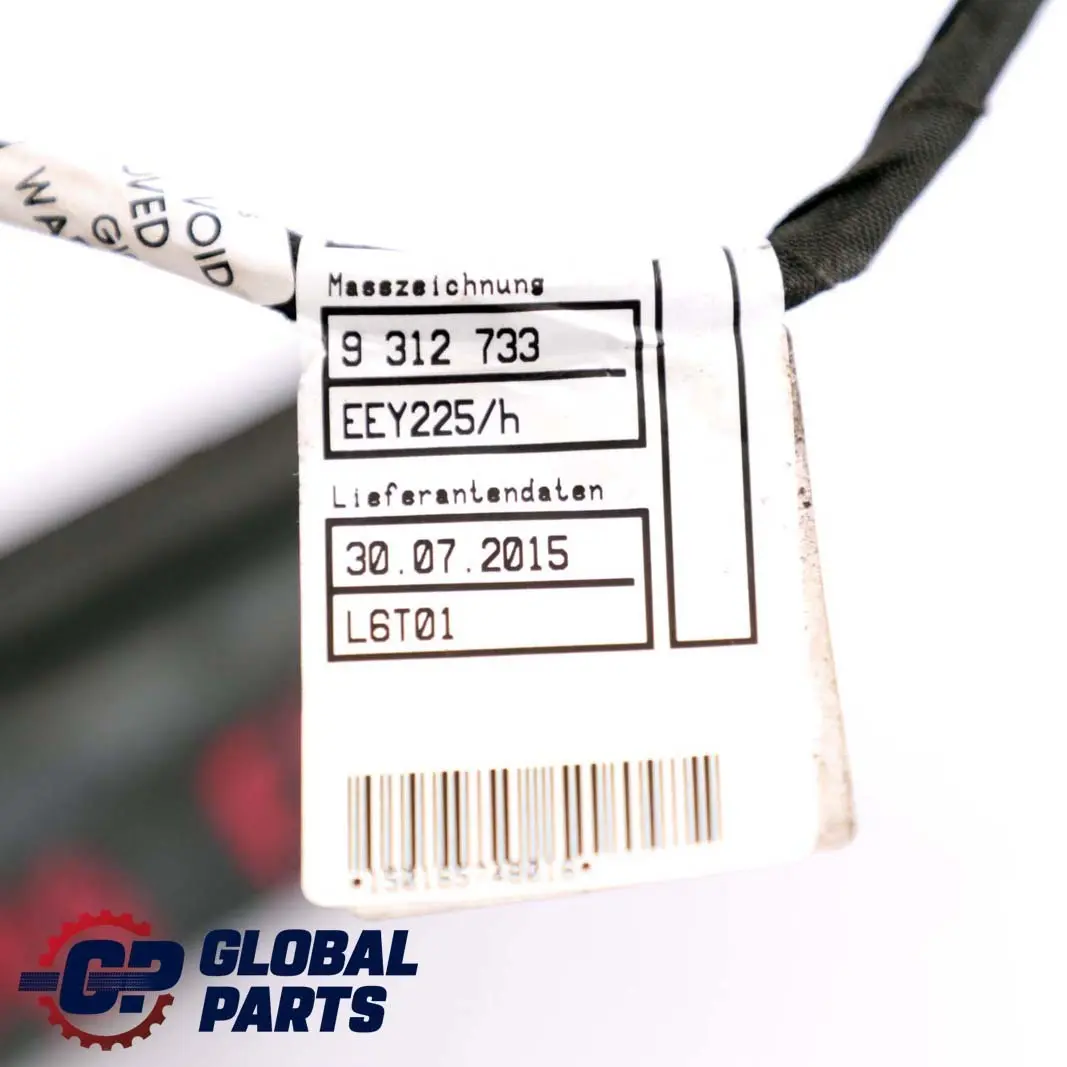

• Substitutable numbers: 9291048, 9312733
• Location on the vehicle: Front
• Category: Doors & Door Skins

Purpose and function of the BMW front door wiring harness

The presented wiring harness is an electrical system component responsible for power supply and signal transmission to components located in the front doors of the BMW. It includes circuits routed from the body to the door, which allows for the proper operation of elements such as window controls, central locking, mirrors, or door lighting (depending on the vehicle configuration). Its placement in the front area of the vehicle helps maintain consistency with the factory electrical system and facilitates the diagnosis of potential faults.

Benefits of using original door wiring

Using a factory wiring harness in the front doors of a BMW allows you to maintain compliance with the manufacturer's technical documentation and reduce the risk of communication issues between control modules. Key advantages include:

• consistent electrical architecture tailored to the specific generation of the facelifted BMW 5 Series,
• properly selected wire gauges and connectors compatible with factory sockets,
• organized wire routing in the door, which facilitates installation and subsequent service,
• reduced risk of installation errors compared to universal or custom-made harnesses.

As a result, the door harness from this series provides a safe and predictable foundation for restoring full electrical efficiency in the front body section.

Application in repairs and upgrades

The BMW front door wiring is suitable both for standard replacement of a damaged harness and for more extensive service work in the door area. It can be used, among other things, for:

• troubleshooting power or signal interruptions in the grommet between the pillar and the door,
• restoring the operation of electrical door functions after a collision or bodywork intervention,
• professional repairs of the installation following incorrect modifications or non-original alterations.

The harness is an item from the Doors and door panels category, which emphasizes its close connection to the door structure and its electrical equipment.

Installation characteristics and condition of the item

The product comes from disassembly, which means it is a used part that retains the original wire routing geometry and factory connectors. This type of solution is particularly beneficial in vehicles where compliance with the factory installation diagram and the ability to directly match existing body components is important. Installing the harness in the front part of the vehicle requires standard service procedures related to removing the door upholstery and accessing the grommets, however, using original wiring significantly simplifies the entire process.

Expanding work in the BMW door area

If you are planning a comprehensive repair or upgrade of the door zone in your BMW and need other elements from the same group, such as panels, reinforcements, or structural elements, check out the available parts in the BMW Doors and door panels category.
