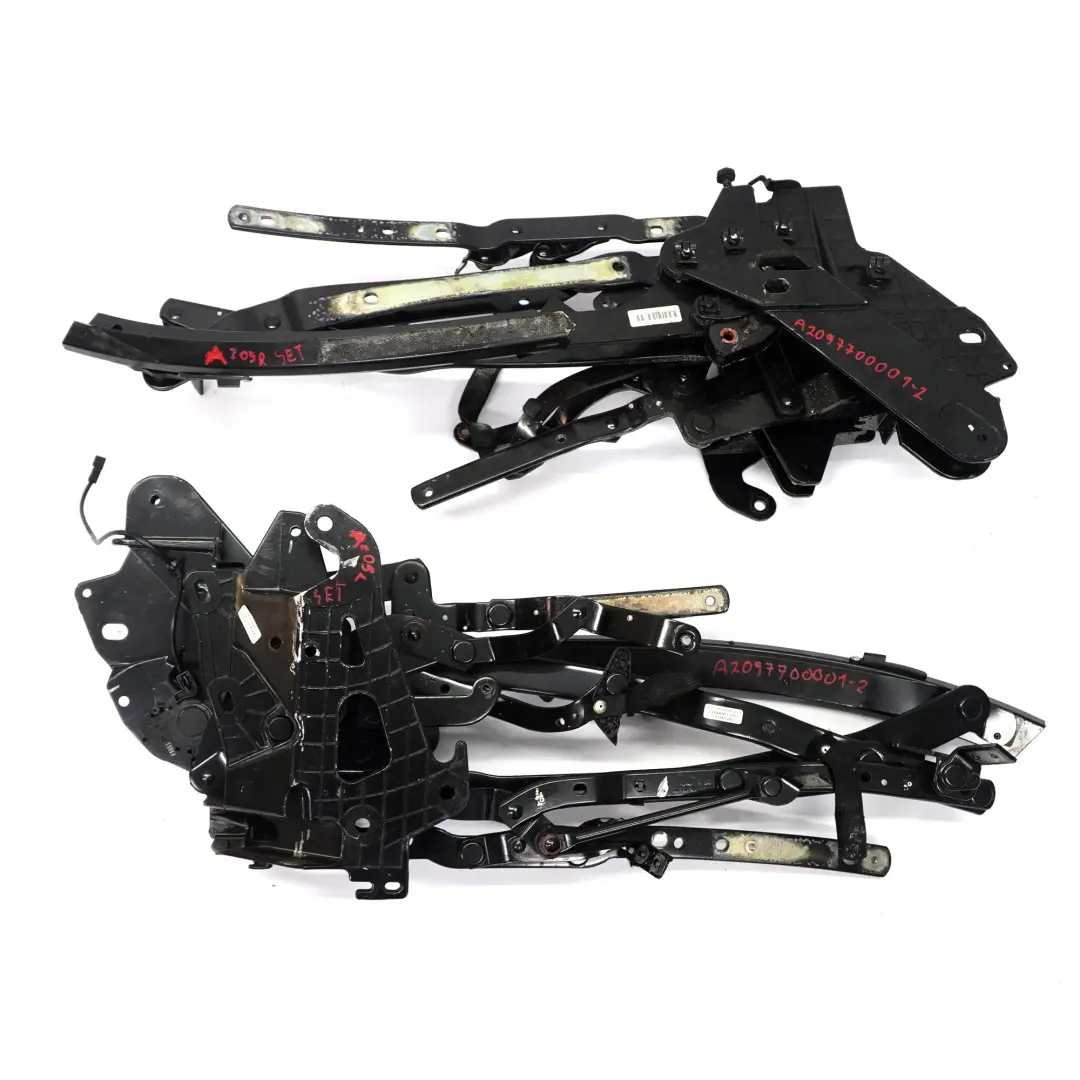

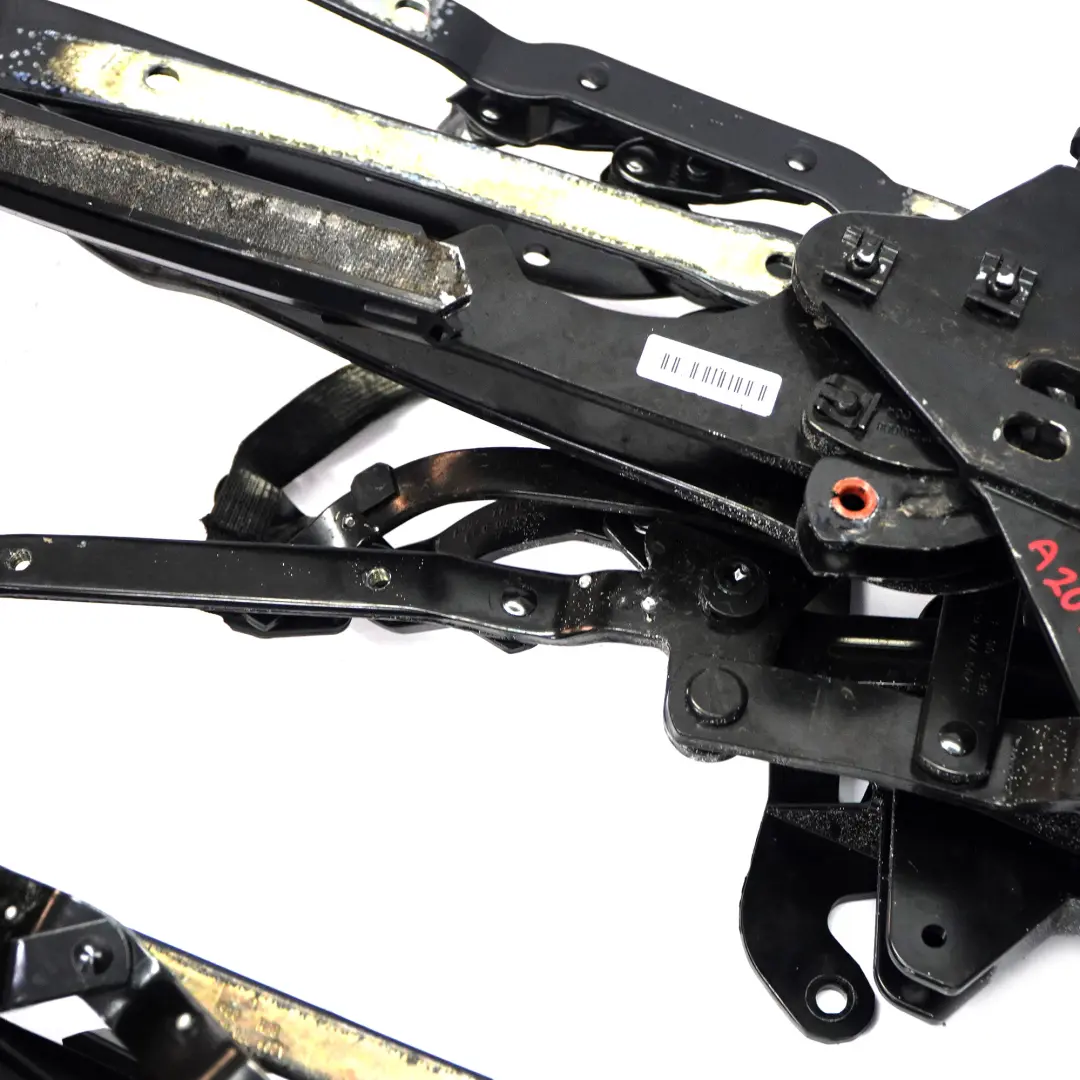

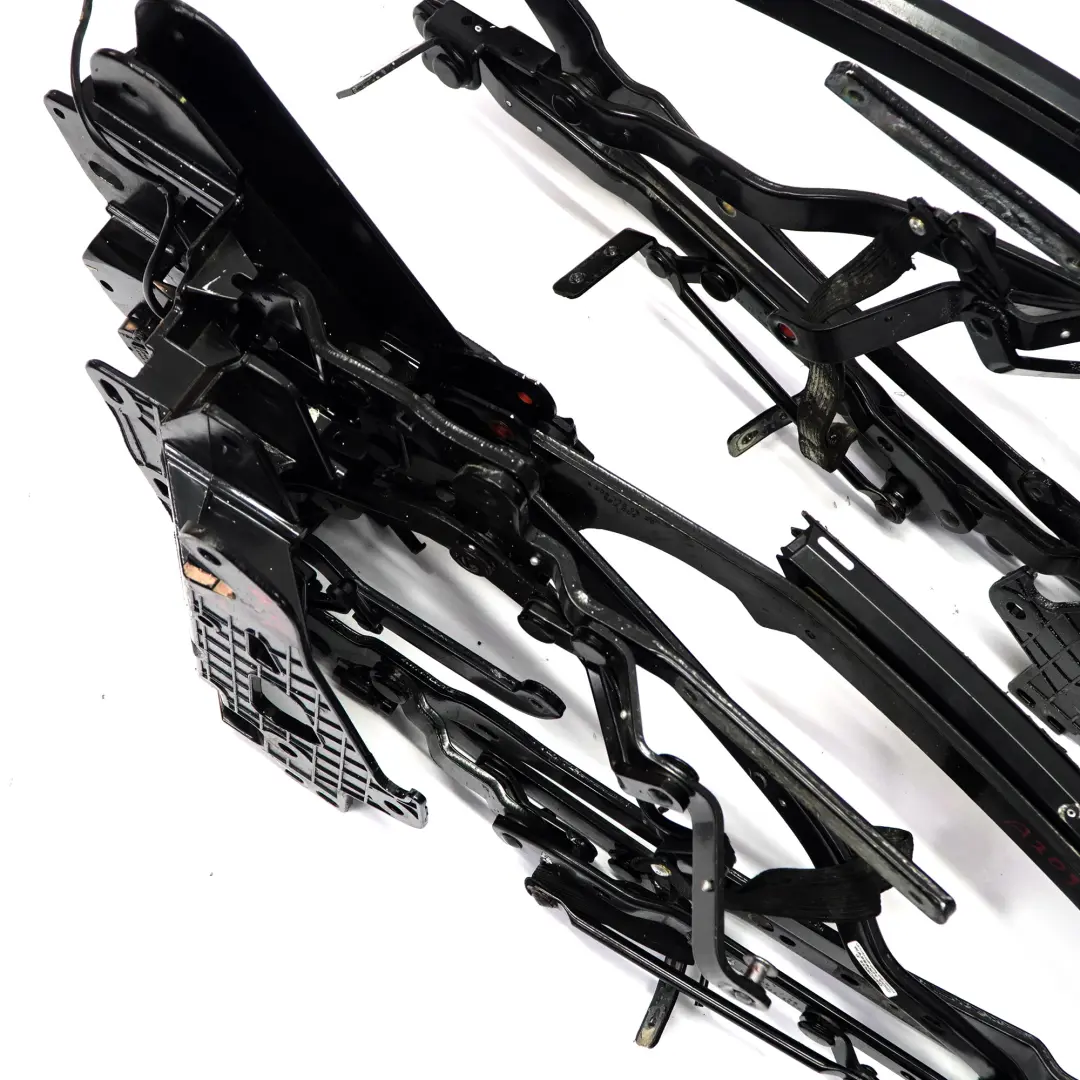

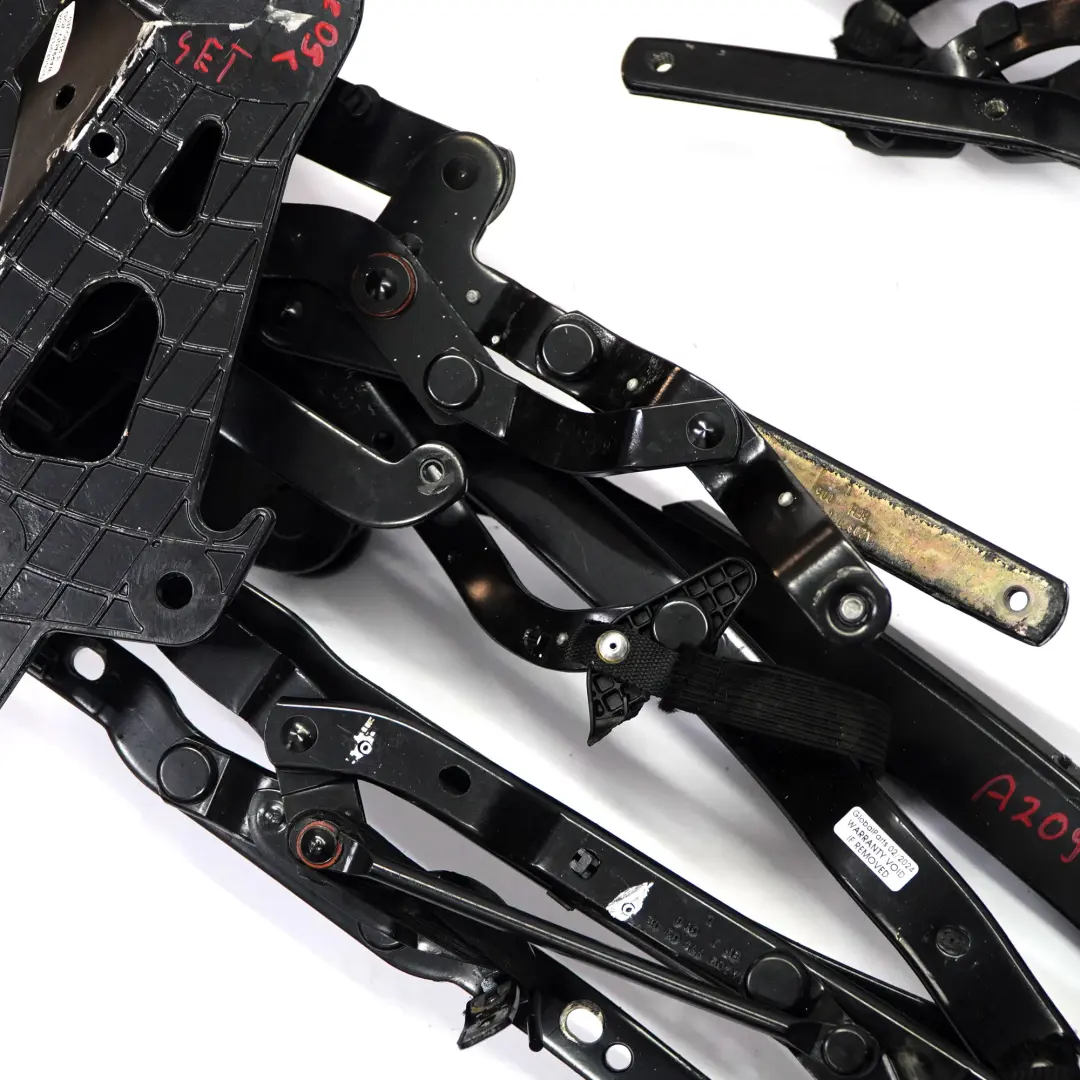

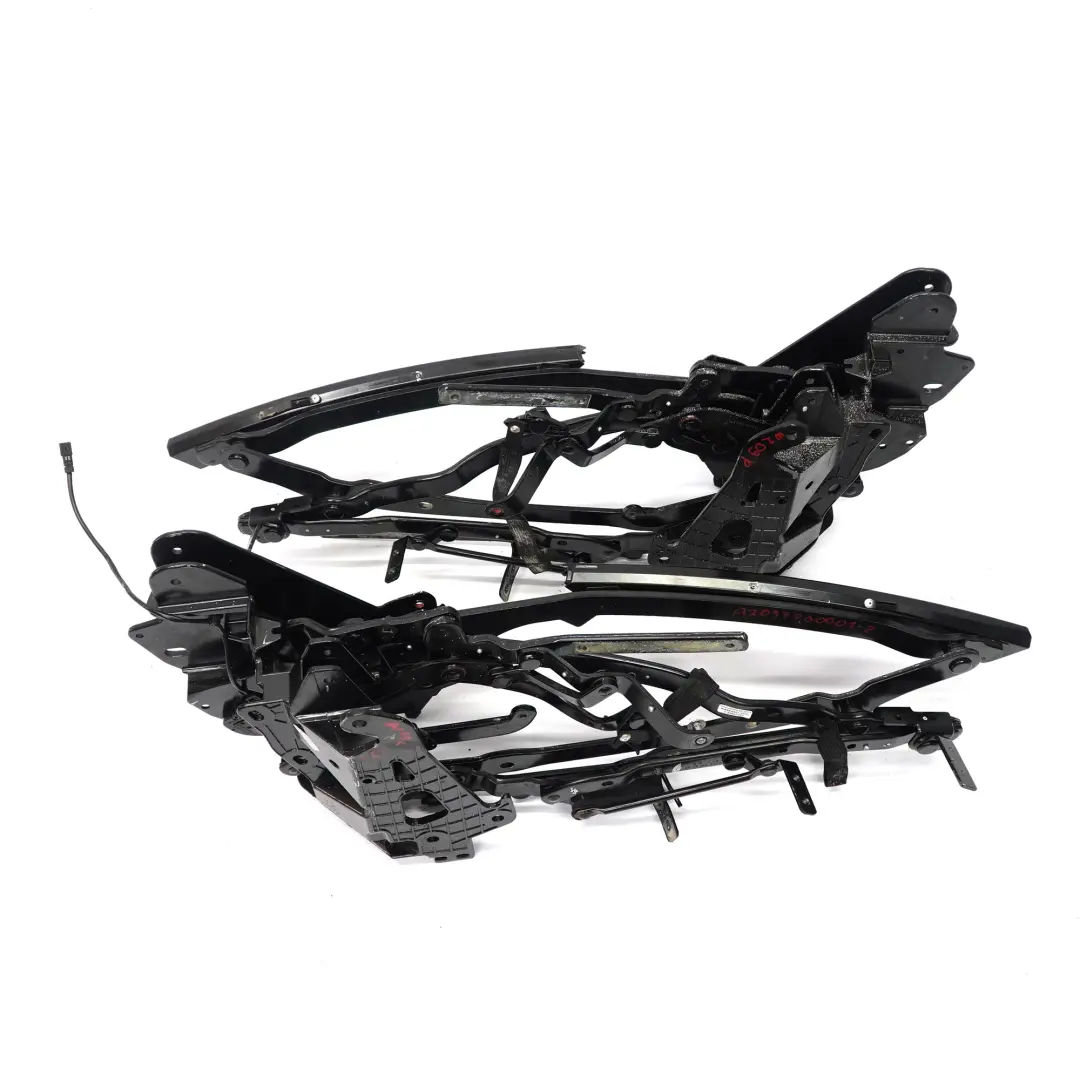

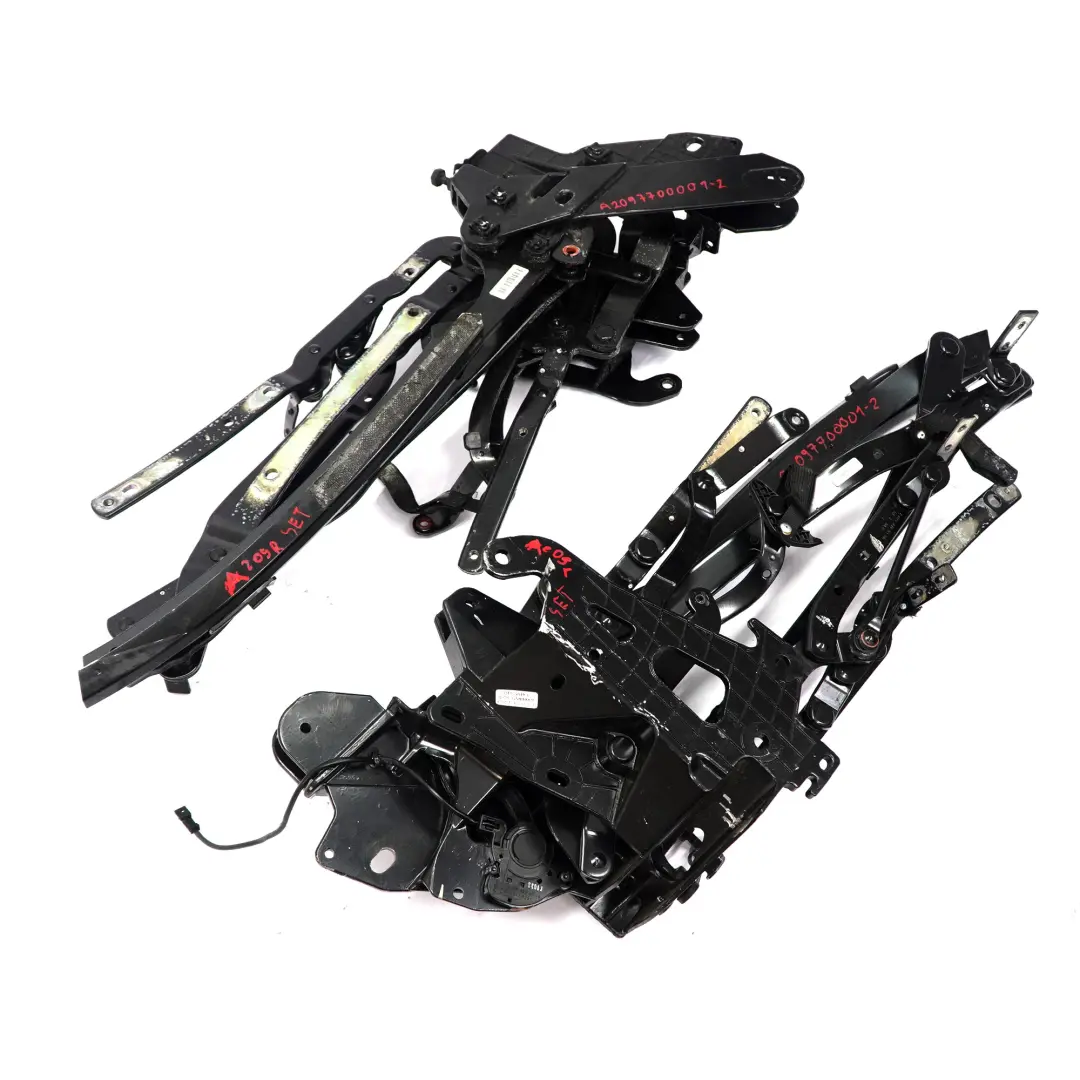

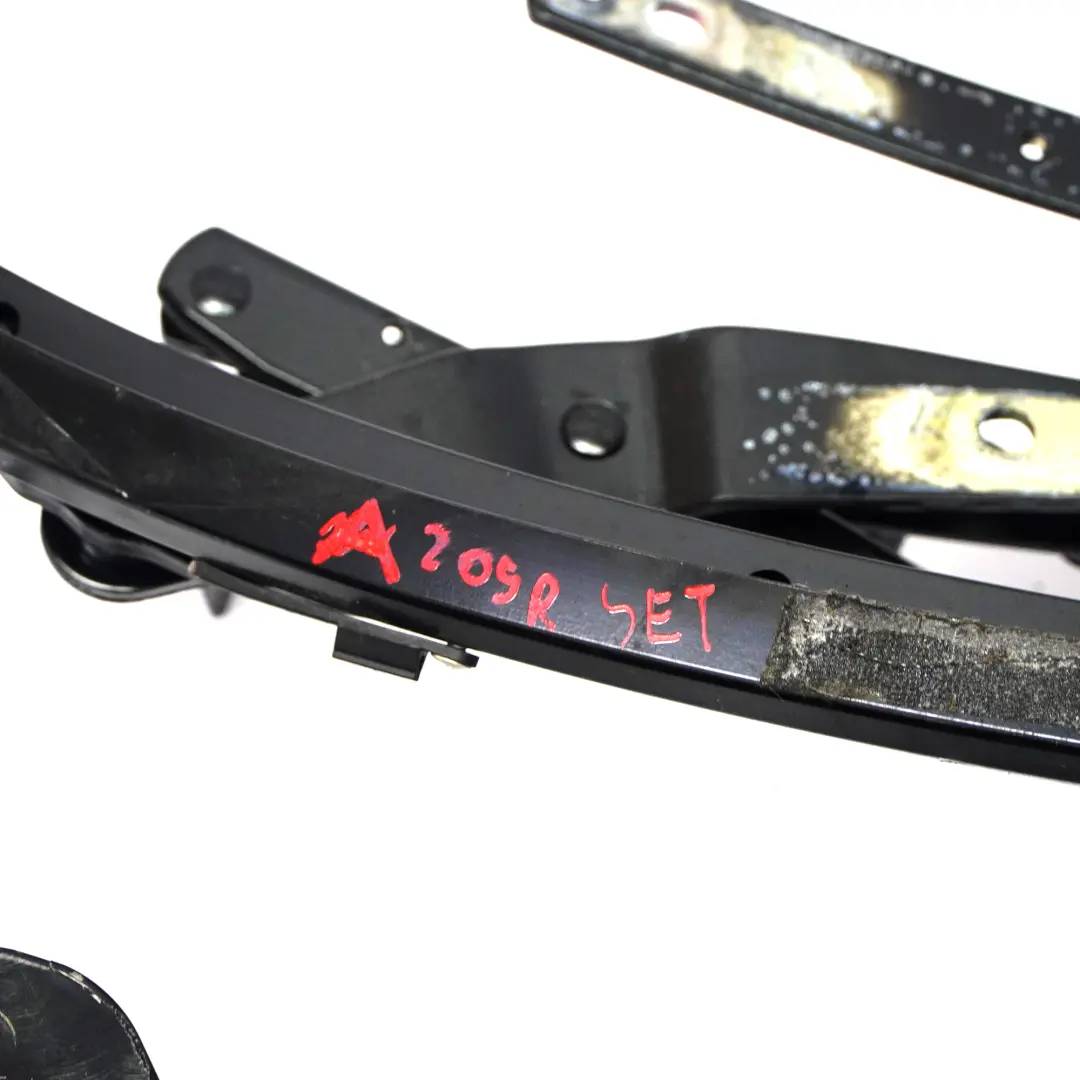

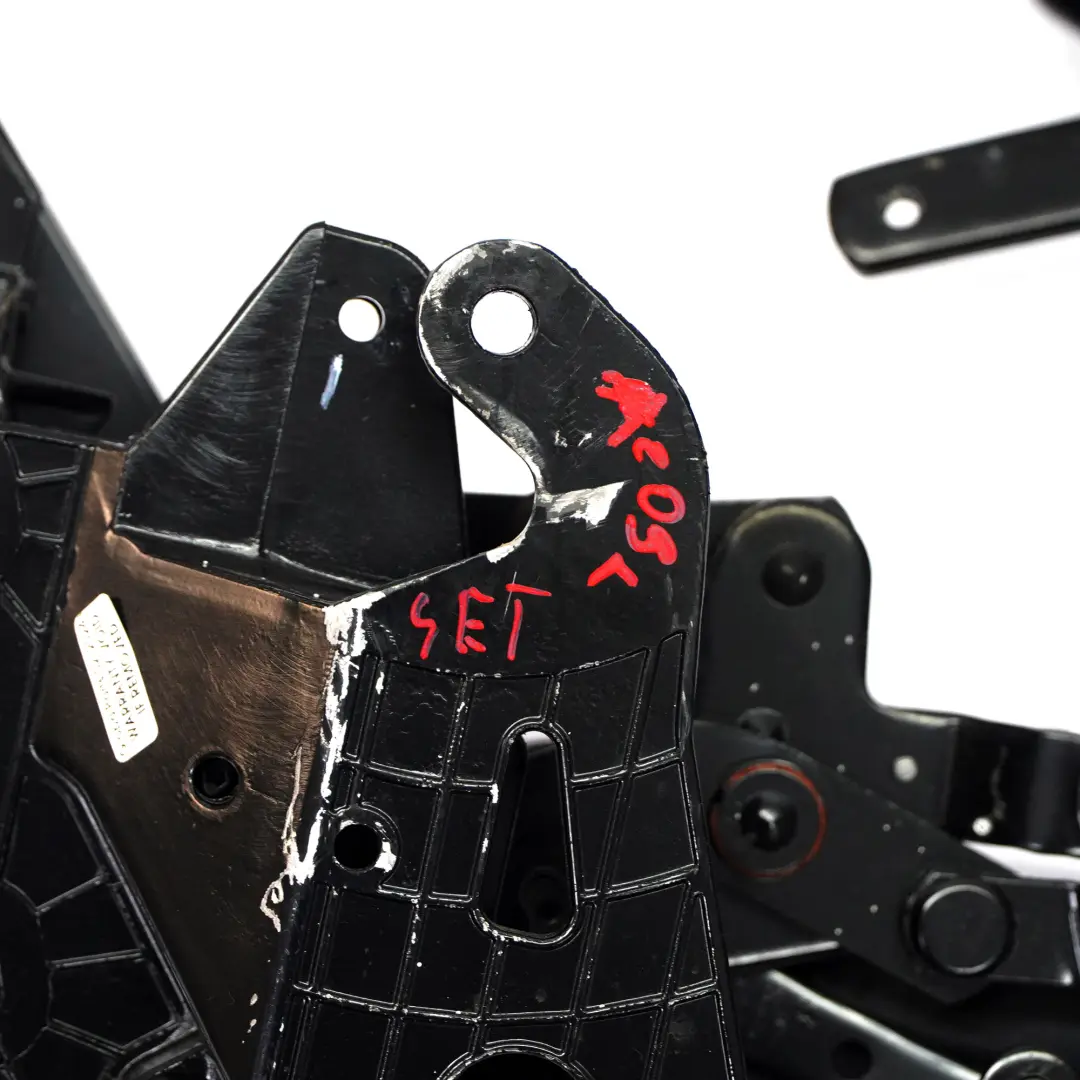

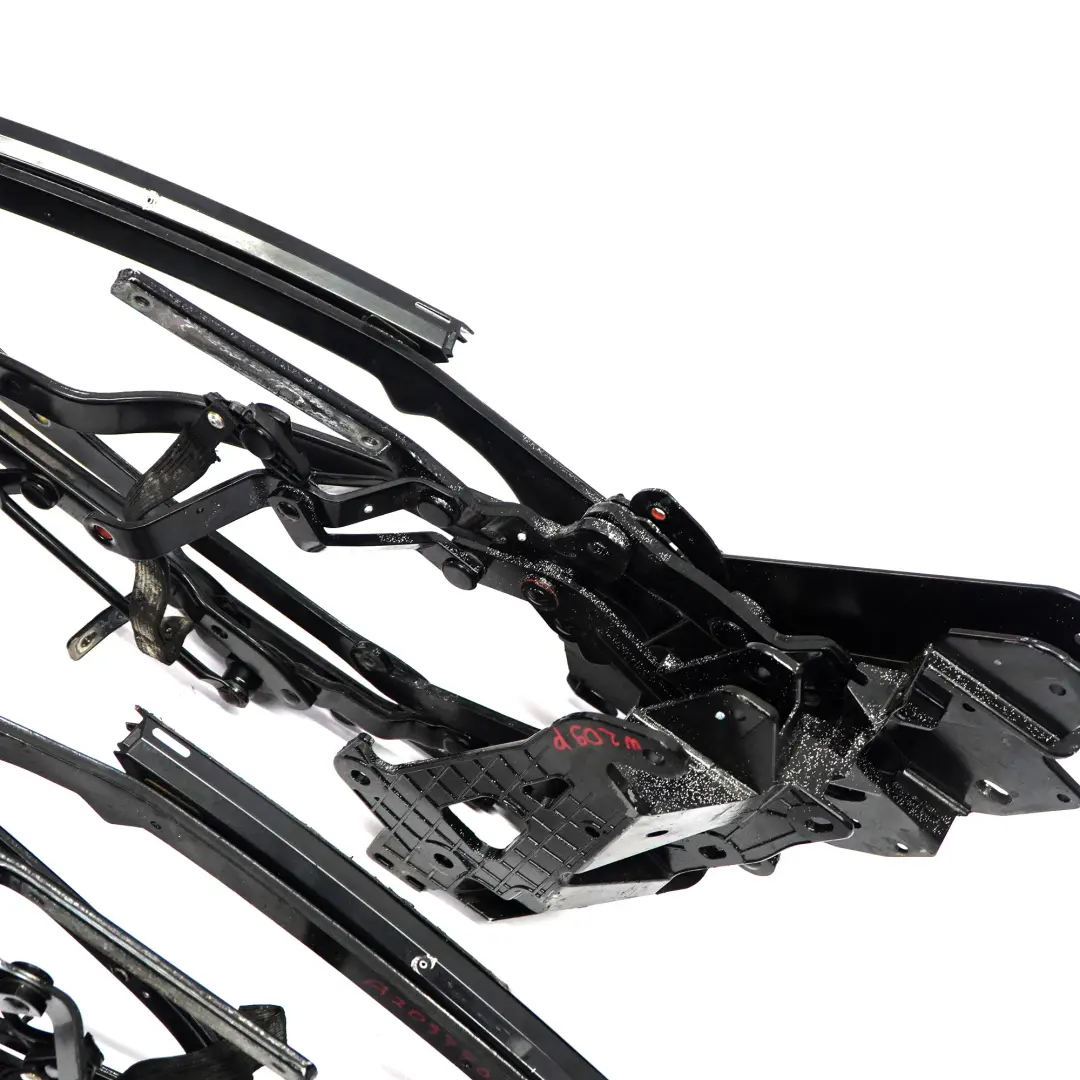

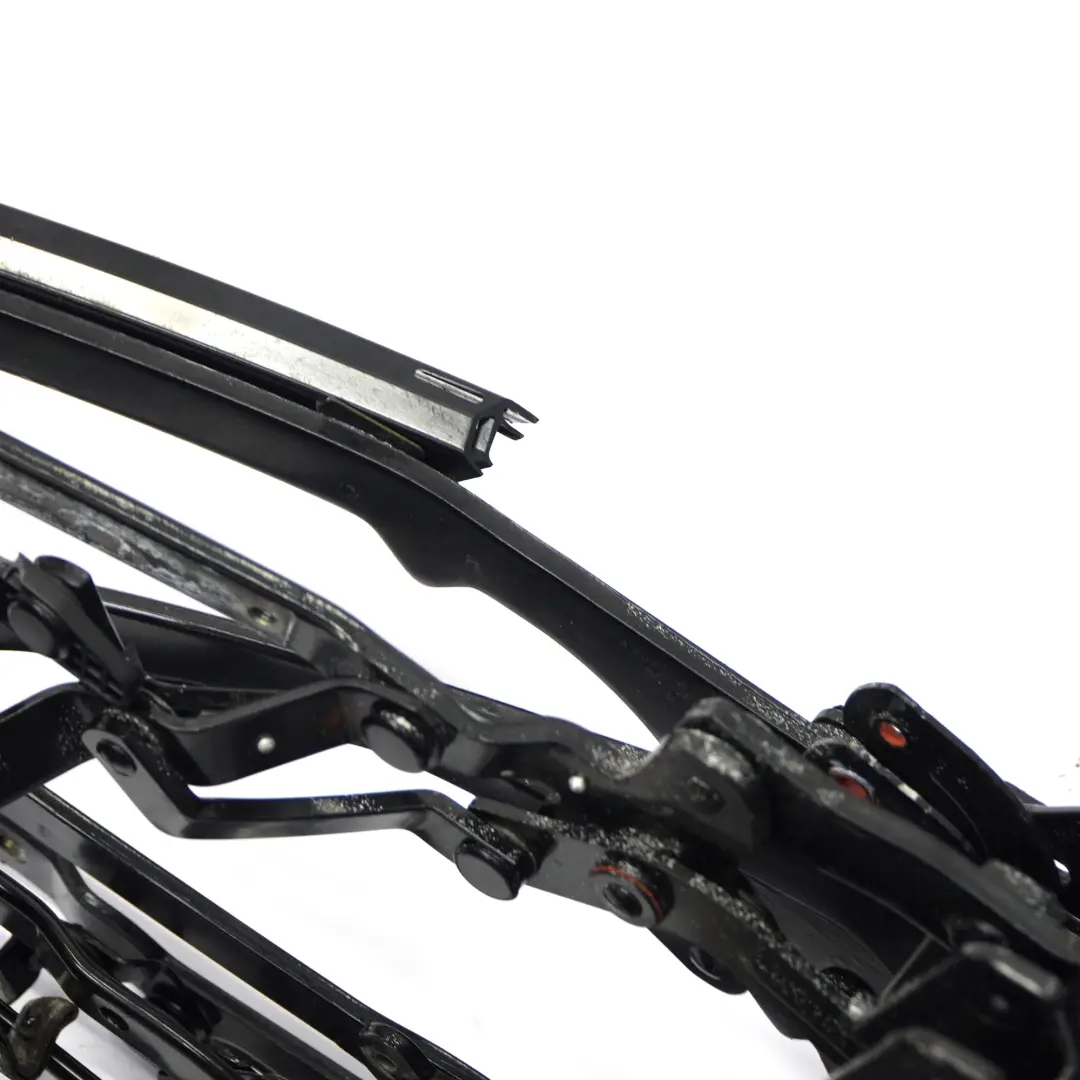

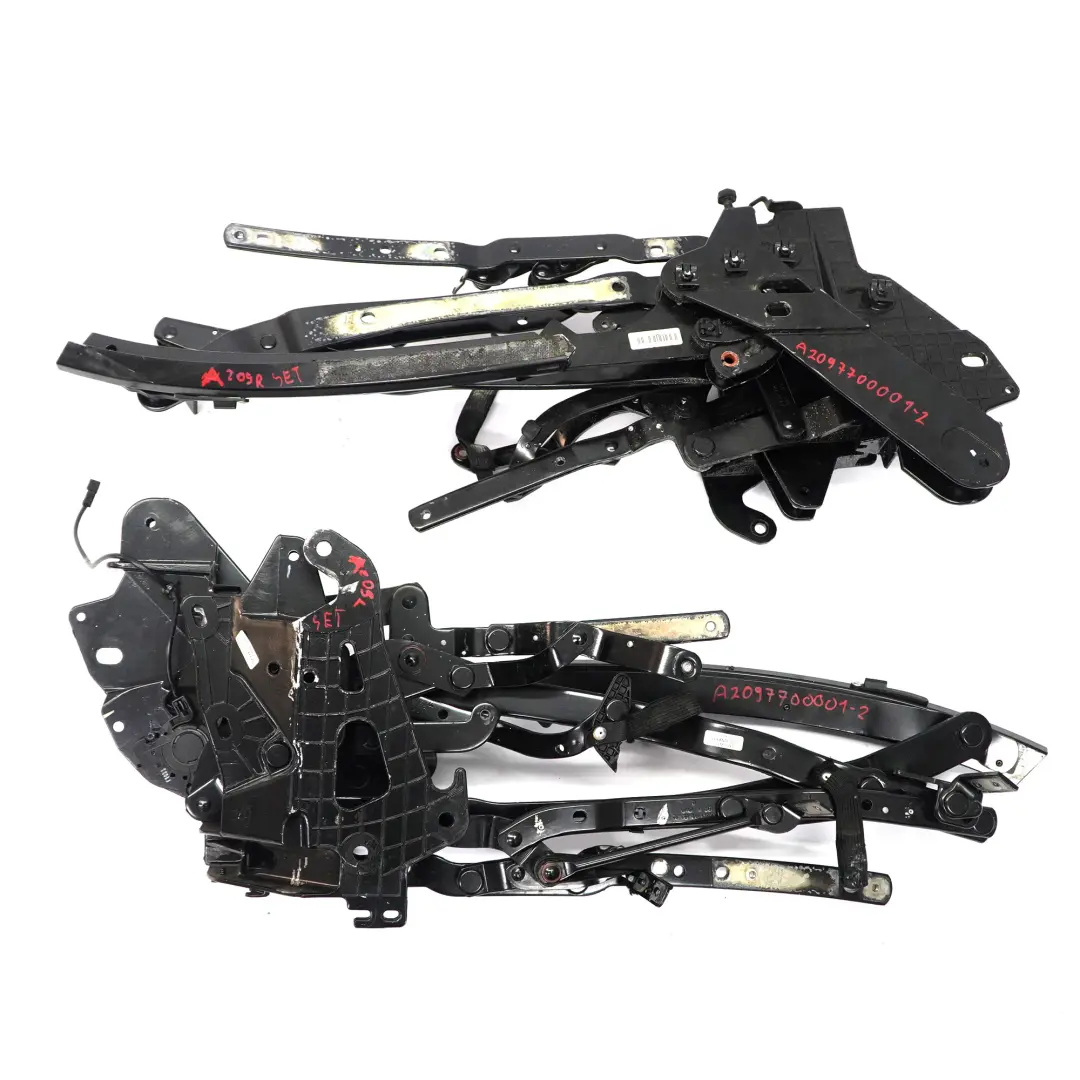

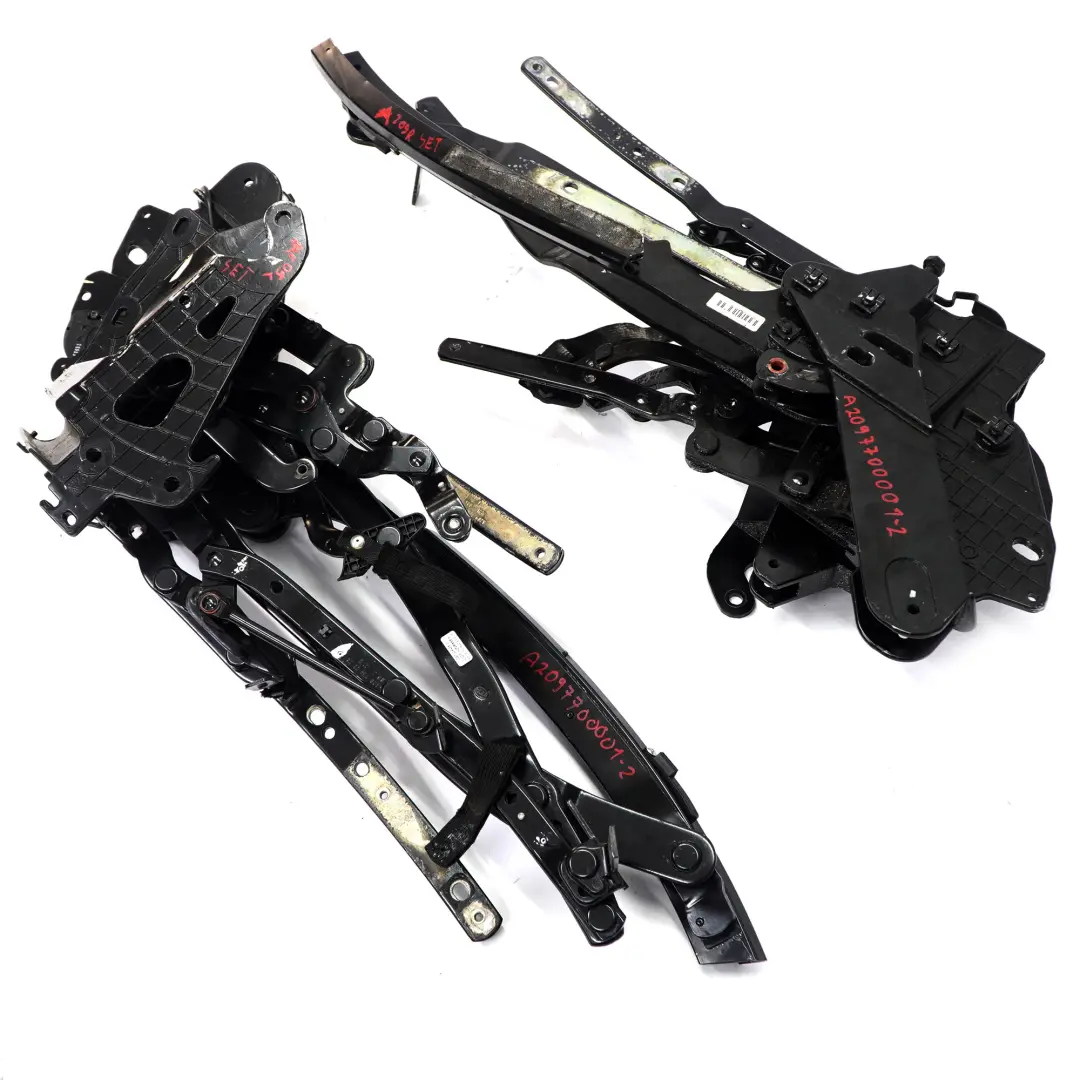

Mercedes A209 Cabrio Folding Top Left Right N/O/S Roof Mechanism Arm Hinge Set

Mercedes A209 Cabrio Roof Hinge Arm Mechanism Left Right Set is a set of folding roof mechanism components designed for Mercedes convertibles. The set includes the left and right side arms, allowing for a consistent, technically correct replacement of both sides of the system. This solution is for users who expect precise operation of the soft top and stable kinematics of the entire mechanism.

Specifications and technical data

• SKU: A2097700001-4
• Mark: Mercedes (Genuine OE)
• Condition: Used

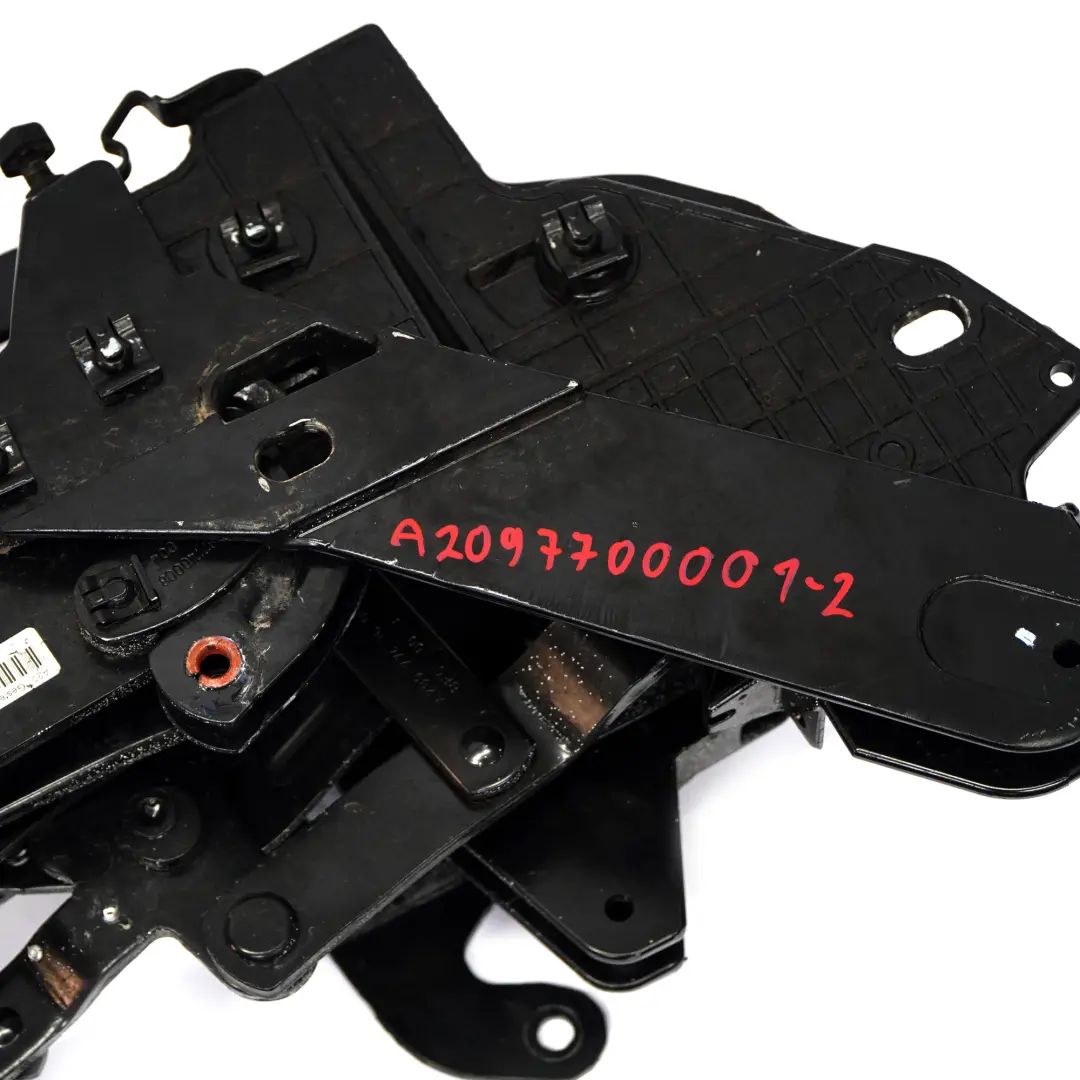

• OEM Part Number: A2097700001-2
• Substitutable numbers: A2097700001, A 209 770 00 01
• Location on the vehicle: Right, Left
• Category: Convertible Tops & Parts

Purpose and Function in the Roof System

The presented set of roof mechanism arms is a component of the Soft Tops for Convertibles and Parts category, responsible for guiding and supporting the structure of the folding cover. The hinges and arms work with other system components, ensuring the correct movement geometry, controlled folding, and unfolding of the roof in the Mercedes A-Class A209 series convertible.

The placement on the vehicle includes the left and right sides, which allows for maintaining symmetry in the mechanism's operation. This reduces the risk of misalignment, excessive stress, and uneven wear of other roof structure components.

Set Construction and Technical Aspects

The set of roof mechanism hinges and arms has been designed as part of the original kinematic system of the Mercedes convertible. The construction is based on precisely selected pivot points that transfer loads resulting from the roof's weight, wind forces, and actuator operation. The implemented design solutions allow for smooth guidance of the cover throughout its entire range of motion.

These elements work with the factory body mountings and other mechanism components, which helps maintain proper rigidity and repeatability of movement. The complete inclusion of the left and right sides facilitates servicing, as it eliminates the need to select individual parts with varying degrees of wear.

Benefits of Using the Original Set

Using a dedicated set of arms and hinges in a Mercedes convertible translates into several practical benefits:

• maintaining the factory operating geometry of the soft top,
• consistent operation of the left and right sides of the mechanism,
• reducing the risk of jams and improper roof closure,
• easier diagnostics and servicing for future inspections.

As a component from the Soft Tops for Convertibles and Parts group, this set is particularly important for repairs after mechanical damage, wear of guides, or restoring full roof functionality after previous incomplete repairs.

Condition, Fitment, and Practical Application

The offered set comes from the used parts group, allowing for economical restoration of the roof mechanism's functionality while maintaining the original construction. For many Mercedes convertible owners, this is a reasonable compromise between cost and compliance with the factory solution.

The complete inclusion of both sides of the mechanism facilitates installation in a specialized convertible service center. Dedicated placement on the vehicle (left and right side) minimizes the risk of installation errors and speeds up workshop operations, which is important for precise setting of the roof's end positions.

Support for Part Selection and Additional Information

If you are planning a comprehensive repair or upgrade of the convertible roof area in your Mercedes and need other parts from the same group, such as guides, mountings, or additional supports, check the available parts in the Mercedes Soft Tops for Convertibles and Parts category.

When choosing between new and used parts, it is worth analyzing the relationship between cost, durability, and the availability of specific components. It may be helpful to discuss the topic in the article Car Parts – New or Used? Comparing Costs, Quality, and Durability, which provides practical tips for selecting appropriate service solutions for various vehicle types, including convertibles.
